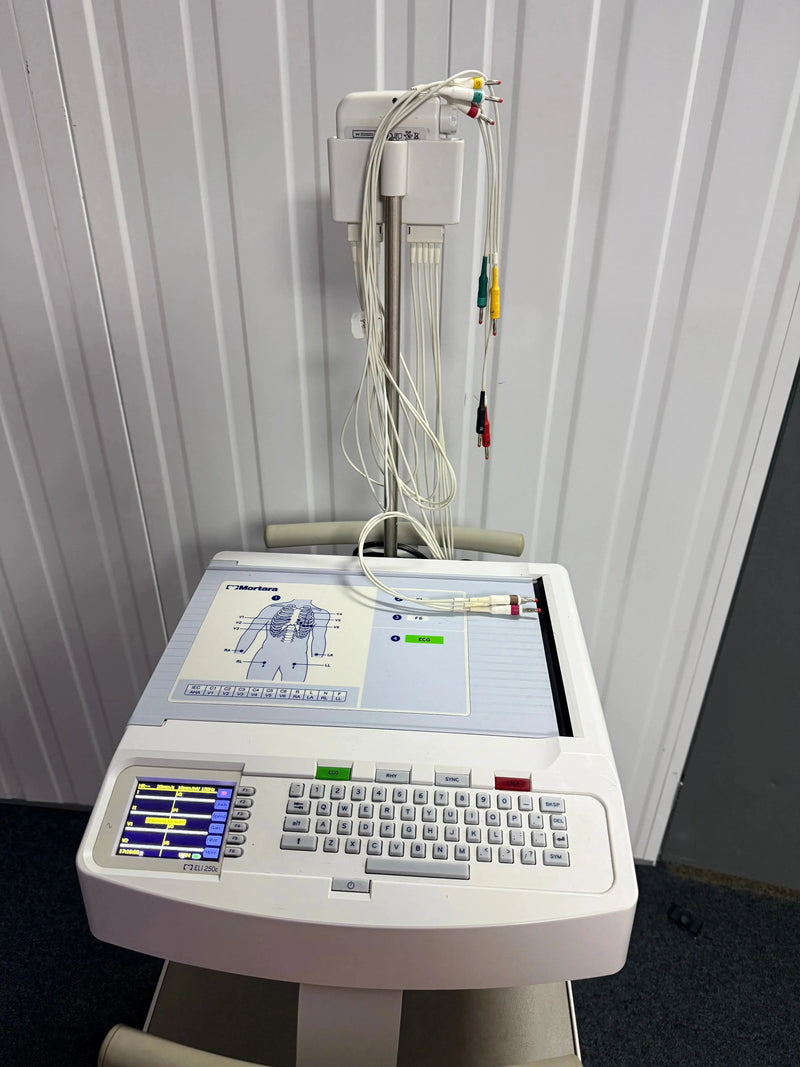

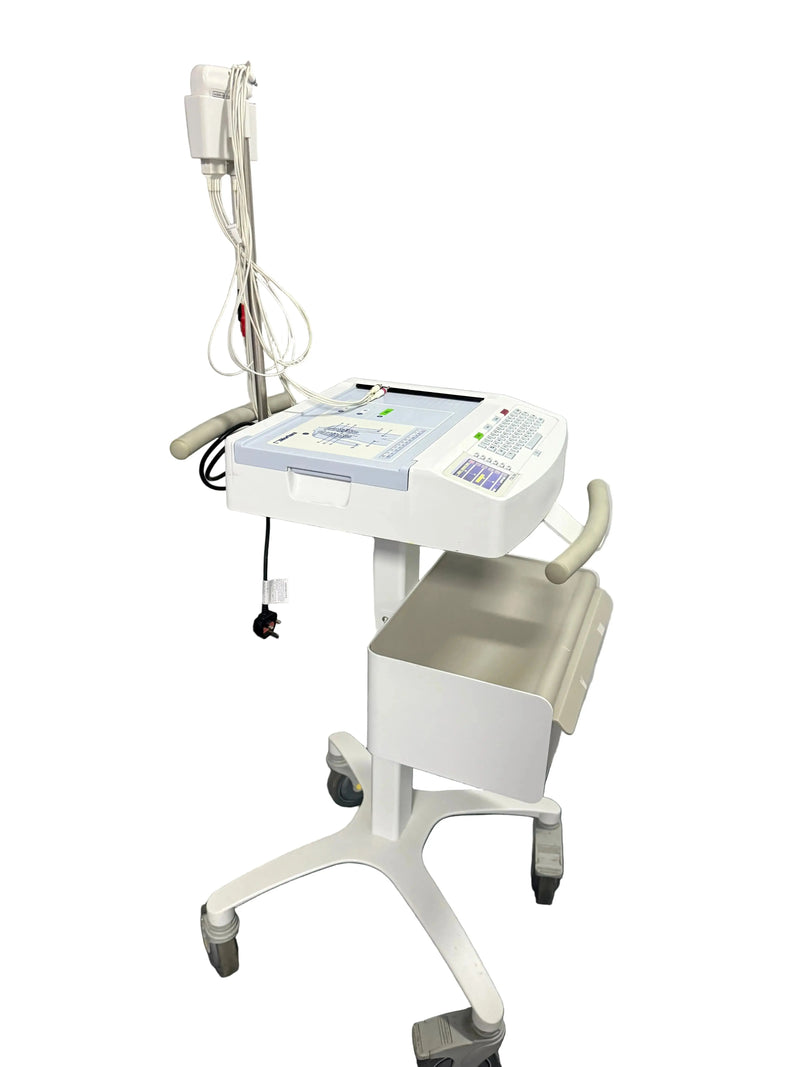

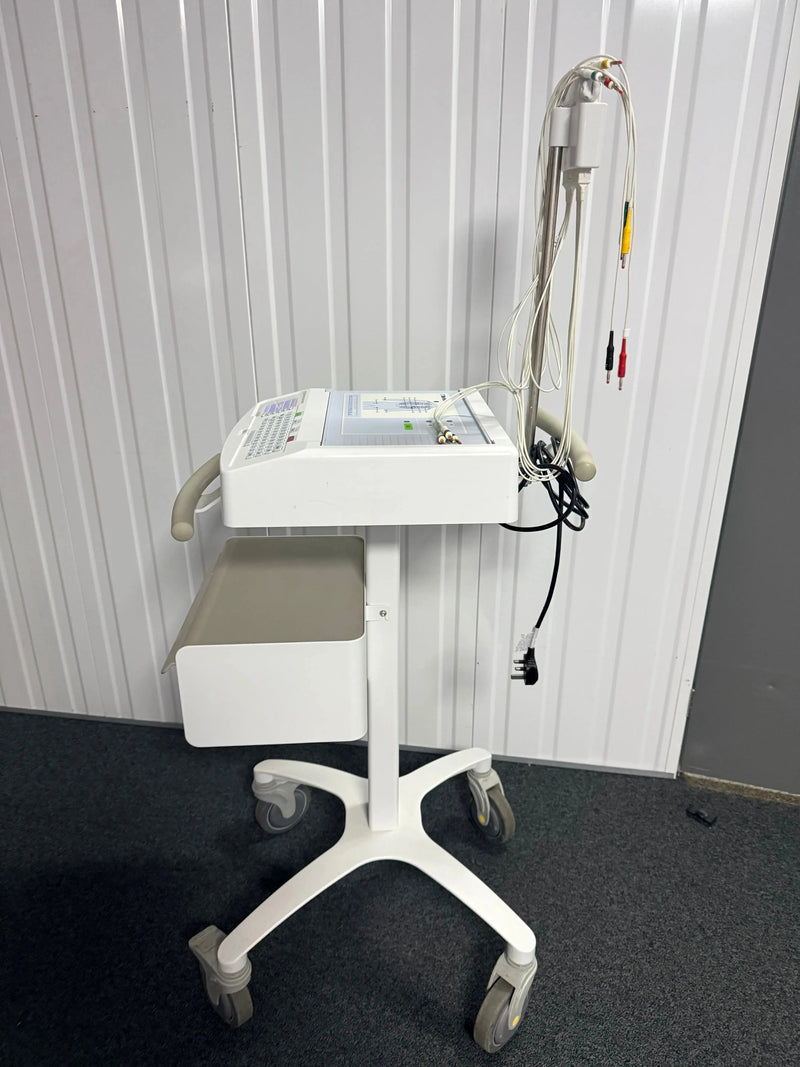

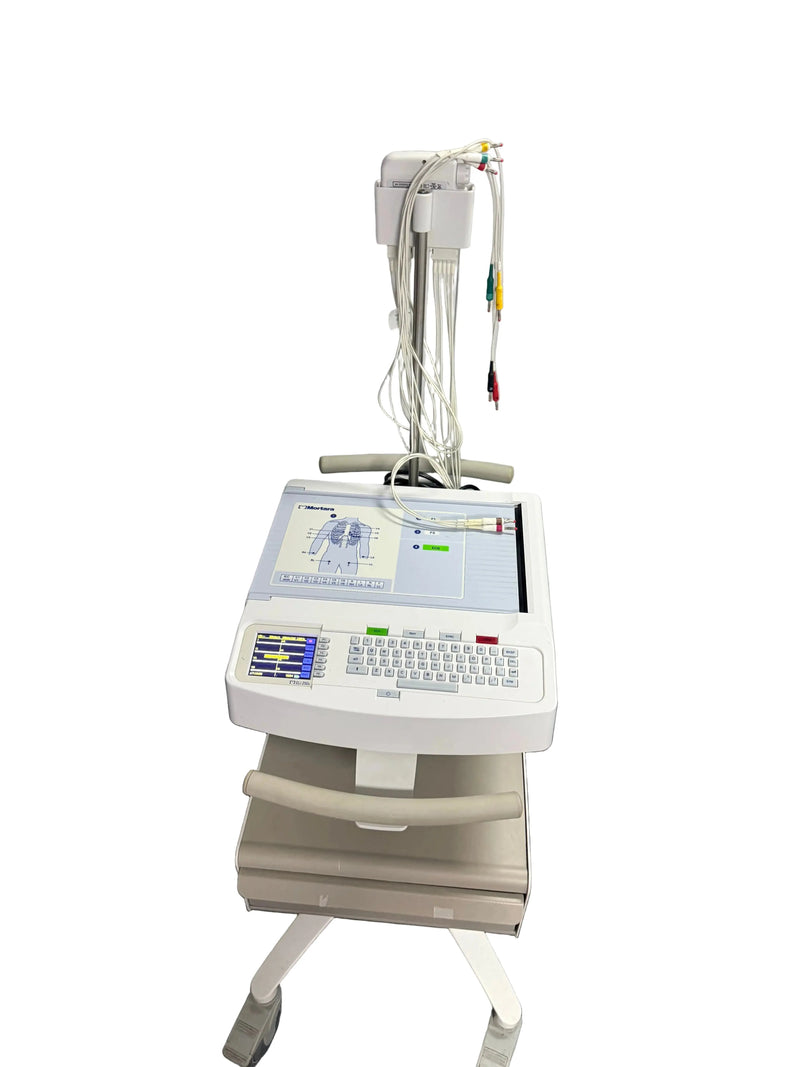

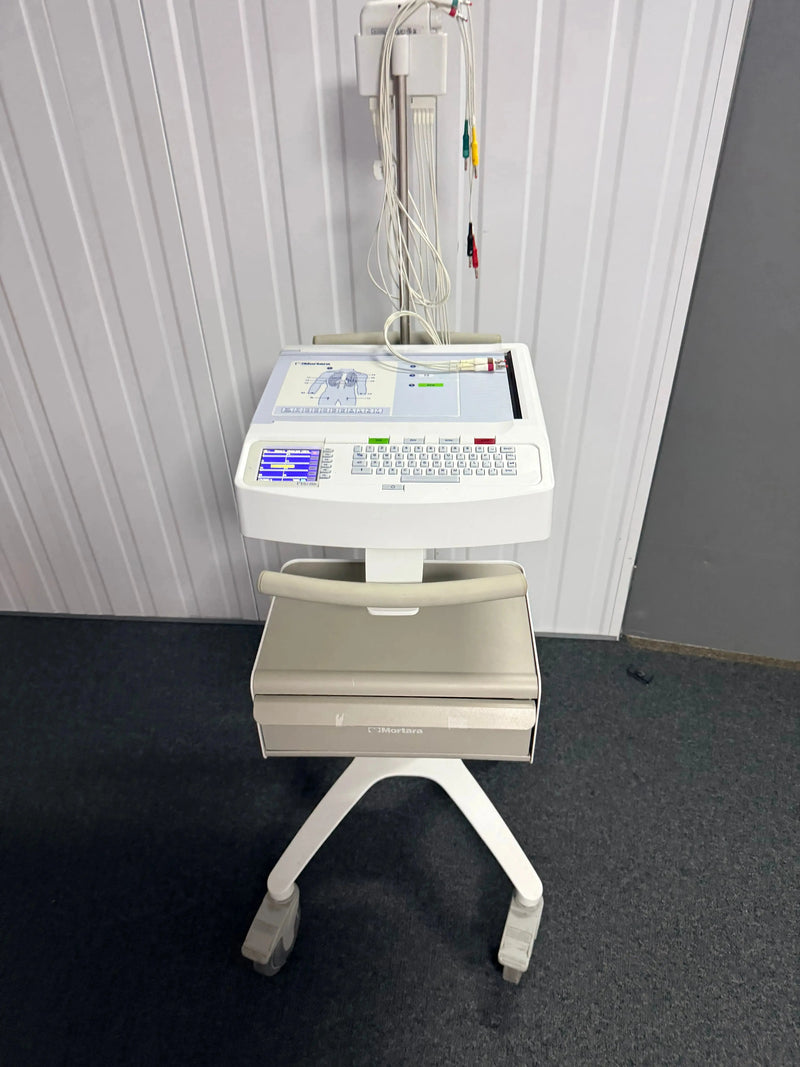

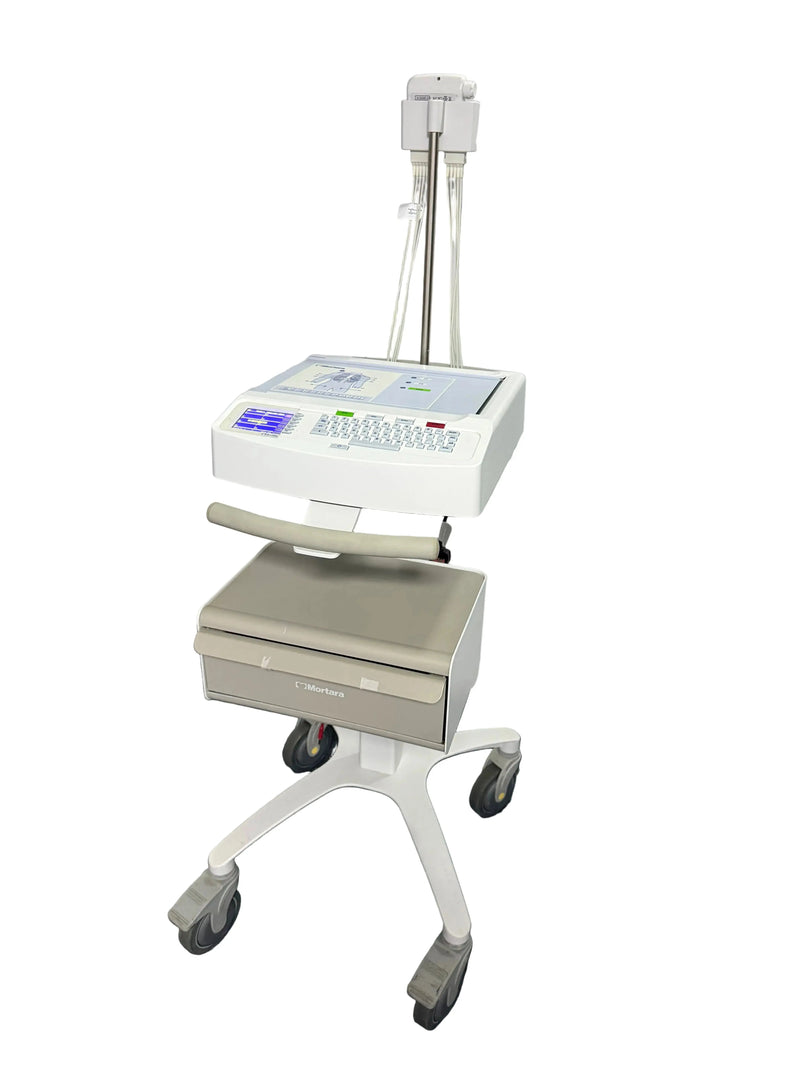

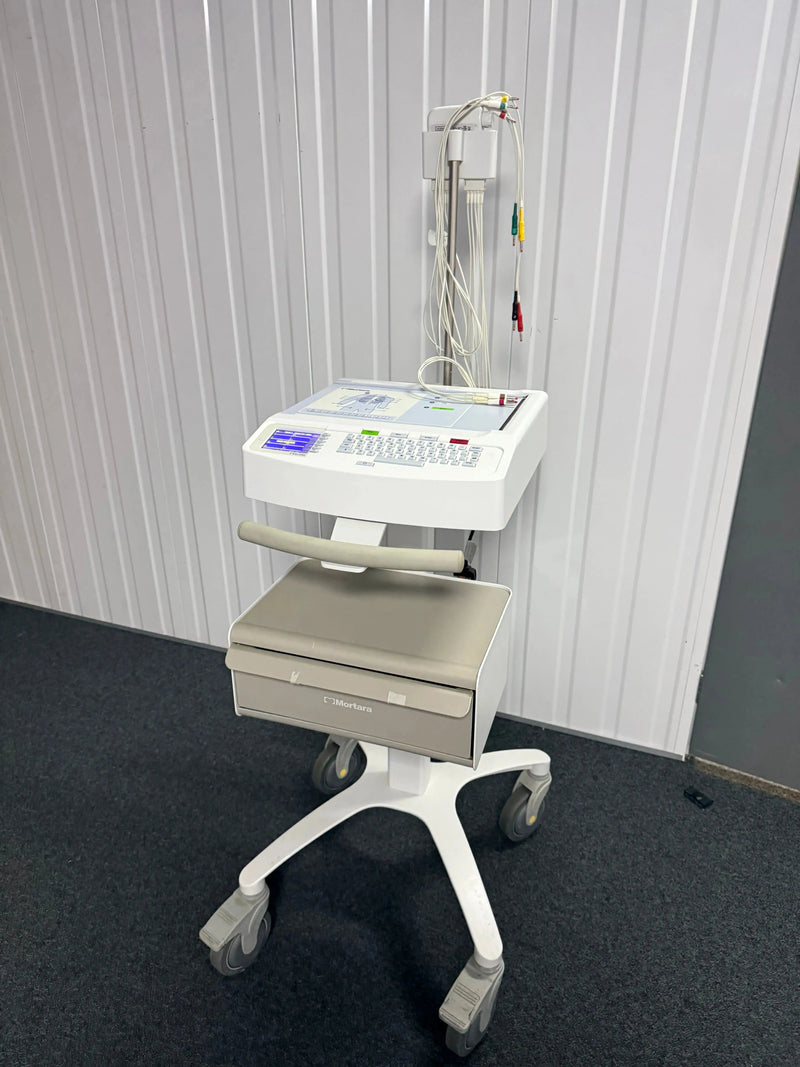

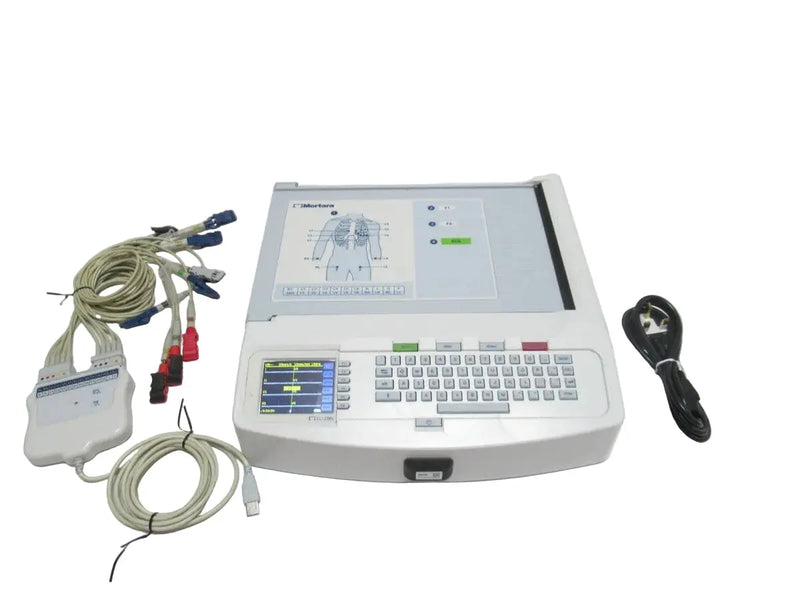

Mortara ELI250c ECG Machine with ECG Leads on Trolley
ECG Machine Mortara ELI 250c – Resting Electrocardiograph on Trolley
The ECG Machine Mortara ELI 250c is a compact, portable 12-lead resting electrocardiograph designed for efficient ECG acquisition, review, storage, and transmission in clinical environments. Supplied on a trolley with ECG leads, this system supports streamlined workflows across outpatient clinics, wards, and diagnostic departments.
The ELI 250c features a high-resolution colour display that enables real-time 12-lead preview and post-acquisition review. Integrated connectivity options allow bidirectional communication via internal modem, LAN, or wireless LAN with Mortara platforms such as E-Scribe™ and Athena™, as well as third-party EMR, HIS, and PACS systems using XML, PDF, and DICOM® formats. Best 10 technology captures the best 10 seconds of ECG data from system memory, reducing repeat recordings.
Wireless data acquisition options enhance workspace flexibility, while advanced signal processing supports pacemaker spike detection and lead reversal alerts to help reduce acquisition errors. The intuitive interface includes dedicated buttons for ECG acquisition, rhythm printing, and data transmission.
Key Features
-
12-lead resting electrocardiograph with trolley and ECG leads
-
High-resolution colour display for ECG preview and review
-
VERITAS™ interpretation algorithm with age and gender-specific criteria
-
Best 10 technology to minimise repeat ECGs
-
Pacemaker spike detection with high sampling rate
-
Lead reversal indicators for chest and limb leads
-

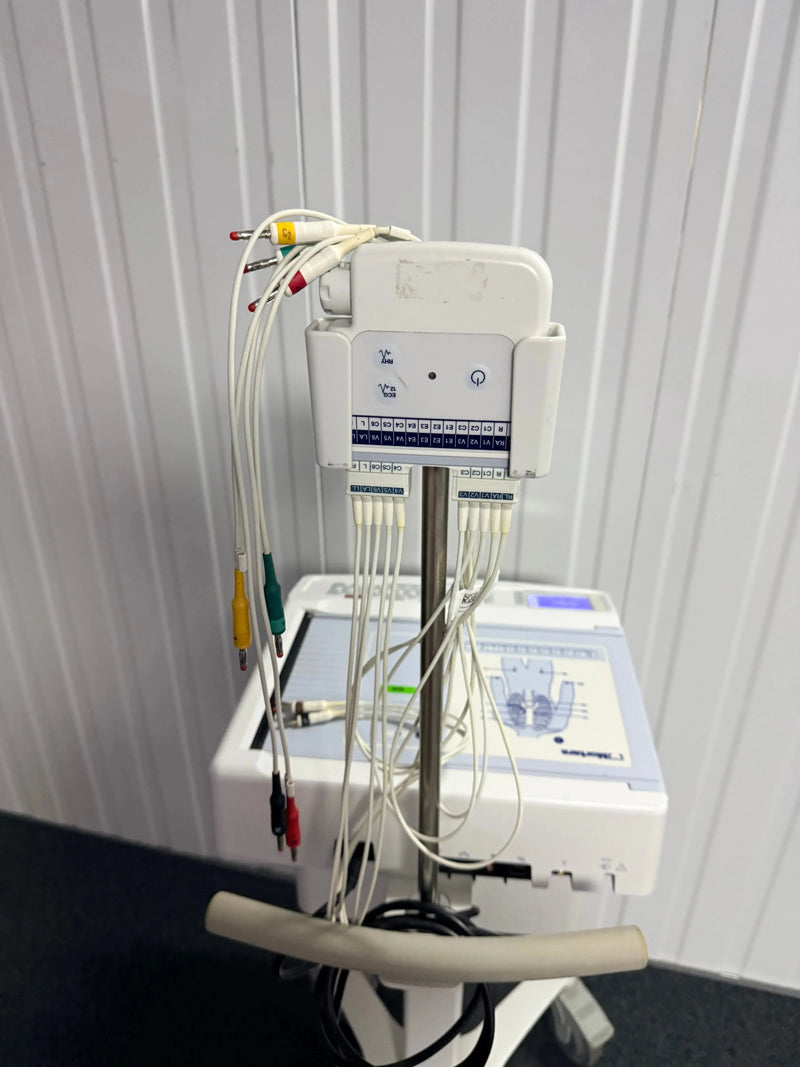

Wired or wireless acquisition module options
-
Bidirectional connectivity via modem, LAN, or WLAN
-
Compatible with EMR, HIS, and PACS systems
-
Integrated thermal printer with multiple print formats
Technical Specifications
| Specification | Details |
|---|---|
| Instrument Type | 12-Lead Electrocardiograph |
| Input Channels | Simultaneous acquisition of all 12 leads |
| Standard Leads | I, II, III, aVR, aVL, aVF, V1–V6 |
| Display | ¼ VGA colour LCD, 320 × 240 |
| Sampling Rate | 40,000 s/s/channel (pacemaker); 1,000 s/s/channel (recording/analysis) |
| Frequency Response | 0.05–300 Hz |
| Filters | Baseline, 50/60 Hz AC, low-pass 40/150/300 Hz |
| A/D Conversion | 20-bit (1.17 µV LSB) |
| Gain Settings | 5, 10, 20 mm/mV |
| Printer | Thermal, Z-fold paper A4 or 8.5 × 11 in |
| Storage Capacity | Up to 40 ECGs standard, optional up to 200 |
| Device Classification | Class I, Type CF, defibrillation-proof |
| Power Supply | 100–240 VAC, 50/60 Hz; internal rechargeable battery |
| Dimensions | 39.4 × 43.2 × 10.2 cm |
| Weight | Approx. 5.1 kg (with battery, without paper) |
