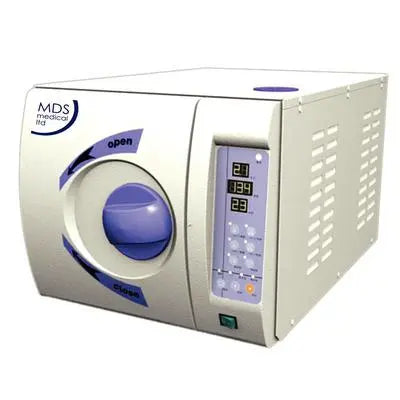

MDS LF-8L Steam Sterilizer
MDS LF-8L Class B Steam Sterilizer Autoclave
The MDS LF-8L is a compact Class B bench-top steam autoclave designed for the sterilisation of wrapped and unwrapped instruments in dental, podiatry, chiropody, tattoo and piercing, beauty and veterinary settings. Class B certification means it is capable of processing all load types including solid, hollow and porous instruments in both wrapped and unwrapped configurations, in compliance with BS EN 13060. An auto-run function initiates the full sterilisation cycle with minimal user input, and adjustable sterilisation time allows the cycle to be configured for different load types.
A quick cycle and temperature-holding function between runs maximise throughput during busy clinical sessions. B&D and Helix test cycles verify sterilisation performance. An LCD display with built-in printer provides a permanent cycle record for compliance and audit purposes. At 8 litres capacity, the LF-8L is the smallest model in the MDS range and is well suited to low to medium-volume clinical and professional environments. Compliant with MDD 93/42/EEC, BS EN 13060, HTM 01-05 and pressure equipment directive 97/23/EC.
Key Features
- Class B autoclave - processes all load types including solid, hollow and porous instruments, wrapped and unwrapped; BS EN 13060 compliant
- Auto-run function - initiates and completes the full sterilisation cycle automatically with minimal user input
- Adjustable sterilisation time - configurable cycle timing to suit different load types and instrument materials
- Quick cycle - fast turnaround for busy clinical sessions
- Maintains temperature between cycles - reduces waiting time between consecutive runs; improves throughput
- B&D test and Helix test cycles - verifies steam penetration and sterilisation performance; meets HTM 01-05 requirements
- LCD display - clear cycle status and programme information throughout the run
- Built-in thermal printer - generates a permanent printed cycle record for compliance and audit documentation
- Mechanical and electrical door lock - dual locking system prevents door opening during pressurised cycle
- Safety functions - overheat, overpressure and low water level protection
- Multi-language interface - suitable for international clinical use
- Compact bench-top footprint - smallest model in the MDS range; suited to low to medium-volume environments
- Sterilises wrapped and unwrapped instruments - full Class B load range in a single compact unit
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | MDS Medical |
| Model | LF-8L |
| Autoclave class | Class B |
| Chamber capacity | 8 litres |
| Chamber dimensions (internal) | 320 mm deep x 170 mm diameter |
| Tray size | 130 x 255 mm (W x L) |
| Sterilisation temperature range | 105°C to 134°C |
| Max working pressure | 0.21 to 0.23 MPa |
| Power supply | 220V, 50Hz |
| Power consumption | 1.7 kW |
| Chamber material | Aluminium |
| Door lock | Mechanical and electrical |
| Display | LCD |
| Output | Built-in thermal printer and SD card |
| Standards compliance | BS EN 13060, HTM 01-05 |
| Certification | CE 0123, ISO 13485 |
| Regulatory compliance | MDD 93/42/EEC, Pressure Equipment Directive 97/23/EC |
Please note: Annual validation and PSSR 2000 inspection are recommended before and during clinical use. The MDS LF-8L requires distilled or demineralised water only. Use of tap water will void performance and may damage the chamber.
