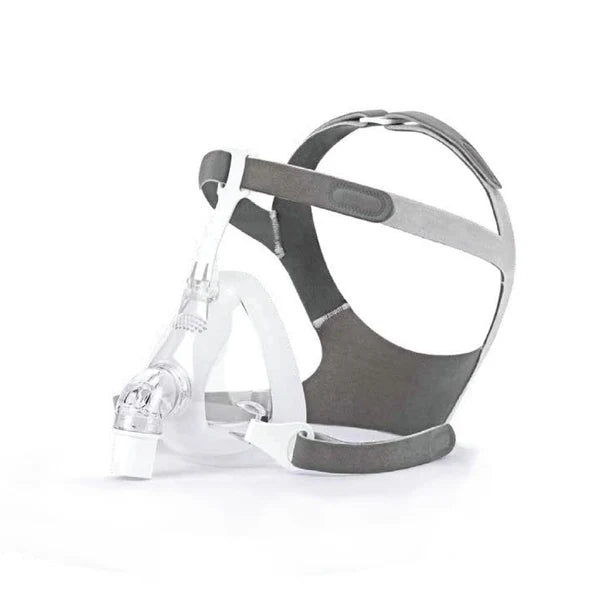

Heyer LuvOn F3 Full Face CPAP Mask
Heyer LuvOn F3 Full Face CPAP Mask
The Heyer LuvOn F3 is a traditional full face CPAP mask designed for patients requiring continuous positive airway pressure or bilevel therapy who breathe through their mouth during sleep, experience nasal congestion, or require higher therapy pressure settings. Covering both the nose and mouth with a full face silicone cushion and an adjustable forehead support, the F3 delivers a stable, consistent seal across a wide therapy pressure range of 3 to 40 cmH2O. The integrated anti-asphyxia valve adds a layer of safety by allowing room air to be breathed if the CPAP device is not in operation. A 360-degree swivel elbow and six-point adjustable headgear provide freedom of movement and a personalised, secure fit. Available in three sizes, it is suitable for single-patient reuse at home and single-use in hospital or institutional settings.
Key Features
- Traditional full face coverage - cushion seals over both nose and mouth for reliable therapy regardless of breathing pattern
- Adjustable forehead support - provides additional stability and helps distribute pressure evenly across the face
- Anti-asphyxia valve - opens automatically to allow room air breathing if the CPAP device stops operating
- 360-degree swivel connection - allows freedom of movement during sleep without pulling on the mask
- Ergonomic silicone cushion - contours to a wide range of facial structures for a secure, comfortable fit with minimal leakage
- Adjustable 6-point headgear - top, upper and lower straps with magic hook adjustment for a personalised, stable fit
- Quiet operation - sound power level less than 38 dBA at source, less than 30 dBA at 1 metre distance
- Wide therapy pressure range - 3 to 40 cmH2O accommodates the full spectrum of CPAP and BiPAP prescriptions
- Three sizes available - Small, Medium and Large with fitting template included
- Latex-free - no natural rubber latex, PVC or phthalates (DEHP, DBP)
- ISO 80601-2-70 compliant - compatible with all standard CPAP and bilevel devices meeting this standard
- Easy disassembly - cushion, forehead support, elbow assembly and swivel all separate quickly for daily cleaning
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Heyer Medical AG |
| Model | AF-03 |
| Mask type | Full face (nose and mouth) |
| Therapy pressure range | 3 to 40 cmH2O |
| Resistance at 50 L/min (valve closed) | ≤0.8 cmH2O |
| Resistance at 100 L/min (valve closed) | ≤1.5 cmH2O |
| Anti-asphyxia valve open pressure | ≤2 cmH2O |
| Anti-asphyxia valve closed pressure | ≤2 cmH2O |
| Inspiratory resistance with valve open (50 L/min) | ≤2 cmH2O |
| Expiratory resistance with valve open (50 L/min) | ≤2 cmH2O |
| Sound power level | Less than 38 dBA |
| Sound pressure level (1m) | Less than 30 dBA |
| Available sizes | Small, Medium, Large |
| Material | Medical-grade silicone, latex-free, PVC-free |
| Tubing connection | Standard 22mm with swivel |
| Operating temperature | 5°C to 40°C |
| Operating humidity | 10% to 90% non-condensing |
| Storage temperature | -20°C to 60°C |
| Patient weight | Adults over 30 kg |
Pressure-Flow Reference
| Pressure (cmH2O) | 3 | 4 | 5 | 8 | 10 | 12 | 15 | 18 | 20 | 23 | 26 | 30 | 35 | 40 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flow (L/min) | 19 | 22 | 25 | 32 | 37 | 41 | 47 | 52 | 55 | 59 | 63 | 69 | 76 | 82 |
Recommended Replacement Schedule (Home Use)
- Cushion assembly: every 1 month
- Headgear assembly: every 3 months
- Full mask: every 6 months
Please note: This mask is for single-patient reuse at home (up to 6 months) and single-use only in hospital or institutional environments (14-day cycle). Do not use bleach, alcohol, chlorine or scented cleaning products on any mask component.
