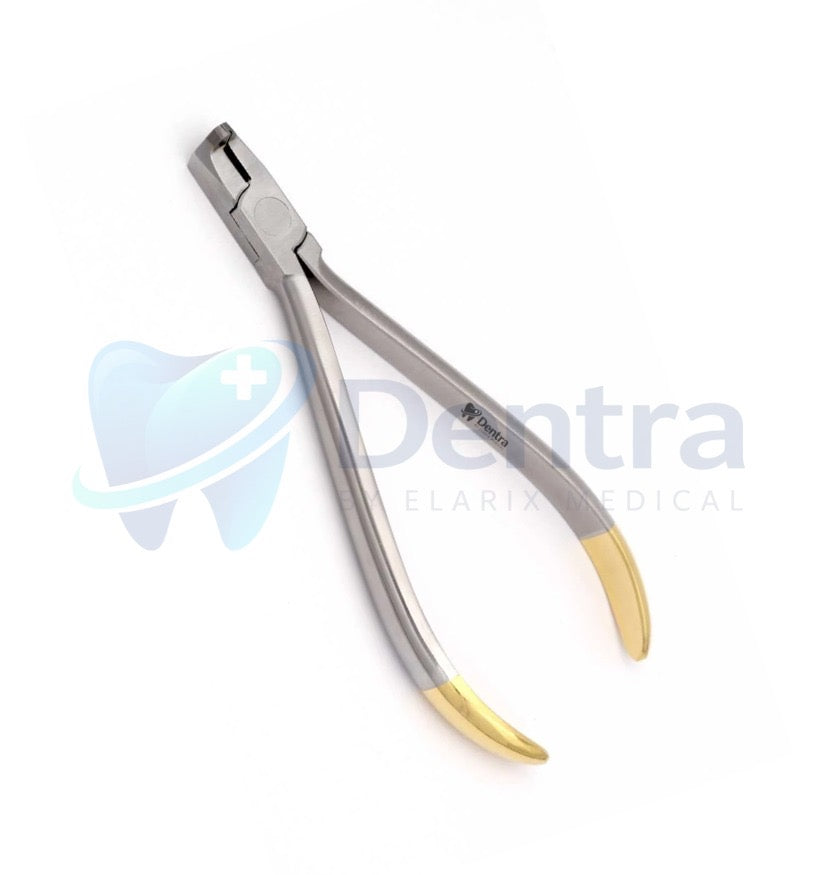

Dentra Orthodontic Distal End Cutter, Tungsten Carbide Inserts, Long Gold Handles
Elarix MedicalSKU DEN4002D
Price
£999
Price shown excludes VAT.
Unit price£9.99
Total£9.99
You save£0.00
Prefer a quote?
Frequently bought together
Add the whole set in one go.
Dentra Orthodontic Distal End Cutter, Tungsten Carbide Inserts, Long Gold Handles
£9.99
This item
Total for the set
£0.00
Key attributes
- Brand
- Elarix Medical
- Category
- Dental Equipment
- SKU
- DEN4002D
Dentra Orthodontic Distal End Cutter, Tungsten Carbide Inserts, Long Gold Handles
Dentra distal end cutter is a long handled orthodontic plier with tungsten carbide cutting inserts, for trimming the distal ends of archwires after they are seated in the brackets. Two design features do the work. Tungsten carbide inserts hold an edge far longer than steel alone, which matters because an archwire is hard and a cutter that dulls starts crushing wire rather than shearing it. Long handles put the pivot further from the hand, so less grip force produces a cleaner cut at the back of the arch and the operator's fingers stay clear of the patient's cheek. The gold finish on the handles is the conventional marking for a carbide tipped instrument, so it is identifiable at a glance on a crowded tray.
What is included
| Item | Detail | Condition |
|---|---|---|
| Dentra distal end cutter | One orthodontic distal end cutter with tungsten carbide inserts, long gold handles, REF 60201 | NEW |
What is not included
| Item | Detail | Status |
|---|---|---|
| Sterilisation | The instrument is supplied non-sterile | NOT INCLUDED |
| Other orthodontic pliers | Weingart, bird beak, ligature and bracket removal instruments | SOLD SEPARATELY |
| Hard wire cutters | Cutters for ligature wire and heavier gauge wire | SOLD SEPARATELY |
| Instrument tray or basket | Tray, wire basket and reprocessing consumables | SOLD SEPARATELY |
Cut within the rated wire capacity
- Distal end cutters are rated for a wire range. Cutting outside that range, or cutting hardened wire the instrument was not designed for, chips the carbide inserts and ends the working life of the cutter.
- Align the cutting edge square to the wire before applying pressure. Twisting during the cut bends the wire and damages the edge.
- Confirm the cut wire segment is retained by the instrument and accounted for before the plier leaves the mouth.
- This instrument is supplied non-sterile. It must be decontaminated and sterilised in line with the receiving practice's decontamination policy before any clinical use, including before first use.
- Inspect the cutting edges, the joint and the tip alignment before each use, and withdraw the instrument on any chip or misalignment.
Why a distal end cutter is a specific instrument
Once an archwire is engaged in the brackets, the ends project distally past the last buccal tube. Left long they catch the cheek, which is the single most common reason a patient calls the practice between appointments. Trimming them is a small job done at the back of the mouth with limited access and limited visibility.
A general wire cutter is the wrong tool for it. The head is too bulky to reach behind the molar tube, and the cut end flies off, which in the mouth means a sharp fragment loose in soft tissue or worse. A distal end cutter is built around both problems: a compact head that reaches the working position, and a retaining mechanism that grips the offcut as it is severed so it comes out of the mouth with the instrument. That safety hold is the defining feature of the pattern, not an optional extra.
Long handles then add leverage. The same cut takes less hand force, which reduces fatigue across a clinic list and gives more control at the moment the wire gives way.
Key features
Tungsten carbide cutting inserts, holding a sharp edge far longer than steel alone and shearing hard wire cleanly rather than crushing it.
Safety hold, retaining the cut wire segment so the offcut leaves the mouth with the instrument instead of dropping into soft tissue.
Long handles, giving greater leverage and control, and reducing hand fatigue across a full clinic list.
Compact head, reaching distal to the buccal tube where a general wire cutter cannot be positioned.
Gold finished handles, the conventional marking for a carbide tipped instrument, identifiable at a glance on a tray.
Clean cut ends, leaving a smooth wire end for patient comfort rather than a burr that catches the cheek.
Stainless steel body, reusable and suited to repeated steam sterilisation.
Dentra own brand from Elarix Medical, individually referenced as REF 60201 so reordering is by code rather than description.
Specification
| Brand | Dentra |
| Product | Orthodontic distal end cutter |
| Reference | 60201 |
| Function | Trimming the distal ends of archwires after bracket engagement |
| Cutting inserts | Tungsten carbide |
| Handles | Long, gold finish |
| Wire retention | Safety hold, retains the cut segment |
| Body material | Stainless steel |
| Reprocessing | Reusable, steam sterilisable |
| Supplied | Non-sterile, single instrument |
| Intended user | Suitably qualified dental professionals |
| Condition | New |
Wire capacity to be confirmed
The rated cutting capacity, overall length, head dimensions, joint type and the exact steel grade are not stated here pending confirmation against the production record and material certificate. Distal end cutters across the market are rated to different maximum wire sizes, and some are not suitable for very fine flexible wire, so the capacity should be confirmed before use on a particular wire. Ask before ordering if this figure is needed.
Reprocessing and care
| Stage | Action |
|---|---|
| Before first use | Remove all packaging, decontaminate and sterilise |
| Point of use | Rinse promptly so debris does not dry into the joint and the cutting head |
| Cleaning | Process per the practice decontamination policy, with the joint opened fully so the hinge is reached |
| Inspection | Check the carbide inserts for chipping, confirm the edges meet cleanly and the safety hold retains a test offcut |
| Lubrication | Apply instrument lubricant to the joint where the local policy requires it |
| Sterilisation | Steam sterilise per the validated cycle for the load, with the instrument in the open position |
| Storage | Store dry and protected, keeping the cutting head clear of contact with other instruments |
| Withdrawal | Remove from service on any chipped insert, misaligned edge, corrosion or a slack joint |
The above is general guidance. The practice decontamination policy and current national guidance on decontamination in primary care dental practices take precedence.
Dentra range
Dentra is the dental instrument range from Elarix Medical. Orthodontic pliers and cutters are supplied alongside extraction forceps by figure number across adult and children's patterns, and prosthodontic measuring instruments. Every item is individually referenced and barcoded, so a repeat order is placed against a code rather than a description.
