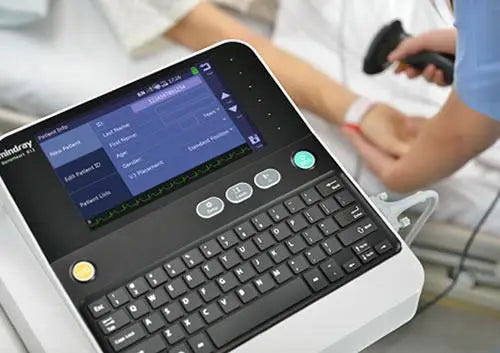

Mindray BeneHeart R12 ECG Recorder on Trolley
Mindray BeneHeart R12 12-Lead ECG Machine on Trolley
The Mindray BeneHeart R12 is a compact, high-performance 12-lead electrocardiograph designed for fast, accurate resting ECG acquisition and analysis in clinical, hospital and GP practice environments. One of the lightest machines in its class at 4.9 kg, it boots in 7 seconds and delivers 10 seconds of simultaneous pre-acquisition data from the moment it powers on. The internationally validated Glasgow analysis algorithm provides automated interpretation for both adults and paediatric patients from birth. An 8-inch high-resolution colour display with 800 x 400 resolution offers full on-screen report preview before printing, with an optional touchscreen configuration. The built-in thermal printer supports all standard ECG print formats, and up to 800 ECGs can be stored in internal memory with PDF and XML export via USB or Ethernet. This unit is supplied complete with a four-wheel trolley with storage basket and cable management hook.
Key Features
- 7-second boot time - ready to acquire within seconds of powering on; 10-second pre-acquisition captures instantaneous ECG data from startup
- Glasgow algorithm - internationally validated automated ECG analysis for adults and paediatric patients from birth; automatic reanalysis when patient demographics are modified
- 8-inch high-resolution colour display - 800 x 400 resolution with full on-screen ECG report preview before committing to print; optional touchscreen configuration
- Built-in thermal printer - supports Z-fold A4 thermal paper; five print layout formats (3x4+1R, 3x4+3R, 6x2, 6x2+1R, 12x1)
- 800 ECG internal memory - store and review historical ECGs on screen; export as PDF or XML via USB flash drive or LAN
- Automatic pacemaker detection - 16,000 samples/second/channel dedicated pacemaker detection sampling rate; real-time critical alerts
- Anatomical lead cable - ergonomic patient cable design reduces lead tangling at the bedside
- Full keyboard with shortcut keys - frosted membrane keyboard for rapid patient data entry; barcode reader supported
- External printer support - connect a USB laser or desk printer directly for A4 paper reports
- Optional Wi-Fi connectivity - wireless upload of ECG reports to hospital ECG management systems and PACS via FTP
- Lithium-ion battery - up to 4 hours of continuous operation or 400 printed pages on a single charge
- Trolley included - four-wheel trolley with storage basket and cable management hook; supplied as complete unit
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Mindray (Shenzhen Mindray Bio-Medical Electronics Co., Ltd.) |
| Model | BeneHeart R12 |
| Leads | 12 standard leads |
| Dimensions (H x W x D) | 128 x 365 x 305 mm |
| Weight | 4.9 kg |
| Display | 8-inch colour LCD, 800 x 400 resolution |
| Boot time | 7 seconds |
| Pre-acquisition | 10 seconds |
| ECG sampling rate | 1,000 samples/second/channel |
| Pacer detection sampling rate | 16,000 samples/second/channel |
| ECG amplifier | DC-coupled |
| Dynamic range | AC differential ±10 mV; DC offset ±600 mV |
| Resolution | 1 µV/LSB |
| ADC resolution | 24-bit |
| Frequency response | 0.05 to 150 Hz (–3 dB) |
| Input impedance | Greater than 50 MΩ at 10 Hz |
| Common mode rejection | ≥110 dB (AC filter off) |
| Baseline drift filter | 0.05 Hz, BDR 20 Hz, 35 Hz |
| AC filter | 50/60 Hz |
| Heart rate range | 15 to 300 bpm |
| Internal memory | 800 ECGs |
| Export formats | PDF, XML |
| Print formats | 3x4+1R, 3x4+3R, 6x2, 6x2+1R, 12x1 |
| Connectivity | USB, LAN (Ethernet); Wi-Fi optional |
| Battery | Lithium-ion rechargeable |
| Battery life | Up to 4 hours continuous or 400 printed pages |
| ECG analysis | Glasgow algorithm (adults and paediatric from birth) |
| Touchscreen | Optional |
| Barcode reader | Supported (optional accessory) |
| Patient cable standard | IEC or AHA |
What's Included
- BeneHeart R12 ECG unit
- Four-wheel trolley with storage basket and cable management hook
- Patient ECG cable
- Electrodes
- Mains power supply and power cord
- Z-fold A4 thermal paper
Please note: Wi-Fi connectivity, touchscreen and barcode reader are optional configurations. Confirm your required configuration before ordering. This unit is supplied on trolley as a complete ready-to-use system.
