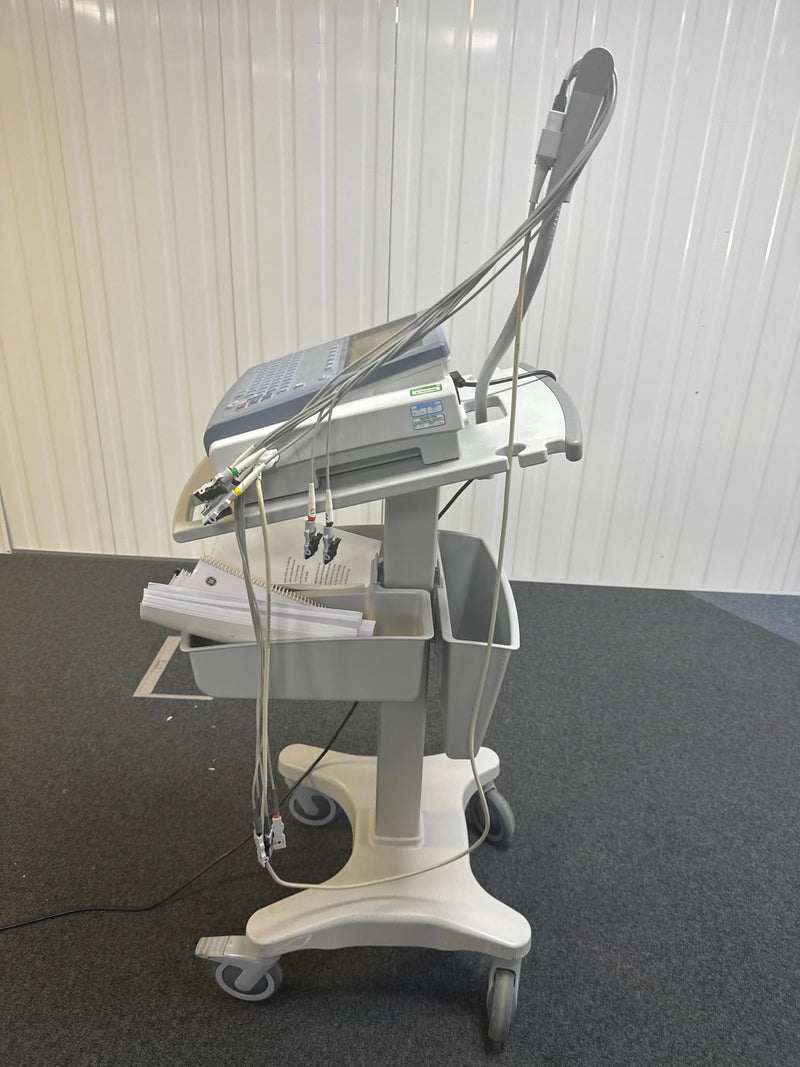

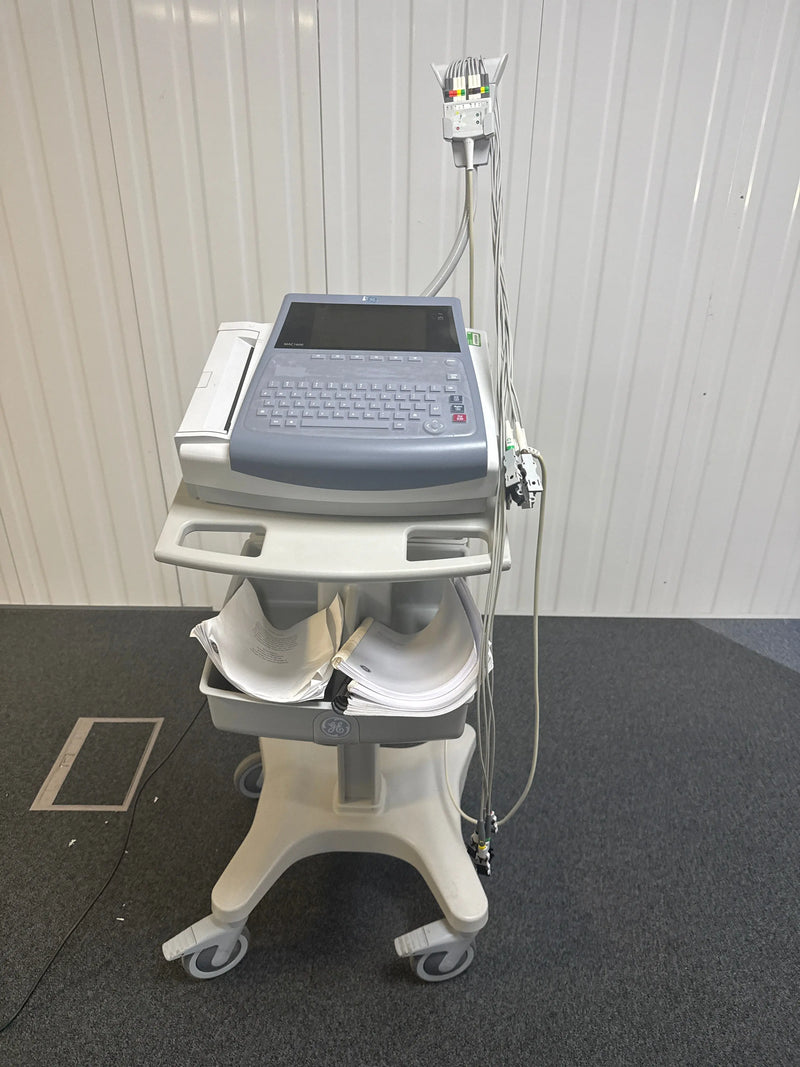

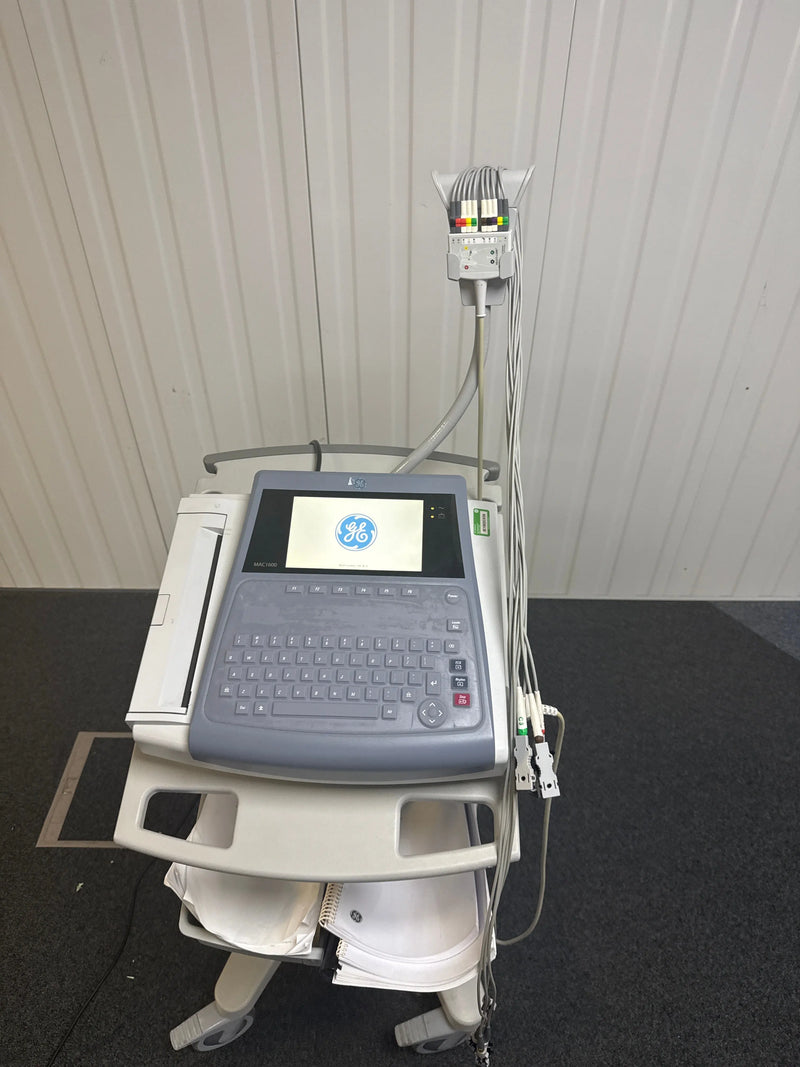

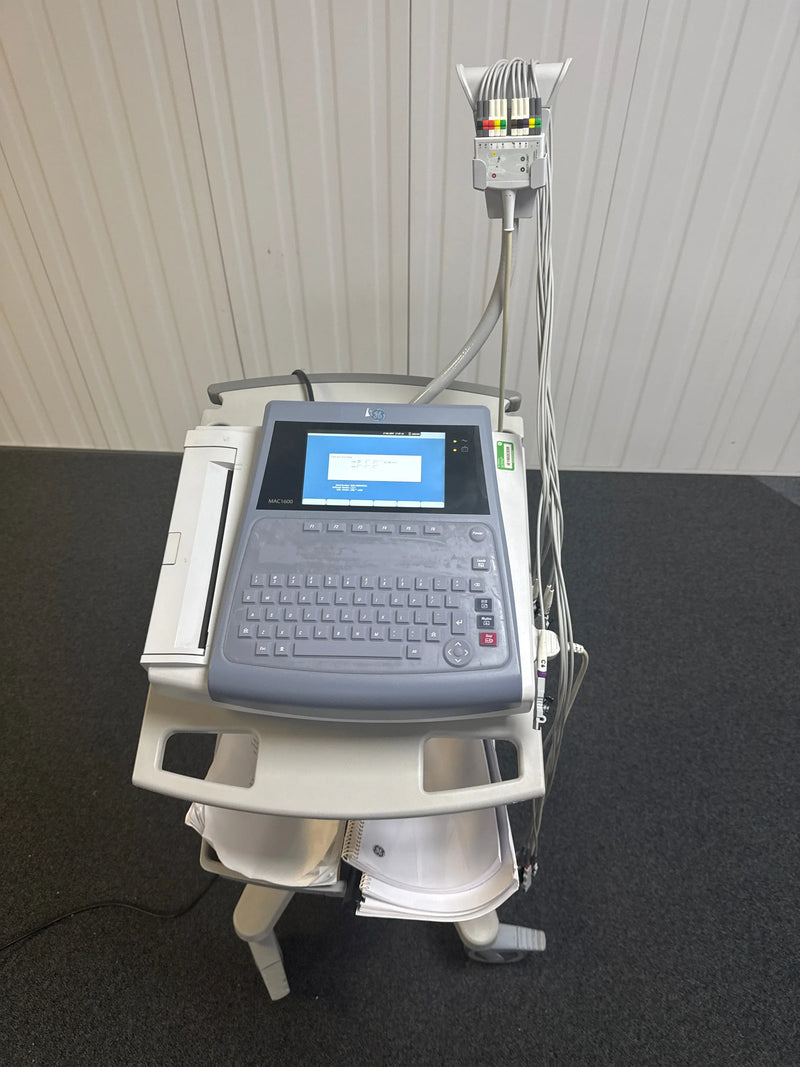

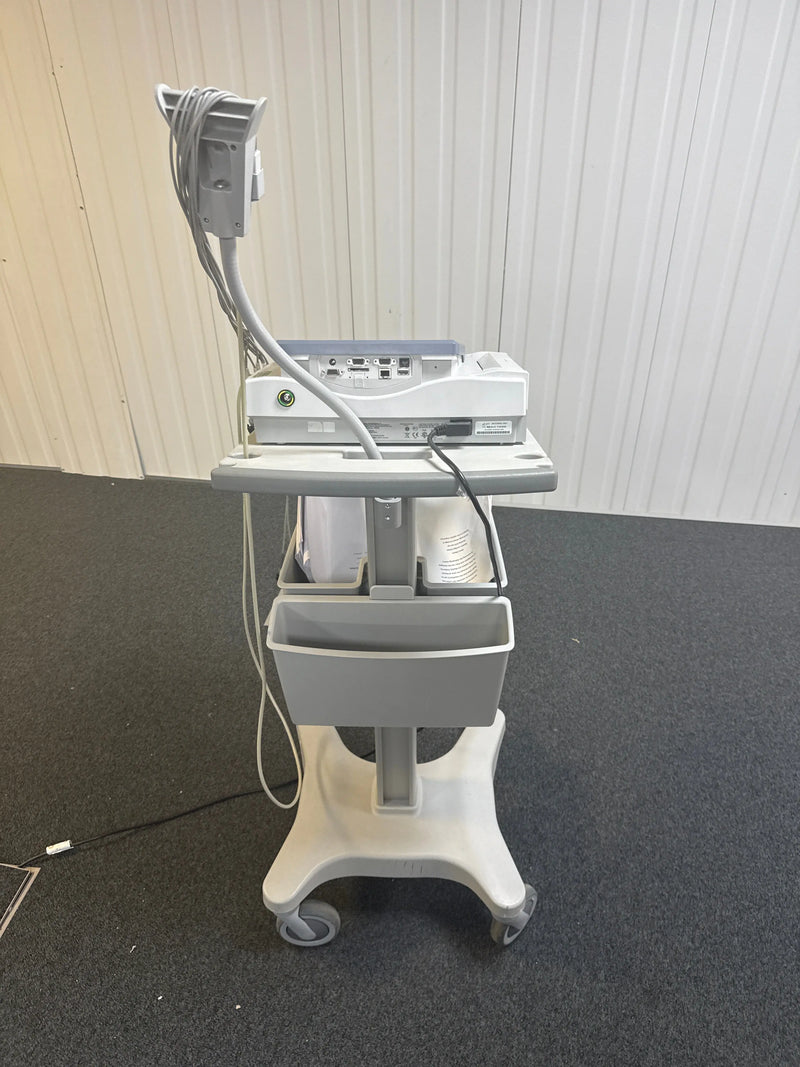

GE Mac 1600 ECG machine with ECG Leads and Trolley Stand

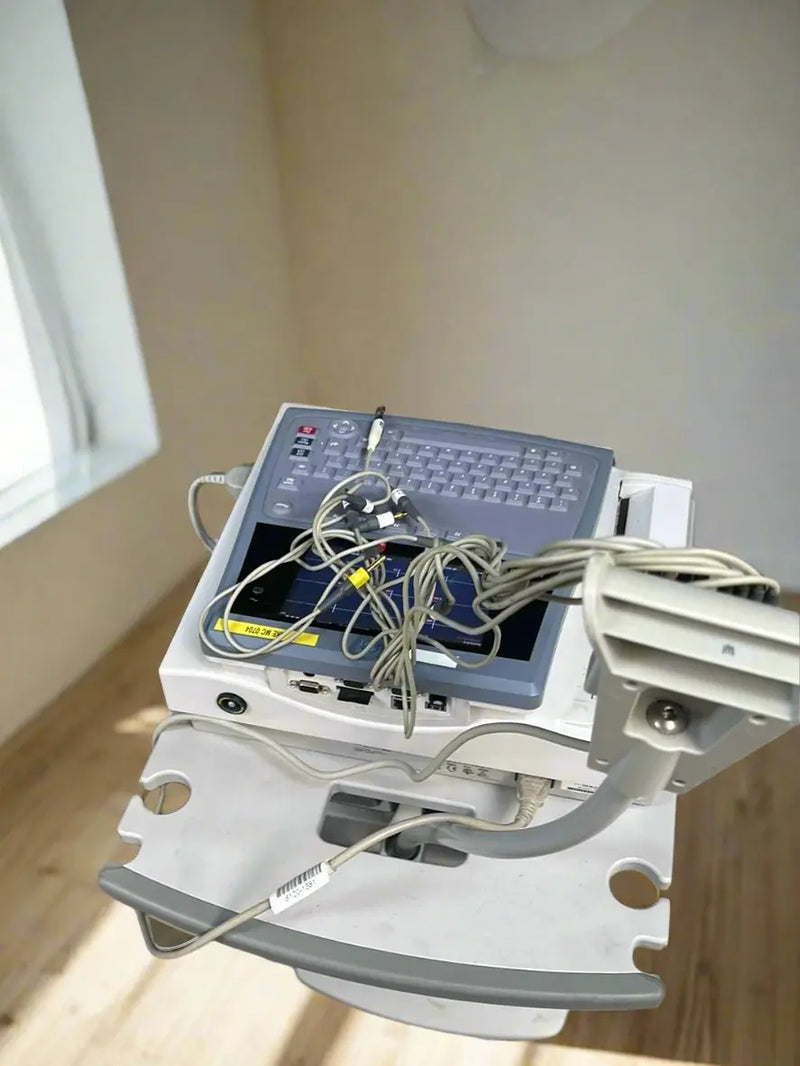

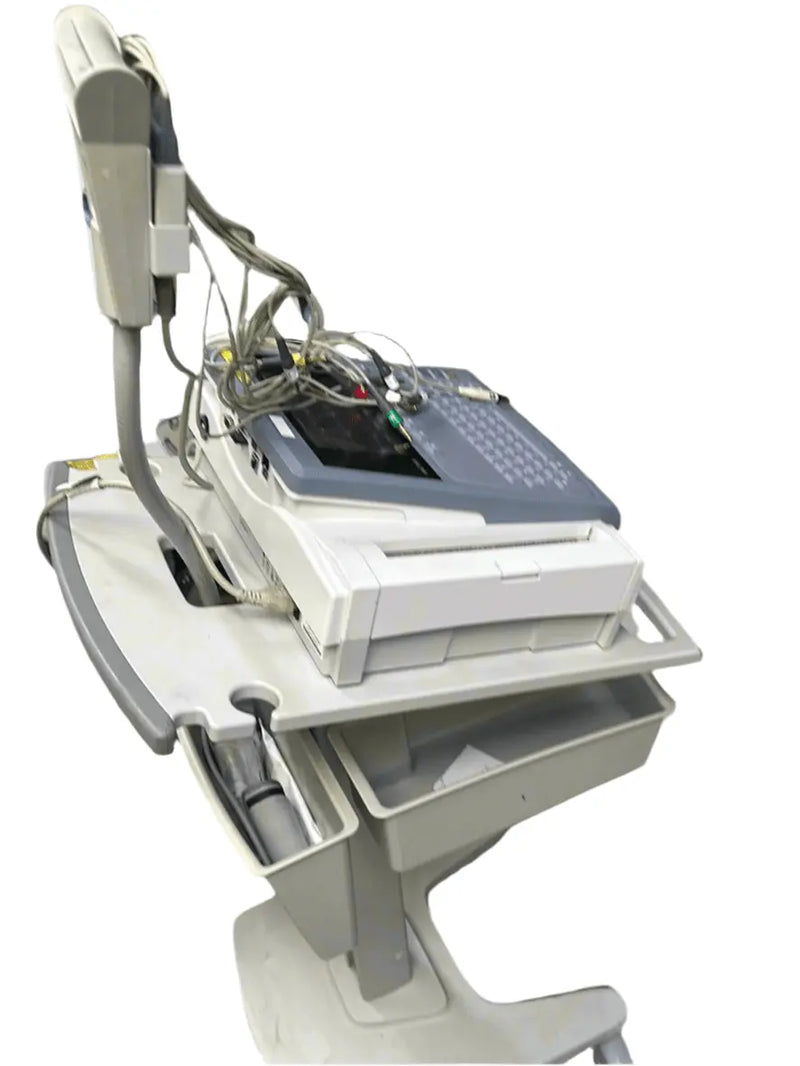

GE MAC 1600 ECG Machine with ECG Leads

The GE MAC 1600 ECG Machine is a high-performance, portable ECG system designed for clinics, hospitals, and emergency settings. Equipped with a 7-inch colour display and intuitive interface, it allows for seamless patient data entry and clear waveform analysis. Its long-lasting lithium-ion battery provides up to 3 hours of continuous operation, making it ideal for both stationary and mobile use.

This system supports resting ECG, rhythm, arrhythmia detection, and exercise testing, offering advanced cardiac assessments. It integrates easily with GE’s CardioSoft software for EMR connectivity, streamlining workflow and ensuring efficient data management.

Key Benefits & Features:

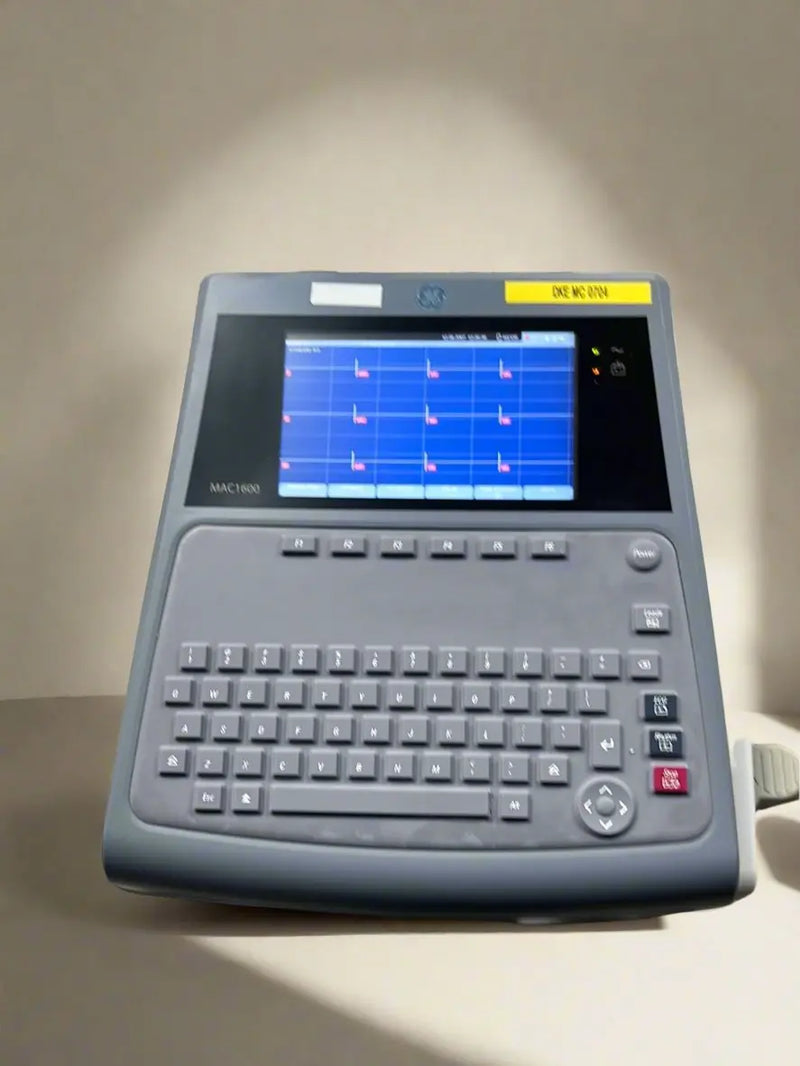

✔ 7” WVGA Colour Display – Provides crystal-clear ECG waveform reviews.
✔ Digital & Paper-Saving – Onscreen ECG preview reduces the need for repeat tests and unnecessary printing.
✔ Portable & Battery-Powered – Lightweight design with a lithium-ion battery that lasts up to 3 hours.
✔ Advanced ECG Capabilities – Supports resting ECG, rhythm monitoring, arrhythmia analysis, and exercise testing.
✔ EMR Ready – Seamlessly integrates with GE CardioSoft software for electronic medical record (EMR) compatibility.
✔ Marquette 12SL Interpretation – Provides high-precision ECG analysis for improved diagnostics.
✔ External VGA Support – Connects to an external CRT monitor for enhanced display options.
✔ Versatile Paper Compatibility – Uses A4 and US letter thermal paper with adjustable writer speeds.

Technical Specifications:

📌 Display: 7” TFT LCD, 800 x 480 pixels (WVGA resolution)
📌 Weight: Approx. 6.0 kg (including battery)
📌 Dimensions: 400mm (H) x 350mm (W) x 150mm (D)
📌 Power Supply:

• Voltage: 100-240V AC
• Frequency: 50-60 Hz

📌 Battery:

• Type: Lithium-Ion (16.4V, 2300 AH)
• Capacity: 50 single-page reports or 3 hours continuous operation
• Charge Time: Approx. 2.5 hours from full discharge

📌 Acquisition & Analysis:

• 12-lead simultaneous acquisition
• 500 or 1000 samples/sec resolution
• Marquette 12SL Hookup Advisor
• 4.88 μV resolution

📌 Printing & Storage:

• Paper Type: Thermal A4 & US letter (Z-fold)
• Writer Speed: 5, 12.5, 25, 50 mm/sec
• Memory Capacity: Stores 100 ECGs internally (expandable with external storage)

What’s Included?

✔ GE MAC 1600 ECG Device
✔ ECG Cables
✔ UK Power Supply
✔ User Manual
✔ ECG Paper
✔ Trolley Stand (Own Collection Only)

The GE MAC 1600 ECG Machine is a trusted solution for medical professionals, offering portability, accuracy, and seamless connectivity for superior patient care.
