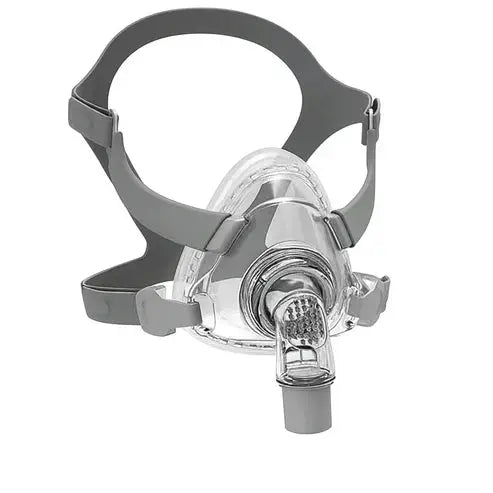

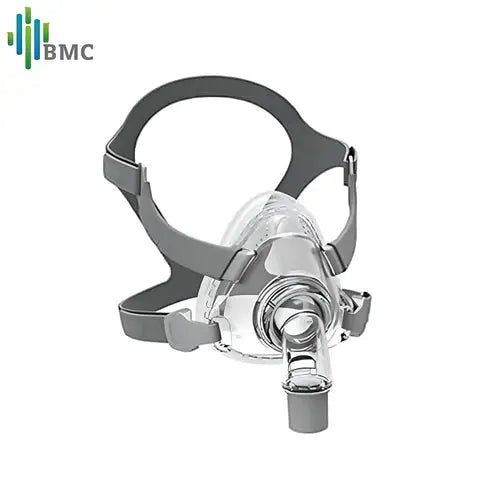

BMC F5A Full Face CPAP Mask
BMC F5A Full Face CPAP Mask
The BMC F5A is a forehead-frame-free full face CPAP mask covering both nose and mouth, designed for patients prescribed full face CPAP or bilevel therapy. The elimination of the forehead support frame provides a clear, unobstructed field of vision and reduces facial contact to a minimum. The single-layer silicone cushion uses BMC's Flexi Groove AutoFit design — a groove on the cushion automatically adapts to the nose bridge, maintaining a low-leak seal without requiring precise fitting on each application. A Quick-Click frame attachment allows the mask to be reassembled after cleaning in seconds, and easy-release headgear clips enable rapid mask removal and refitting without losing the adjusted fit. A single universal frame accommodates all three cushion sizes, simplifying replacement. Compatible with any standard CPAP, APAP or bilevel machine via a 22mm connection. Available in Small, Medium and Large.
Key Features
- Forehead-frame-free design - no forehead support structure; provides a clear, unobstructed field of vision and minimises facial contact during nightly use
- Flexi Groove AutoFit cushion - intelligent groove design on the cushion sides and lower edge automatically adjusts to the nose bridge, maintaining a consistent low-leak seal with minimal facial pressure
- Single-layer transitional silicone cushion - soft single-layer construction conforms gently to the face for a comfortable seal without the rigidity of dual-layer designs
- Quick-Click frame attachment - frame snaps onto the cushion in seconds for effortless reassembly after cleaning
- Easy-release headgear clips - patented quick-release clips allow rapid attachment and removal of headgear without losing the adjusted fit
- 360-degree ball and socket elbow - swivelling elbow joint provides freedom of movement during sleep without tugging the mask
- Universal frame - one frame fits all three cushion sizes (S, M, L); no new frame required when changing cushion size
- Anti-asphyxia valve - allows room air to be breathed if the CPAP device is not in operation

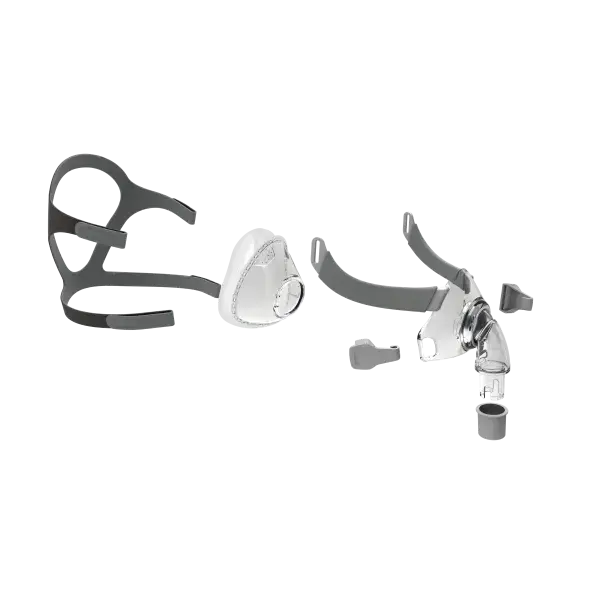

- Minimal parts three-part assembly - cushion, frame and headgear separate quickly for straightforward daily cleaning
- Dead space less than 225 ml - varies by cushion size
- Compatible with all standard CPAP, APAP and bilevel machines - standard 22mm connection
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | BMC Medical Co., Ltd. |
| Model | F5A |
| Mask type | Full face (nose and mouth) |
| Cushion design | Single-layer silicone, Flexi Groove AutoFit |

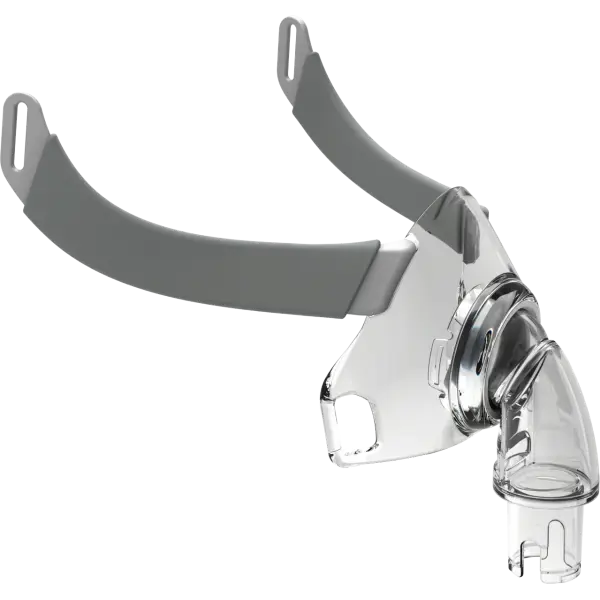

| Frame | Forehead-frame-free, universal (fits S/M/L) |
| Elbow | 360-degree ball and socket swivel |
| Anti-asphyxia valve | Yes |
| Dead space | Less than 225 ml (varies by size) |
| Available sizes | Small, Medium, Large |
| Tubing connection | Standard 22mm |
| Assembly | 3-part (cushion, frame, headgear) |
What's Included
- F5A full face mask frame with headgear
- Full face cushion (selected size)
- User guide
Recommended Replacement Schedule
| Component | Replacement Interval |
|---|---|
| Cushion | Every 1 to 3 months |
| Headgear | Every 6 months |
| Full mask | Every 12 months |
Please note: For first-time F5A users, the FitPack containing all three cushion sizes (S, M and L) is recommended to determine the correct fit before committing to a single size. Use the printable sizing guide available from BMC Medical to identify your starting size.
