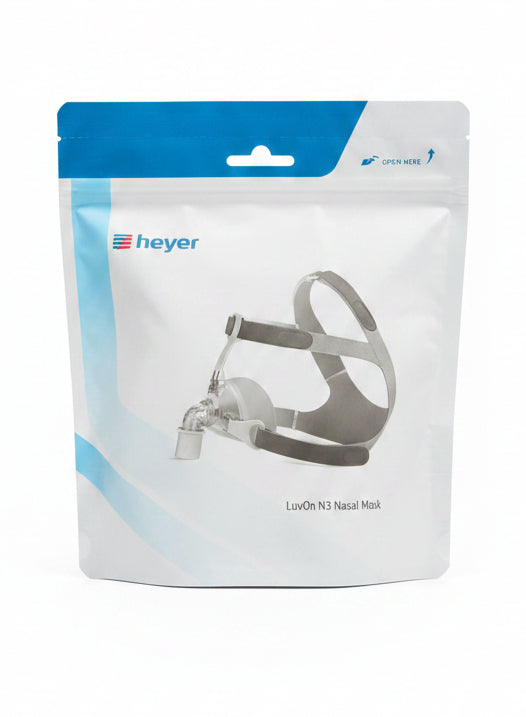

Heyer LuvOn N3 Nasal CPAP Mask
Heyer LuvOn N3 Nasal CPAP Mask
The Heyer LuvOn N3 is a traditional nasal CPAP mask designed for patients requiring continuous positive airway pressure or bilevel therapy who breathe primarily through the nose. Unlike the minimal-contact N2, the N3 features a forehead support pad alongside an ergonomic silicone cushion, providing additional stability and a secure, consistent seal across a range of therapy pressures. With a therapy pressure range of 4 to 30 cmH2O, quiet diffused venting and an adjustable headgear system, the N3 is a dependable choice for home CPAP therapy. Available in three sizes, it is suitable for single-patient reuse at home and single-use in hospital or institutional settings.
Key Features
- Traditional nasal design with forehead support - provides added stability and helps distribute headgear pressure evenly across the face
- Ergonomic silicone cushion - contours naturally to a range of nasal shapes for a secure, comfortable seal
- 360-degree swivel elbow - allows freedom of movement during sleep without tugging or mask displacement
- Quiet operation - sound power level less than 38 dBA at source, less than 30 dBA at 1 metre distance
- Adjustable 6-point headgear - top, upper and lower straps with magic hook adjustment for a personalised, stable fit
- Three sizes available - Small, Medium and Large with fitting template included
- Easy disassembly - cushion, forehead support, elbow assembly and swivel all separate quickly for straightforward daily cleaning
- Latex-free - no natural rubber latex, PVC or phthalates (DEHP, DBP)
- ISO 80601-2-70 compliant - compatible with all standard CPAP and bilevel devices meeting this standard
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Heyer Medical AG |
| Model | AN-03 |
| Mask type | Nasal |
| Therapy pressure range | 4 to 30 cmH2O |
| Resistance at 50 L/min | ≤0.8 cmH2O |
| Resistance at 100 L/min | ≤1.5 cmH2O |
| Sound power level | Less than 38 dBA |
| Sound pressure level (1m) | Less than 30 dBA |
| Available sizes | Small, Medium, Large |
| Material | Medical-grade silicone, latex-free, PVC-free |
| Tubing connection | Standard 22mm with swivel |
| Operating temperature | 5°C to 40°C |
| Operating humidity | 10% to 90% non-condensing |
| Storage temperature | -20°C to 60°C |
| Patient weight | Adults over 30 kg |
Recommended Replacement Schedule (Home Use)
- Cushion assembly: every 1 month
- Headgear assembly and short tube assembly: every 3 months
- Full mask: every 6 months
Please note: This mask is for single-patient reuse at home (up to 6 months) and single-use only in hospital or institutional environments (14-day cycle). Do not use bleach, alcohol, chlorine or scented cleaning products on any mask component.
