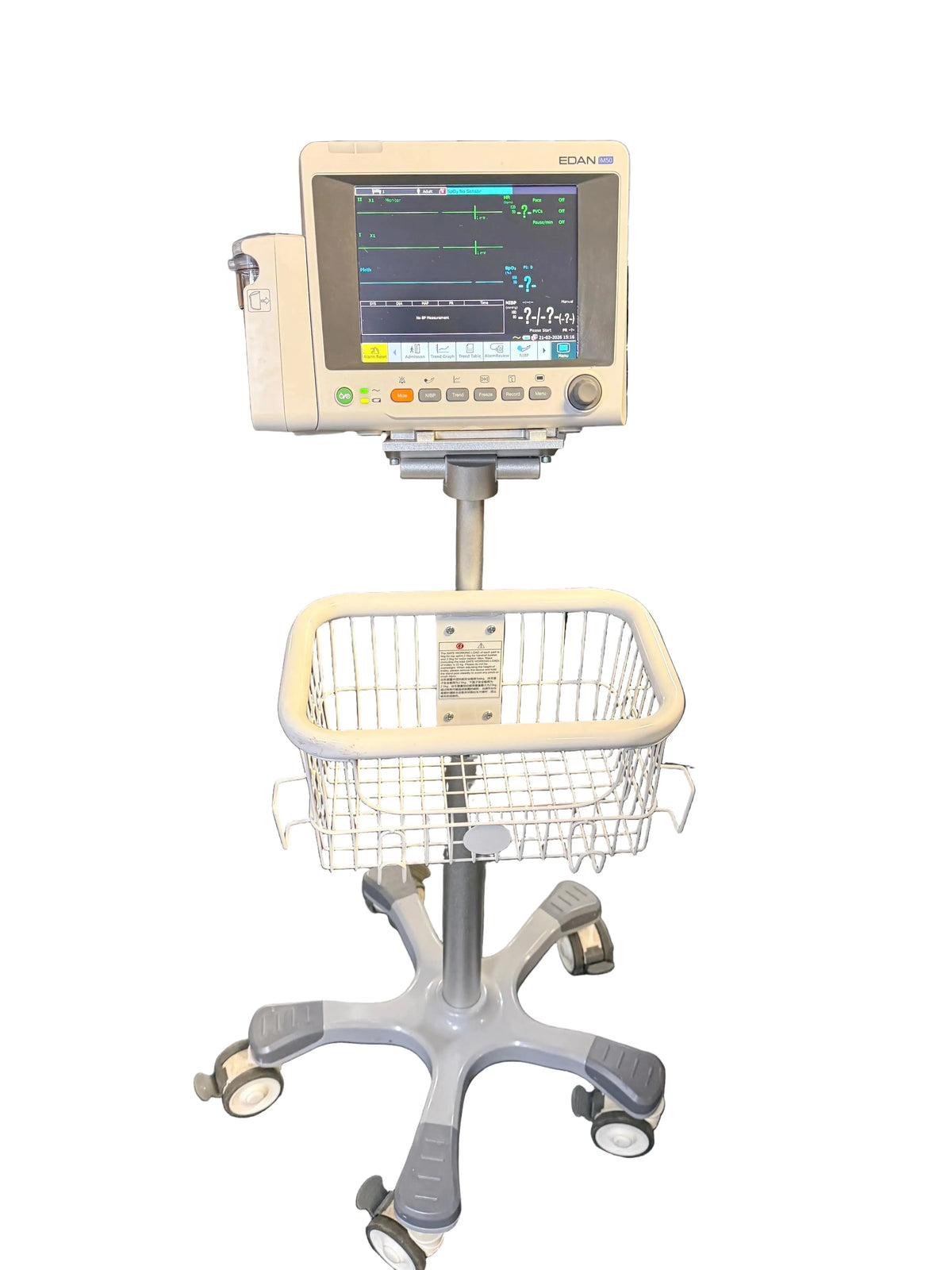

Edan iM50 Patient Monitor on a Rollstand

Edan iM50 Patient Monitor with Rollstand

The Patient Monitor Edan iM50 is a compact multi-parameter monitoring system designed for hospitals, emergency departments, and clinical wards. Mounted on a medical-grade rollstand, this Patient Monitor becomes a fully mobile bedside solution suitable for ward rounds and acute care environments.

The system supports comprehensive physiological monitoring, including ECG, SpO₂, NIBP, respiration, and temperature. Optional parameters such as IBP, EtCO₂, cardiac output, and anaesthesia gases are available depending on configuration.

Patient Monitor for Advanced Multi-Parameter Monitoring

This Patient Monitor features an 8.4-inch colour TFT display with 800 × 600 resolution, offering clear waveform and numeric data presentation. Depending on configuration, touchscreen functionality may be available.

Monitoring capabilities include 3- or 5-lead ECG, with optional 12-lead ECG. Up to 13 waveforms can be displayed simultaneously when fully configured. SpO₂ technology may be Edan or Nellcor based on model specification.

NIBP supports automatic, manual, and STAT modes. Dual-channel temperature and impedance respiration are included, ensuring comprehensive vital signs assessment.

Patient Monitor with Mobile Rollstand Solution

Mounted on the MT-206 rollstand, the Patient Monitor gains enhanced mobility and workflow efficiency. The rollstand includes a mounting plate compatible with the iM50, a top accessory basket for cuffs and sensors, and a 5-caster base with locking brakes.

The height-adjustable pole supports ergonomic positioning for bedside or standing operation. The stable base ensures safe clinical use during transport and monitoring.

The monitor operates on AC power or rechargeable lithium-ion batteries. Battery options include 2500 mAh or 5000 mAh, providing extended runtime for mobile applications.

Key Features

8.4-inch TFT display (800 × 600 resolution)
3/5-lead ECG, optional 12-lead ECG
SpO₂ (Edan or Nellcor configuration)
NIBP with automatic, manual, and STAT modes
Respiration (impedance) monitoring
Dual-channel temperature
Optional IBP, EtCO₂, cardiac output, anaesthesia gas
Up to 13 simultaneous waveforms
Integrated 48 mm thermal recorder
Rollstand with basket and locking casters
Rechargeable Li-ion battery options

Technical Specifications – iM50 Monitor

Rollstand (MT-206) Features

• Compatible with Edan M3, iM3, iM50, X8, and X10
• Mounting plate included
• Top accessory basket
• Five locking casters
• Height-adjustable pole
• Medical-grade durable construction

Information on this page is provided for guidance and does not replace advice from a qualified clinician. Always read the manufacturer's instructions before use, and check that a device is suitable for the patient and the prescribed therapy.
