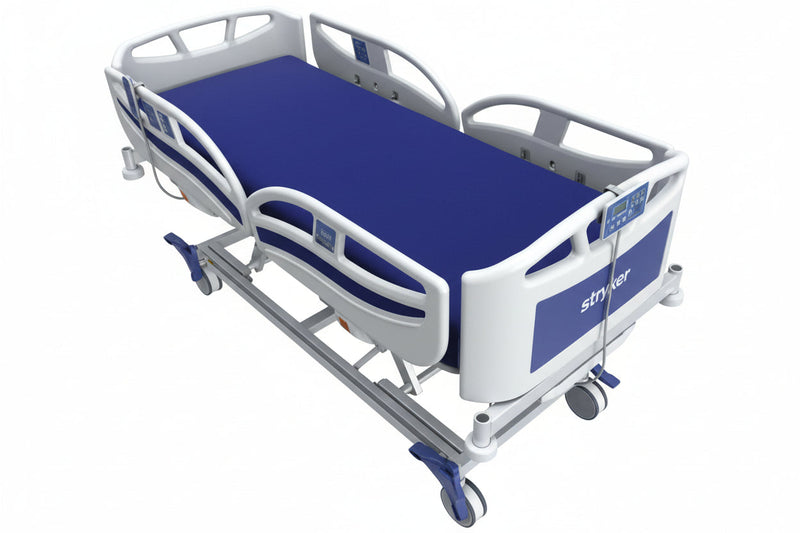

Stryker SV2 7500 Electric Hospital Bed with Controller & NEW Stryker Mattress
Stryker 7500 Electric Hospital Bed with Controller & NEW Stryker Mattress
The Hospital Bed Stryker 7500 is an electrically operated acute care bed designed for hospitals, surgical wards, and high-dependency clinical environments. This Hospital Bed provides reliable electric profiling, patient positioning control, and durable construction to support safe patient care.
Supplied with a controller and a new Stryker mattress, the bed offers a complete patient support solution suitable for long-term hospital use or specialist care facilities.
Hospital Bed Designed for Clinical Positioning
The Stryker 7500 Hospital Bed provides electric adjustments for height, backrest, and legrest positioning. These functions help caregivers safely reposition patients during treatment, recovery, or daily care routines.
Trendelenburg and reverse Trendelenburg functions allow clinical positioning when required for certain medical procedures. Quiet DC actuators ensure smooth bed movement with minimal disruption in ward environments.
The bed structure supports a safe working load of 250 kg and a maximum patient weight of 215 kg, making it suitable for a wide range of patient needs.
Hospital Bed Built for Safety and Mobility
Lockable siderails provide patient safety during rest or repositioning. The bed frame includes robust medical-grade castors to allow smooth movement between patient areas.
Several optional features can be included depending on configuration, such as a fifth wheel for improved manoeuvrability, under-bed lighting, X-ray compatible backrest panels, and bed extension modules.
The integrated battery backup system allows essential bed functions to operate during temporary power interruptions.
Key Features
• Electric height adjustment
• Electric backrest positioning
• Electric legrest positioning
• Quiet DC actuator system
• Lockable safety siderails
• Trendelenburg and reverse Trendelenburg positioning
• Compatible with new Stryker mattress
• Battery backup system for emergency operation
• Optional 5th wheel for improved manoeuvrability
• Optional under-bed lighting
• Optional X-ray compatible backrest
• Optional bed extension
• Optional dual caster configuration
Technical Specifications
| Category | Specification |
|---|---|
| Product Type | Hospital Bed |
| Model | Stryker 7500 |
| Safe Working Load | 250 kg |
| Maximum Patient Weight | 215 kg |
| Bed Weight | 150 kg |
| Length | 220 cm (251 cm with extension) |
| Width | 99 cm |
| Height Without Mattress | 37–75 cm |
| Under-Bed Clearance | 15 cm |
| Caster Size | 15 cm |
Adjustment Ranges
| Adjustment | Range |
|---|---|
| Bed Tilt | 0–15° |
| Backrest | 0–65° |
| Legrest | 0–30° |
| Trendelenburg / Reverse Trendelenburg | ±12° |
Power Specifications
| Category | Specification |
|---|---|
| Power Supply | 100–240 VAC, 50–60 Hz |
| Battery Backup | 24 V DC, 10 A |
| Duty Cycle | 2 minutes on / 18 minutes off |
