Arjo Huntleigh Tempo Patien Hoist With Battery & Hand Control
Price
£49999£549.99Save 9%
Price shown excludes VAT.
VAT relief available on this product
Eligible customers can claim VAT relief on this product at checkout.
Price
£49999£549.99Save 9%
Price shown excludes VAT.
VAT relief available on this product
Eligible customers can claim VAT relief on this product at checkout.
VAT relief applied — no VAT will be charged at checkout.
Quantity
Unit price£499.99
Total£499.99
You save£0.00
Frequently bought together
Add the whole set in one go.
Arjo Huntleigh Tempo Patien Hoist With Battery & Hand Control
£499.99
This item
ARJO NDA0100-20 24V 4Ah Medical Battery
£229.99
Arjo-Huntleigh NDA8200 battery Charger
£169.99
Total for the set
£0.00
Build Your Bundle
Key attributes
- Brand
- Arjo Huntleigh
- Category
- Hoist
- SKU
- ARJ4117V
- Options
- 2 to choose from

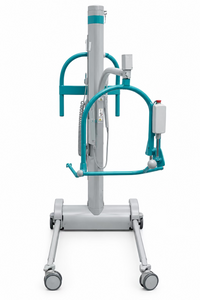

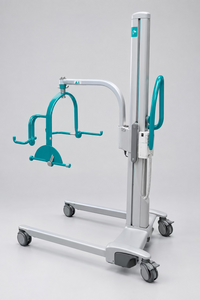

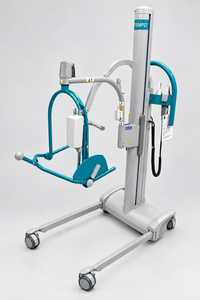

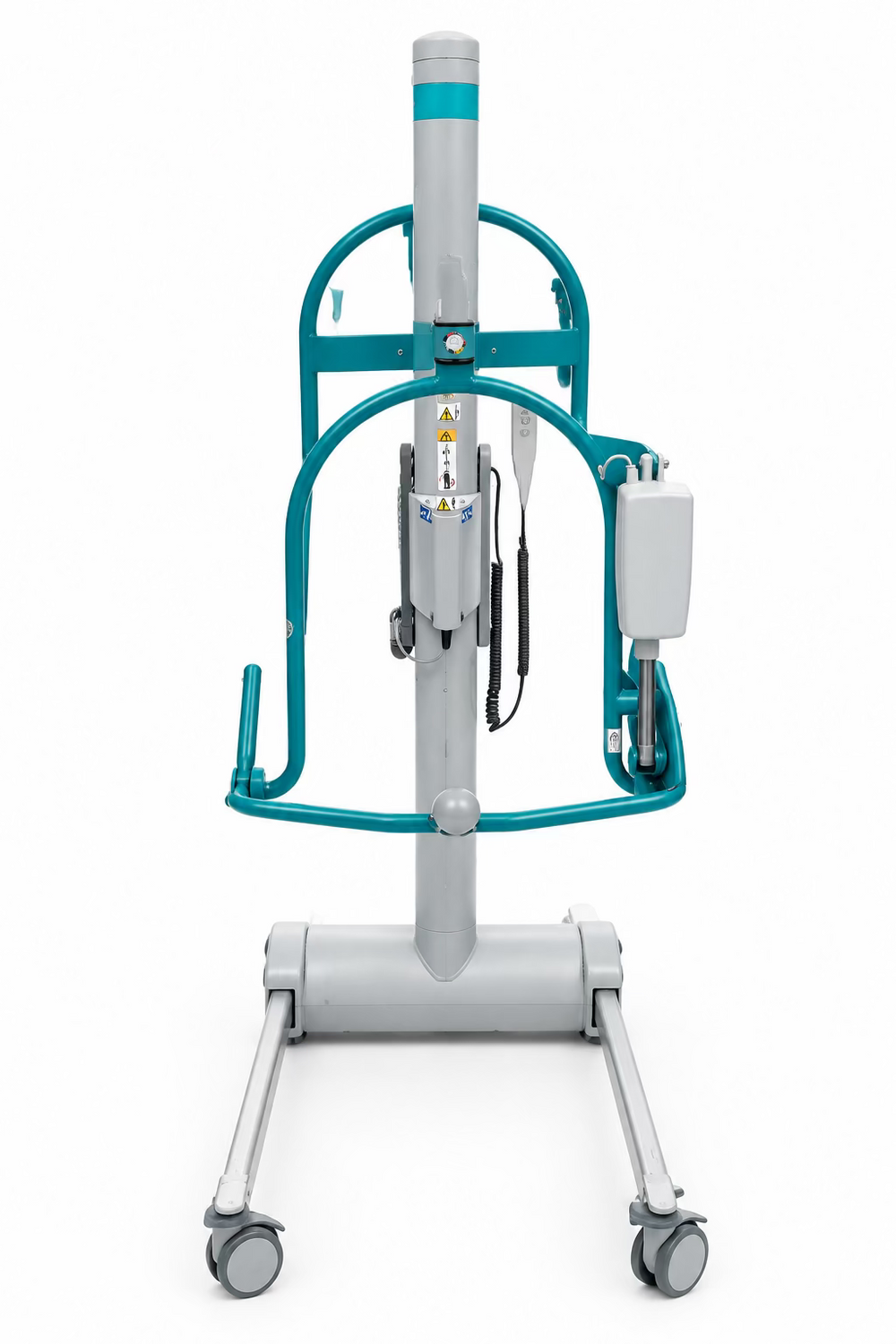

ArjoHuntleigh Tempo Mobile Patient Hoist with Battery and Hand Control, Pre-owned
The Tempo is ArjoHuntleigh's mobile passive floor hoist, the heavy duty frame used where a patient has to be lifted clear of a bed, a chair or the floor in a sling rather than supported while standing. The mast and jib are powered and the chassis legs open to clear a chair or a wheelchair, so the lift is taken by the hoist and the attendant positions rather than bears the load. It was built for ward, nursing home and community use and the lifting capacity puts it in bariatric territory rather than general purpose.
Load figures depend on what is fitted at the top. With Arjo slings the Tempo is rated at 190 kg, rising to 200 kg with the extra extra large sling and with the standard four point spreader bar. Where the 200 mm extended jib is fitted the rating drops to 130 kg, which is the figure to work to if that jib is on the unit. Slings are colour coded by size, from brown for extra small through to white for extra extra large, and Arjo are explicit that only slings designed for the Tempo are to be used on it.

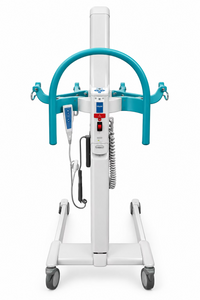

Control is from a wireless handset rated IP67, with a duplicate switch panel on the mast so the hoist can be driven from the frame if the handset is mislaid or flat. A red emergency stop cuts powered motion and a green reset restores it. For a total electrical failure there is a wind down facility reached with an internal Allen key under the mast top cover, which lowers the jib about 6 mm per full turn, so a patient can be brought down without power.
This unit is supplied pre-owned with its battery and hand control. The battery on a used hoist is the part that determines whether the machine is usable on arrival, and a lead acid pack that has sat discharged holds very little. Elarix Medical will state the battery condition and the charge it holds in writing before dispatch, and stocks Arjo batteries and chargers separately for the hoists they fit. Arjo quote an expected operational life of ten years for the Tempo where it has been serviced and maintained, so the service history matters more on this machine than the hours on the frame.
References
| Brand | ArjoHuntleigh |
| Model | Tempo |
| Device type | Mobile passive patient hoist |
| Battery specified by Arjo | KPA0100, 24 V lead acid |
| Charger specified by Arjo | KPA0101, with country code suffix |
| Spreader bar | Four point, standard |
| Condition | Pre-owned |
Features
- Powered mast and jib with an opening chassis, so the legs clear a chair or wheelchair and close to pass a doorway.
- Wireless hand control rated IP67, with a duplicate switch panel on the mast for parallel operation.
- Red emergency stop and green reset on the mast.
- Wind down facility reached with an internal Allen key, which lowers the jib about 6 mm per full turn in the event of an electrical failure.
- Four point spreader bar taking Arjo colour coded slings, brown for extra small through to white for extra extra large.
- Rated 190 kg with Arjo slings and 200 kg with the extra extra large sling and the standard four point spreader bar.
- Removable 24 V lead acid battery pack, so a charged pack can be swapped in while the other is on charge.
- Arjo quote an expected operational life of ten years where the hoist is serviced and maintained.
Points to note before ordering
- Thorough examination before use. The Tempo lifts people, so in a workplace setting it falls under LOLER 1998 and PUWER 1998, with thorough examination by a competent person at least every six months, weekly function checks and a daily check of battery charge.
- Arjo slings only. Arjo state that only slings designed for the Tempo are to be fitted. No sling is included with this hoist.
- Battery. Supplied with its battery, pre-owned. A lead acid pack on a used hoist may hold limited charge. Elarix Medical will state the battery condition before dispatch, and stocks Arjo batteries and chargers separately.
- Jib configuration affects the rating. Where the 200 mm extended jib is fitted the safe working load is 130 kg rather than 190 kg.
- Pre-owned condition. Marks to the paint and wear to the castors consistent with service use. Elarix Medical will photograph the actual unit on request.
Technical specifications
- Brand
- ArjoHuntleigh
- Model
- Tempo
- Device type
- Mobile passive patient hoist
- Condition
- Pre-owned
- Safe working load, Arjo slings
- 190 kg
- Safe working load, extra extra large sling
- 200 kg
- Safe working load, standard four point spreader bar
- 200 kg
- Safe working load, 200 mm extended jib fitted
- 130 kg
- Weight, less battery, standard jib
- 52.5 kg
- Weight, less battery, powered patient positioning spreader bar
- 59.2 kg
- Weight, chassis only
- 22.9 kg
- Weight, battery pack
- 4.9 kg
- Battery
- 24 V lead acid, Arjo part KPA0100
- Charger
- Arjo part KPA0101, with country code suffix
- Hand control
- Wireless handset, IP67
- Secondary control
- Dual switch panel on the mast, parallel operation
- Emergency stop
- Red stop button with green reset
- Emergency lowering
- Wind down facility by internal Allen key, about 6 mm of jib travel per full turn
- Spreader bar
- Four point standard, powered patient positioning bar offered by Arjo as an option
- Sling sizes
- Colour coded, brown extra small, red small, yellow medium, green large, blue extra large, white extra extra large
- Operating temperature
- 5 degrees Celsius to 35 degrees Celsius
- Storage and transport temperature
- Minus 10 degrees Celsius to 45 degrees Celsius
- Standards cited by Arjo
- IEC 601-1, EMC under the Medical Devices Directive 93/42/EEC, ISO 9001
- Expected operational life quoted by Arjo
- Ten years with regular service and maintenance
- Inspection regime
- Thorough examination at least six monthly, weekly function check, daily battery charge check
Specifications can change without notice. Ask us for the current technical file.
What is in the box
- Item
- Quantity
- ArjoHuntleigh Tempo mobile patient hoist, pre-owned
- 1
- 24 V battery pack, pre-owned
- 1
- Wireless hand control
- 1
What is not included
- Item
- Status
- Arjo sling, any size
- Not included
- Spare Tempo battery pack, Arjo part KPA0100
- Not included
- Battery charger, Arjo part KPA0101
- Not included
- Powered patient positioning spreader bar
- Not included
- Scale option
- Not included
- 200 mm extended jib
- Not included
- Printed operating instructions
- Not included
- LOLER thorough examination and commissioning
- Not included
Shipping and returns
Ordered before 1pm Monday to Friday, dispatched the same working day from Leeds. Deliveries run Monday to Saturday, never Sunday.
UK mainland, light items: 1 to 2 working days. Heavy and bulky: 2 to 4 working days.
Customs and duties
International orders ship on a Delivered At Place basis. Import duty, local tax and customs clearance fees are charged by the destination country and are the buyer's responsibility.
Delivery estimate
Returns
Unopened items can be returned within 30 days of delivery. Tell us before you send anything back so we can give you a returns reference.
Opened items that touch the airway cannot be returned for hygiene reasons unless they are faulty.
This does not affect your statutory rights.
Refund
Refunds are issued to the original payment method once the returned item reaches us and has been checked, normally within five working days.
Faulty items are refunded in full, including the delivery you paid.
