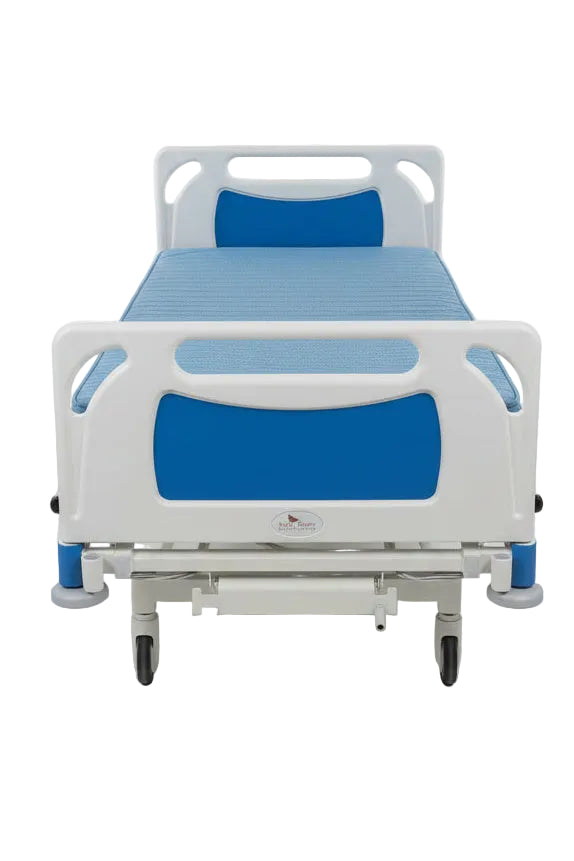

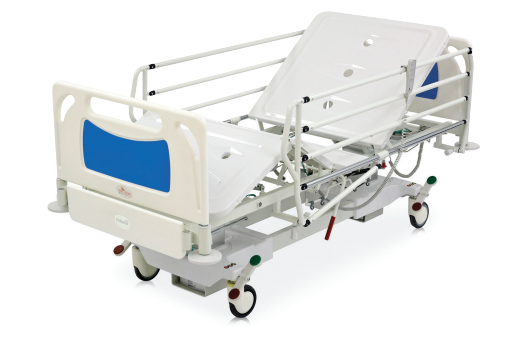

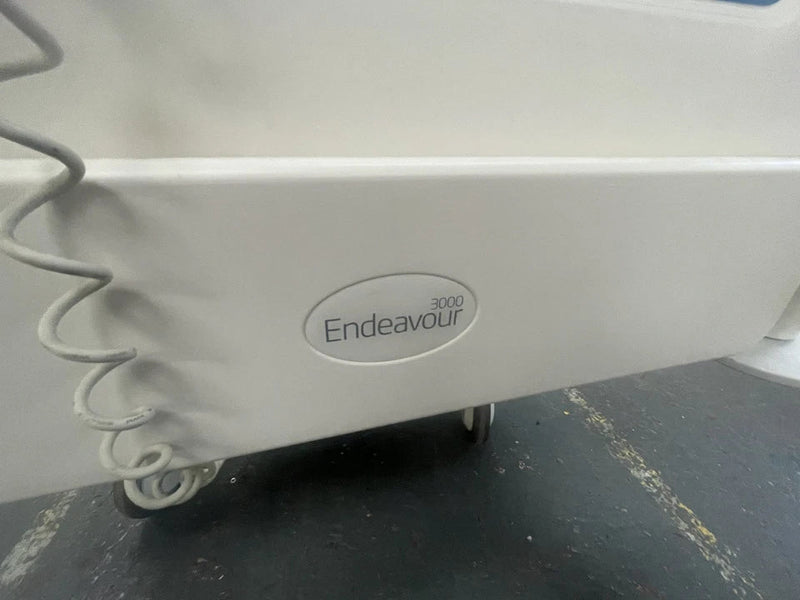

Park House Healthcare Endeavour 3000 Electric Hospital Bed with Mattress

The Park House Healthcare Endeavour 3000 is a fully electric acute care hospital bed designed for use in HDU, ITU, general medicine, and specialist surgical environments. Suitable for high-dependency patients who pose a moving and handling risk or whose clinical condition requires minimum physical handling, it combines a comprehensive range of electrically controlled positions with robust safety systems including anti-entrapment actuators, electric and manual CPR, Trendelenburg and anti-Trendelenburg tilt, and a full nurse lockout function. A 20cm mattress platform extension accommodates taller patients, and 15.5cm under-bed clearance supports hoist access. Stop, steer and go central braking provides controlled mobility between clinical areas. Battery backup ensures continued electrical operation when disconnected from mains. Safe working load of 260kg. Supplied with hospital mattress.

Key Features

• Electric height adjustment - mattress platform adjusts from 41.5cm to 81.5cm for safe patient access and optimal working posture for clinical staff
• Electric back rest - adjusts to 70 degrees; raises and lowers independently or via Autocontour
• Electric thigh rest - adjusts to 16.5 degrees; raises and lowers independently or via Autocontour
• Manual calf section - ratchet-adjustable to 15 degrees; manually positioned to the desired height and locked
• Autocontour function - simultaneously adjusts back rest and thigh rest for smooth, coordinated repositioning
• Cardiac chair position - one-button activation raises the back rest and adjusts the thigh rest to the cardiac chair configuration; one press returns to flat
• Trendelenburg and anti-Trendelenburg tilt - 14 degrees in both directions; nurse control only
• Electric CPR - one-button emergency flattening of the bed to a CPR-appropriate height; overrides nurse lockout
• Manual CPR levers - located on both sides of the bed; flatten the back and thigh rest sections without electrical power in an emergency
• Stop, steer and go central braking - three-position foot pedal system; green for straight-line movement, level for full manoeuvrability, red for full wheel lock
• Anti-entrapment actuators - detect resistance during movement and stop automatically if substantial obstruction is encountered
• Mattress platform extension - extends by 20cm via quick-release pins to accommodate taller patients; suitable mattress extension required when extended
• In-bed linen shelf - pull-out shelf at the foot end for clean linen during bed making
• Drainage bag holders - accessory rails beneath the bed base for urine bags and drainage equipment
• Under-bed lighting - illuminates the floor area around the bed; activatable from patient handset and nurse panel
• Battery backup - 24V 1.2Ah battery provides short-term emergency operation of all electrical functions when disconnected from mains; charges automatically when connected to mains
• Nurse lockout - individual or all-function locking via nurse control panel; electric CPR always overrides lockout

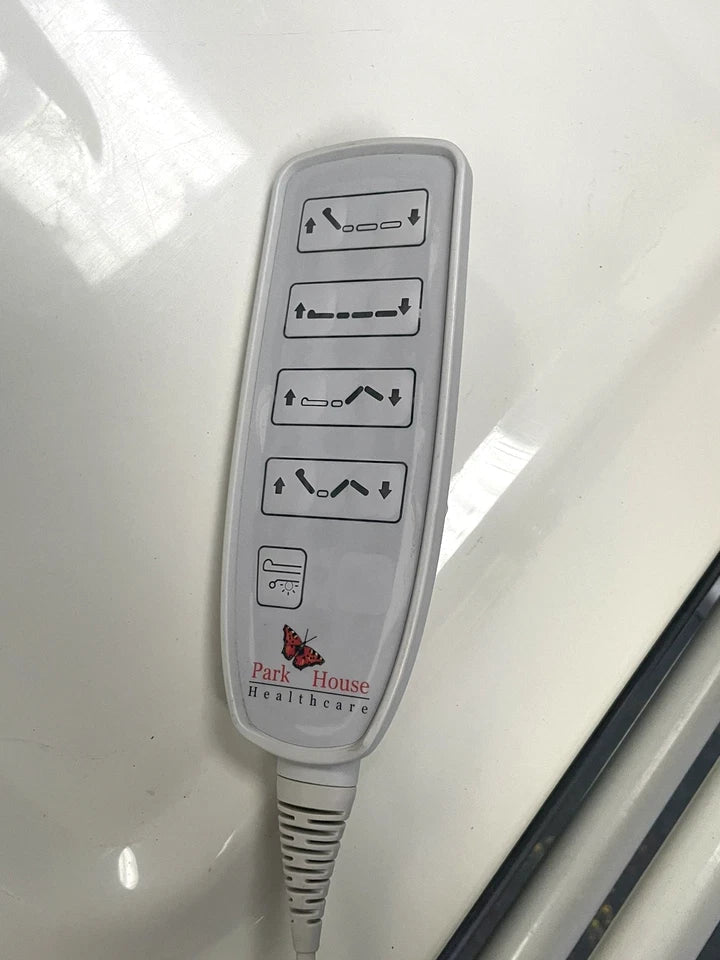

• Patient handset - illuminated buttons; controls height, back rest, thigh rest, Autocontour and under-bed light
• IP66 ingress protection - suitable for jet washing and steam cleaning; can be used in decontamination chamber or tunnel wash
• 15cm anti-static castors - four-wheel system with stop, steer and go central brake
• Supplied with hospital mattress

Technical Specifications

Standard Features

Bed base, mattress platforms, back rest section, thigh rest section, safety sides, patient handset, nurse control panel, manual CPR levers, stop steer and go braking system, anti-static castors, in-bed linen shelf, drainage bag holders, under-bed lighting, bed buffers, battery backup, anti-entrapment actuators, mattress platform extension

Optional Accessories

Drip stand, lifting pole, head and foot boards (choice of colours including mint green, lilac, peach, pale pink, pale blue)

Please note: The Endeavour 3000 is intended for use by patients aged 12 years and over. Safe working load of 260kg must not be exceeded. All servicing and repairs must be carried out by a Park House approved engineer; use of non-approved engineers will invalidate the guarantee. Trendelenburg and anti-Trendelenburg tilt functions are for use by medical personnel only. Electric CPR is an emergency function for medical personnel only. Always connect to mains during normal use to maintain battery charge.
