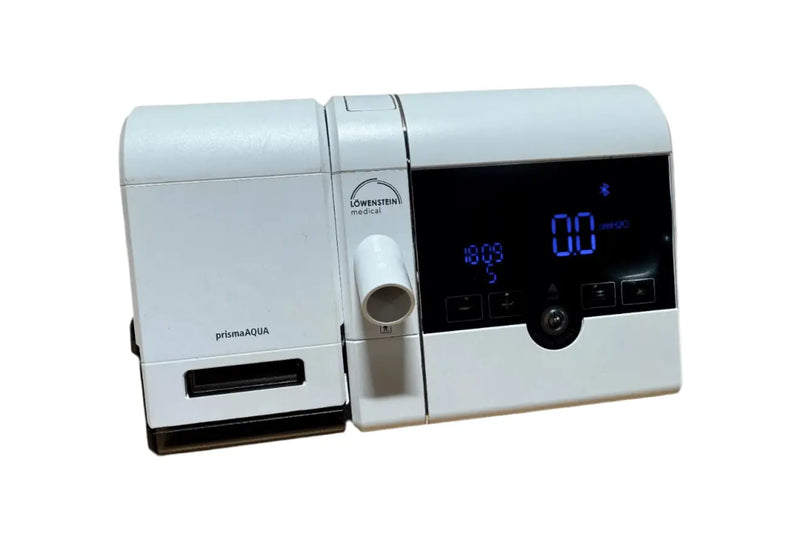

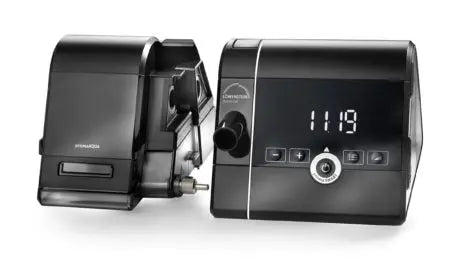

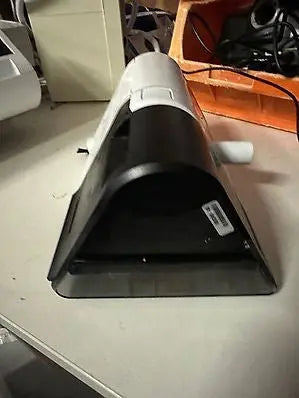

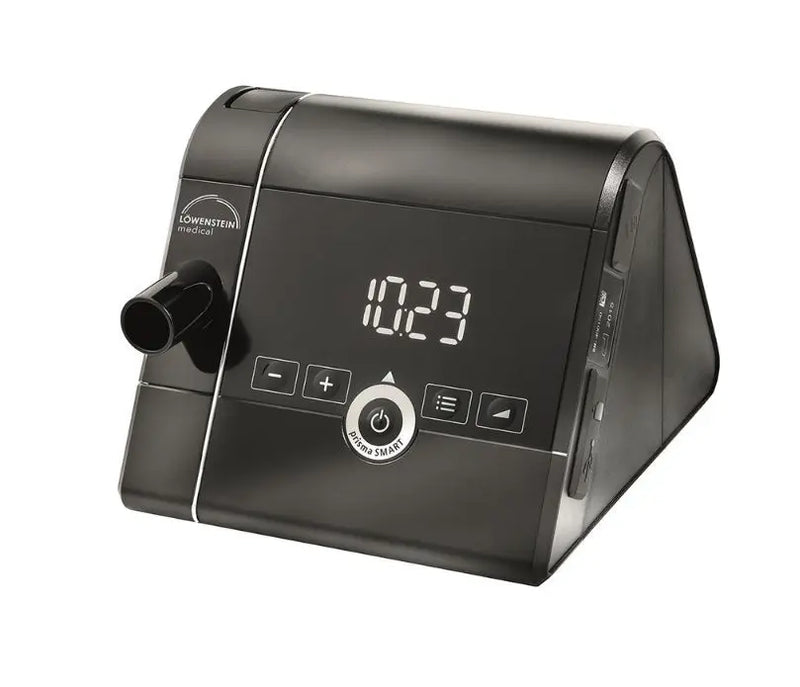

Lowenstein Medical Prisma Soft Max CPAP Machine WM090TD with Bag
Lowenstein Medical Prisma Soft Max CPAP Machine WM090TD with Bag
The CPAP machine Lowenstein Medical Prisma Soft Max WM090TD is designed to provide precise, comfortable and effective treatment for Obstructive Sleep Apnoea. Using advanced Forced Oscillation Technique, it distinguishes between obstructive and central events, allowing intelligent therapy adjustments. Its ultra-quiet performance of approximately 26 dB(A) ensures a calm sleep environment, while softPAP comfort settings improve tolerance by reducing pressure during exhalation.
This CPAP machine includes an intuitive segmented display, compact dimensions and customisable APAP modes ranging from 4 to 20 cm H₂O. It weighs only 1.34 kg, making it suitable for both home and travel use. The Prisma Soft Max is compatible with prismaLINE accessories, including humidifiers and CPAP masks, giving users a complete and flexible therapy solution.
Key Features
-
Forced Oscillation Technique for accurate event detection
-
Ultra-quiet operation at 26 dB(A)
-
Adjustable APAP pressure range 4–20 cm H₂O
-
SoftPAP comfort technology
-
Lightweight 1.34 kg design
-
Easy-to-use segmented display
-
prismaLINE accessory compatibility
Technical Specifications
-
Pressure Range: 4–20 cm H₂O
-
Noise Level: ~26 dB(A)
-
Dimensions: 170 × 135 × 180 mm
-
Weight: 1.34 kg
-
Electrical Rating: Max 40 VA
-
Power Interface: 24V DC
-
Power Consumption:
-
Operation: 0.16 A (240V) / 0.36 A (100V)
-
Standby: 0.035 A (240V) / 0.061 A (100V)
-

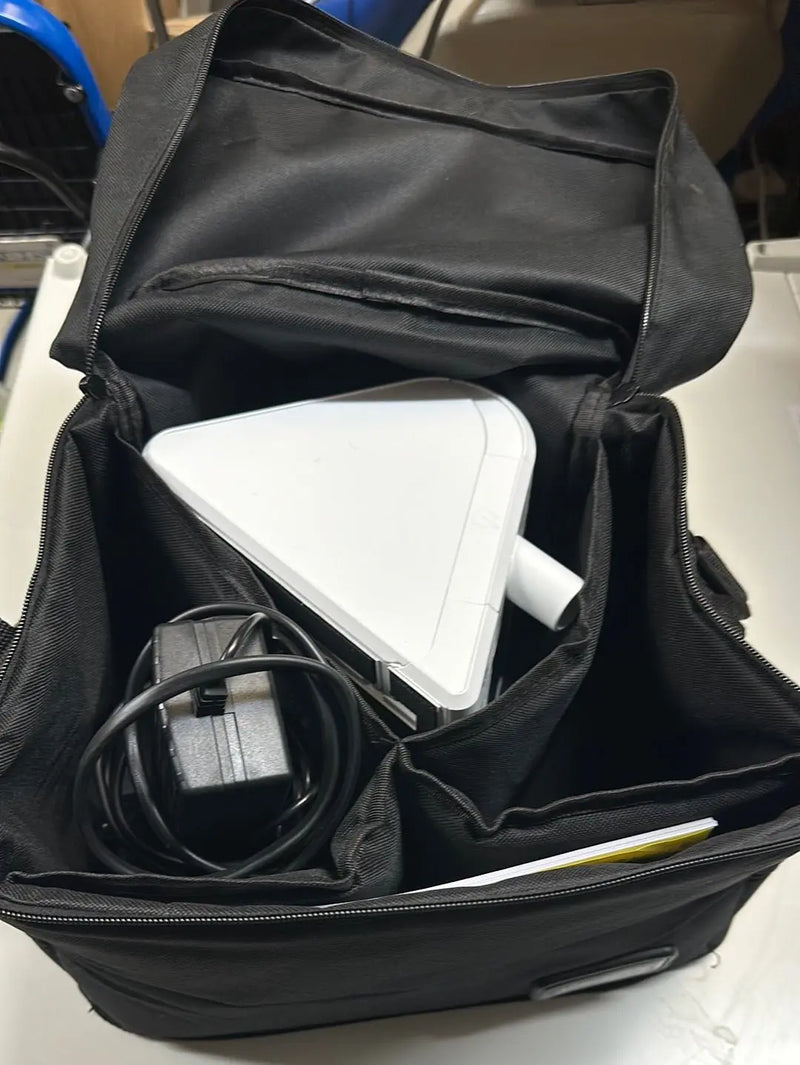

What’s Included
-
Prisma Soft Max CPAP unit
-

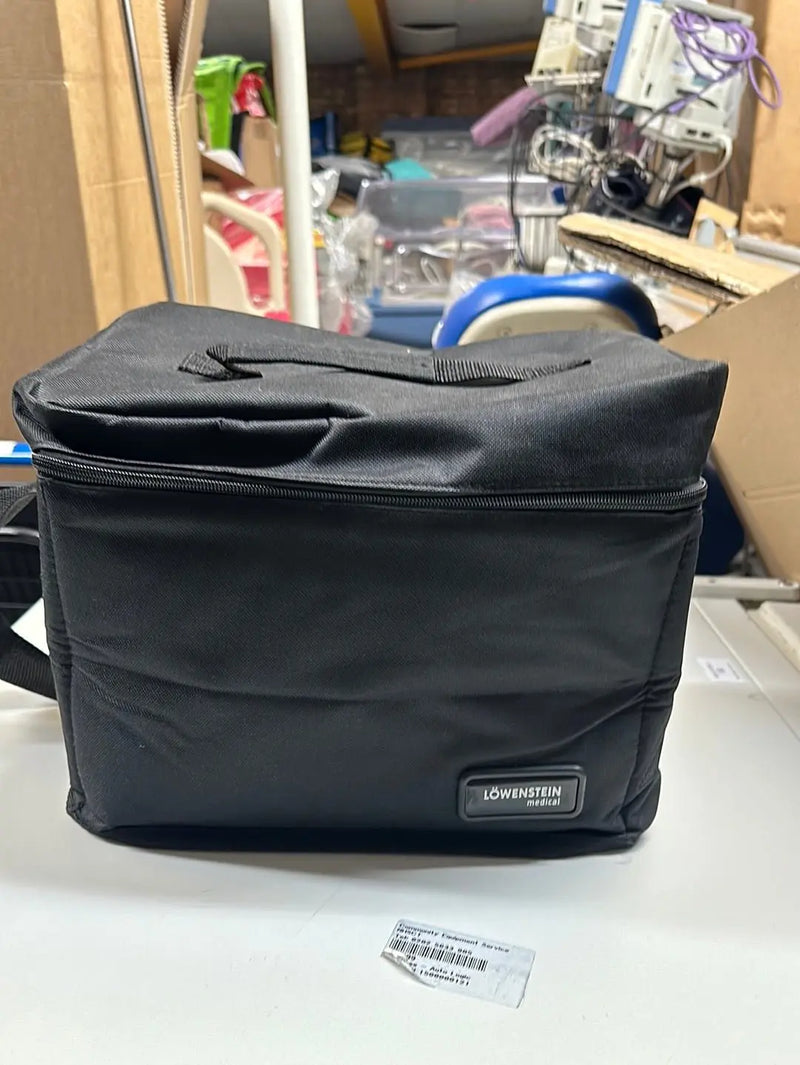

Carry bag
-
Power supply
-
Optional humidifier

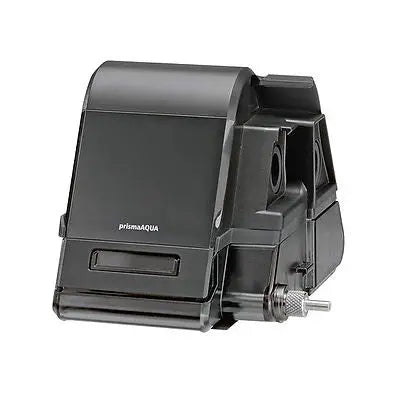

prismaAQUA Humidifier (Optional)
The prismaAQUA humidifier improves comfort by warming and moistening airflow, reducing dryness and irritation. It offers pre-warming, optional heated tubing and high-efficiency humidification. Available in black or white depending on device model.
