Patient Monitor for Flexible Critical Care Monitoring

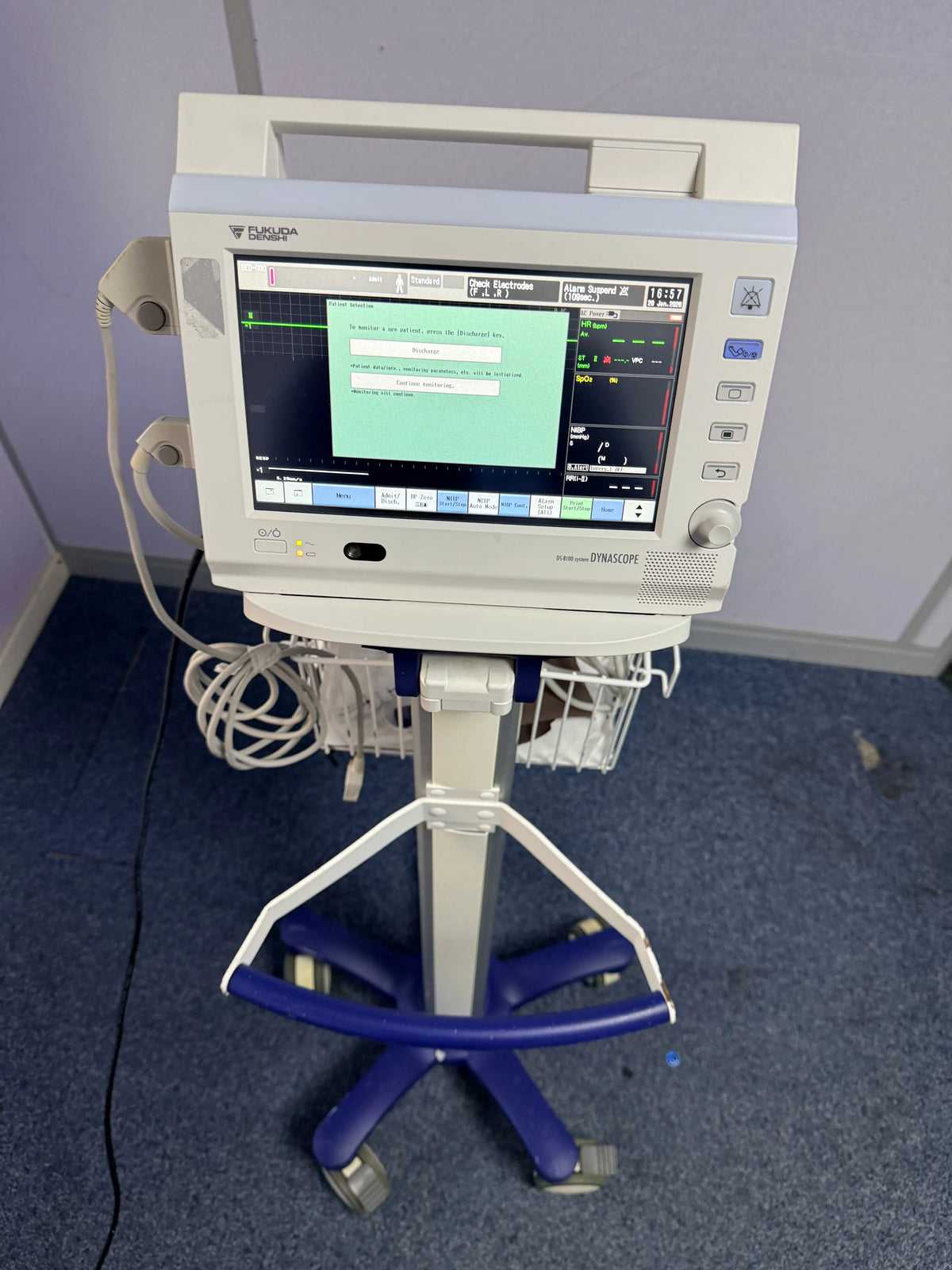

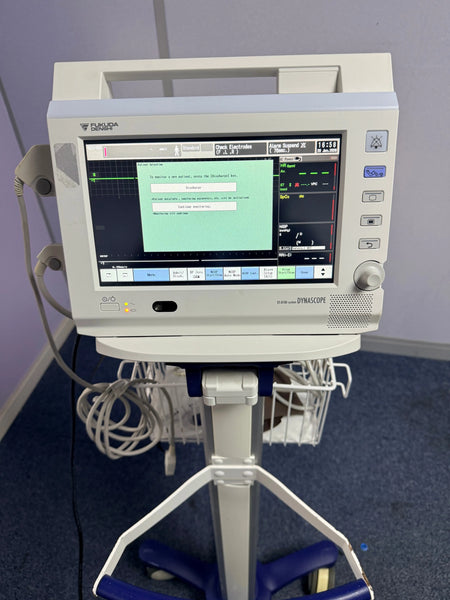

The Patient Monitor Fukuda Denshi DS-8100 Patient Monitor is a compact, versatile monitoring system designed to meet the demands of critical care, high-dependency and transport environments. This second-hand patient monitor is supplied with accessories and a roller stand, providing a ready-to-deploy solution for continuous patient observation.
In addition, the Patient Monitor Fukuda Denshi DS-8100 features a wide 10.2-inch colour LCD housed within an ultra-slim, space-efficient body. It uses the same graphical user interface as the higher-end DS-8500 platform, allowing intuitive operation and consistent workflows across clinical areas. Multiple display configurations support flexible monitoring layouts tailored to patient acuity and clinical preference.
The monitor offers touch screen control, fixed keys and a jog dial for reliable operation in varied care settings. A modular architecture allows optional units to be added to match clinical needs, including EtCO₂ monitoring, telemetry, recording and expansion ports. With up to three hours of battery operation, the DS-8100 supports bedside use and short-duration transport when required.
Key Features
-
Integrated patient monitor with 10.2-inch wide colour display
-
Compact and ultra-slim design for critical care areas
-
User interface aligned with DS-8500 high-end monitor
-
Flexible display configurations
-
Touch screen operation with fixed keys and jog dial
-
Modular expansion to suit different clinical applications
-
Up to 3 hours internal battery operation
-
Supplied with accessories and roller stand
Optional Modules (Configuration Dependent)
-
HR-810 haemodynamic unit
-
HCP-810 three-channel recorder
-
HDP-810 EtCO₂ sidestream (Oridion)
-
HLX-801 EtCO₂ mainstream (Capnostat)
-
CU-810 internal telemetry module
-
Extension port unit
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Patient monitor |
| Brand | Fukuda Denshi |
| Model | DS-8100 |
| Display Size | 10.2-inch colour LCD |
| Display Type | Wide colour screen |
| Operation | Touch screen, keys and jog dial |
| Battery Operation | Up to 3 hours |
| Dimensions (W × D × H) | 300 × 75 × 265 mm |
| Weight | Approx. 3.5 kg |
| Mounting | Supplied with roller stand |
| Condition | Second hand |
What’s Included
-
Fukuda Denshi DS-8100 patient monitor
-
Accessories (as supplied)
-
Roller stand
