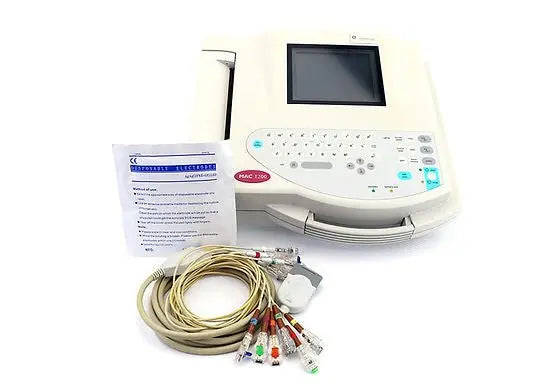

GE Marquette MAC 1200ST ECG machine

MAC® 1200 ECG Machine – 12-Lead Digital Electrocardiograph System

The MAC® 1200 is a compact and portable 12-lead ECG machine designed for use in medical facilities including hospitals, clinics, and research settings. It features user-friendly controls and versatile options for ECG acquisition, display, and printing.

Key Features:

• Digital 12-lead ECG recording with simultaneous signal acquisition

• One-touch operation for data collection, analysis, and storage

• Lightweight and portable with a carry handle

• Flexible data entry with 4 user-defined patient data fields

• Waveform display for rhythm and signal quality checks

• Optional features include extended data storage and secure archiving modes

• Supports Z-fold full-size thermal paper printing

• Battery operation available for mobile use

Physical Specifications:

• Dimensions: 370 x 320 x 94 mm (14.5 x 12.6 x 3.7 in)

• Weight: 5.6 kg (12.3 lb) including battery

• Display: 320 x 240 pixel LCD, backlit and contrast-adjustable

• Keyboard: Tactile membrane keypad

• Printer: Thermal array, 8 dots/mm resolution, Z-fold paper

• Paper speeds: 5, 25, 50 mm/s

Performance Specifications:

• Input Type: Type CF (IEC standard)

• Sampling Rate: 1000 samples/sec/channel

• Dynamic Range: ±10 mV AC / ±600 mV DC

• Resolution: 5 µV

• Frequency Response: 0.08–150 Hz

• Input Impedance: >100 MΩ

• Common Mode Rejection: >140 dB

• Pacemaker Detection: All leads

• Leakage Current: <10 µV

Power & Battery:

• Power Supply: 95–240V AC, 49–64 Hz

• Battery: NiCad 18V, 1.3 Ah

• Charge Time: Approx. 4 hours

Environmental Operating Conditions:

• Temperature (operating): +10°C to +40°C

• Humidity: 25–95% RH

• Operating Pressure: 700–1060 hPa

• Transport Limits: -30°C to +60°C

Please note that the trolley stand is not included in the shipping cost for the GE Marquette MAC 1200ST ECG machine. The stand is available at no additional charge if collected in person, or you may arrange your own shipping method.
