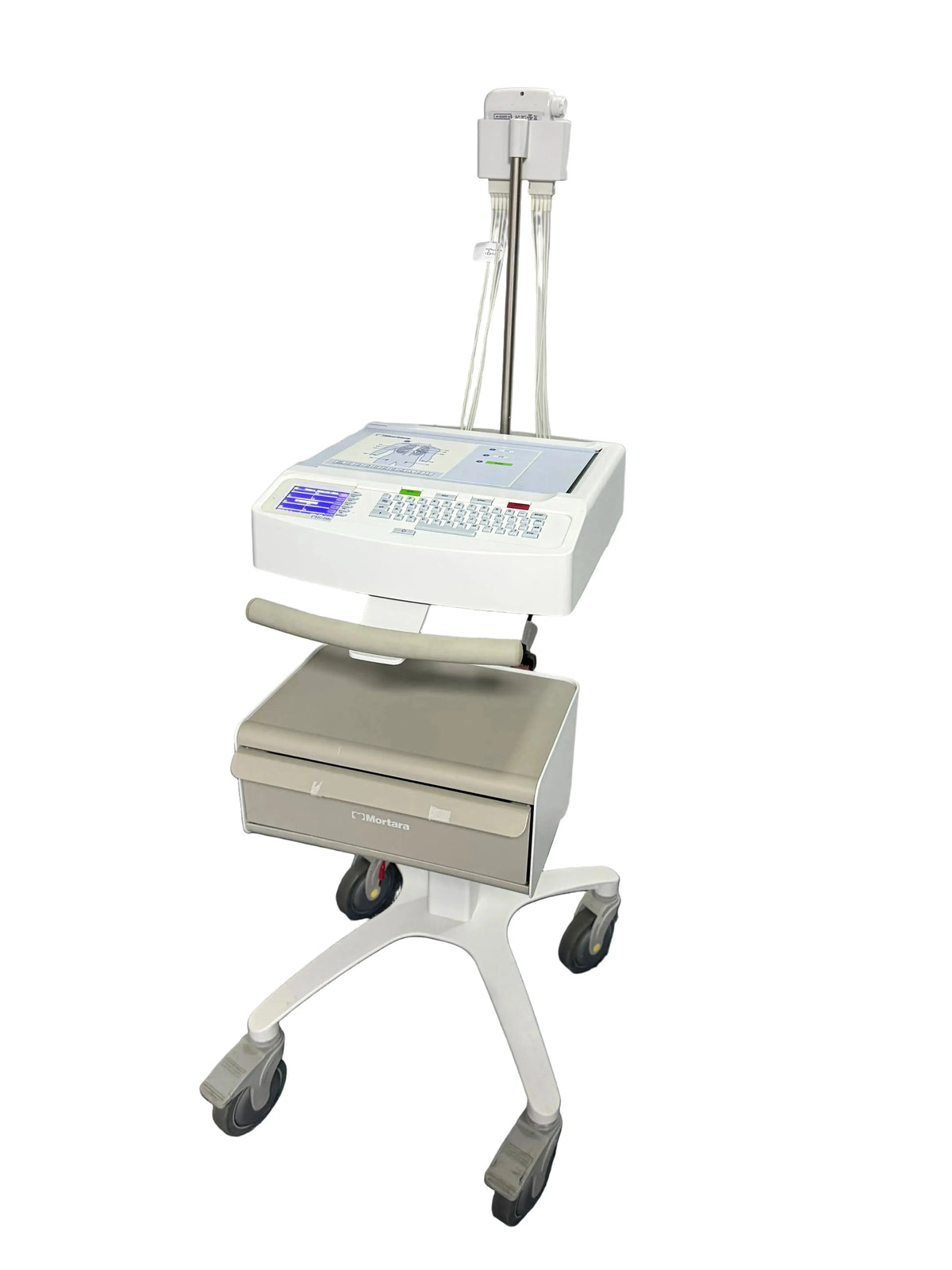

Mortara ELI250c ECG Machine with ECG Leads on Trolley

Name: Mortara ELI250c ECG Machine with ECG Leads on Trolley
Brand: Mortara
SKU: MOE2030W01
Price: 499.99 GBP
Availability: OutOfStock

MortaraSKU MOE2030W01

Price

£499⁹⁹

Price shown excludes VAT.

VAT relief available on this product

Eligible customers can claim VAT relief on this product at checkout.

Trolley Stand With Trolley Stand

Quantity

Unit price£499.99

Total£499.99

Prefer a quote?

Request a quote

Key attributes

Brand: Mortara
Category: Electrocardiogramme
SKU: MOE2030W01
Options: 2 to choose from

ECG Machine Mortara ELI 250c – Resting Electrocardiograph on Trolley

The ECG Machine Mortara ELI 250c is a compact, portable 12-lead resting electrocardiograph designed for efficient ECG acquisition, review, storage, and transmission in clinical environments. Supplied on a trolley with ECG leads, this system supports streamlined workflows across outpatient clinics, wards, and diagnostic departments.

The ELI 250c features a high-resolution colour display that enables real-time 12-lead preview and post-acquisition review. Integrated connectivity options allow bidirectional communication via internal modem, LAN, or wireless LAN with Mortara platforms such as E-Scribe™ and Athena™, as well as third-party EMR, HIS, and PACS systems using XML, PDF, and DICOM® formats. Best 10 technology captures the best 10 seconds of ECG data from system memory, reducing repeat recordings.

Wireless data acquisition options enhance workspace flexibility, while advanced signal processing supports pacemaker spike detection and lead reversal alerts to help reduce acquisition errors. The intuitive interface includes dedicated buttons for ECG acquisition, rhythm printing, and data transmission.

Key Features

12-lead resting electrocardiograph with trolley and ECG leads
High-resolution colour display for ECG preview and review
VERITAS™ interpretation algorithm with age and gender-specific criteria
Best 10 technology to minimise repeat ECGs
Pacemaker spike detection with high sampling rate
Lead reversal indicators for chest and limb leads
Wired or wireless acquisition module options
Bidirectional connectivity via modem, LAN, or WLAN
Compatible with EMR, HIS, and PACS systems
Integrated thermal printer with multiple print formats

Technical Specifications

Specification	Details
Instrument Type	12-Lead Electrocardiograph
Input Channels	Simultaneous acquisition of all 12 leads
Standard Leads	I, II, III, aVR, aVL, aVF, V1–V6
Display	¼ VGA colour LCD, 320 × 240
Sampling Rate	40,000 s/s/channel (pacemaker); 1,000 s/s/channel (recording/analysis)
Frequency Response	0.05–300 Hz
Filters	Baseline, 50/60 Hz AC, low-pass 40/150/300 Hz
A/D Conversion	20-bit (1.17 µV LSB)
Gain Settings	5, 10, 20 mm/mV
Printer	Thermal, Z-fold paper A4 or 8.5 × 11 in
Storage Capacity	Up to 40 ECGs standard, optional up to 200
Device Classification	Class I, Type CF, defibrillation-proof
Power Supply	100–240 VAC, 50/60 Hz; internal rechargeable battery
Dimensions	39.4 × 43.2 × 10.2 cm
Weight	Approx. 5.1 kg (with battery, without paper)
