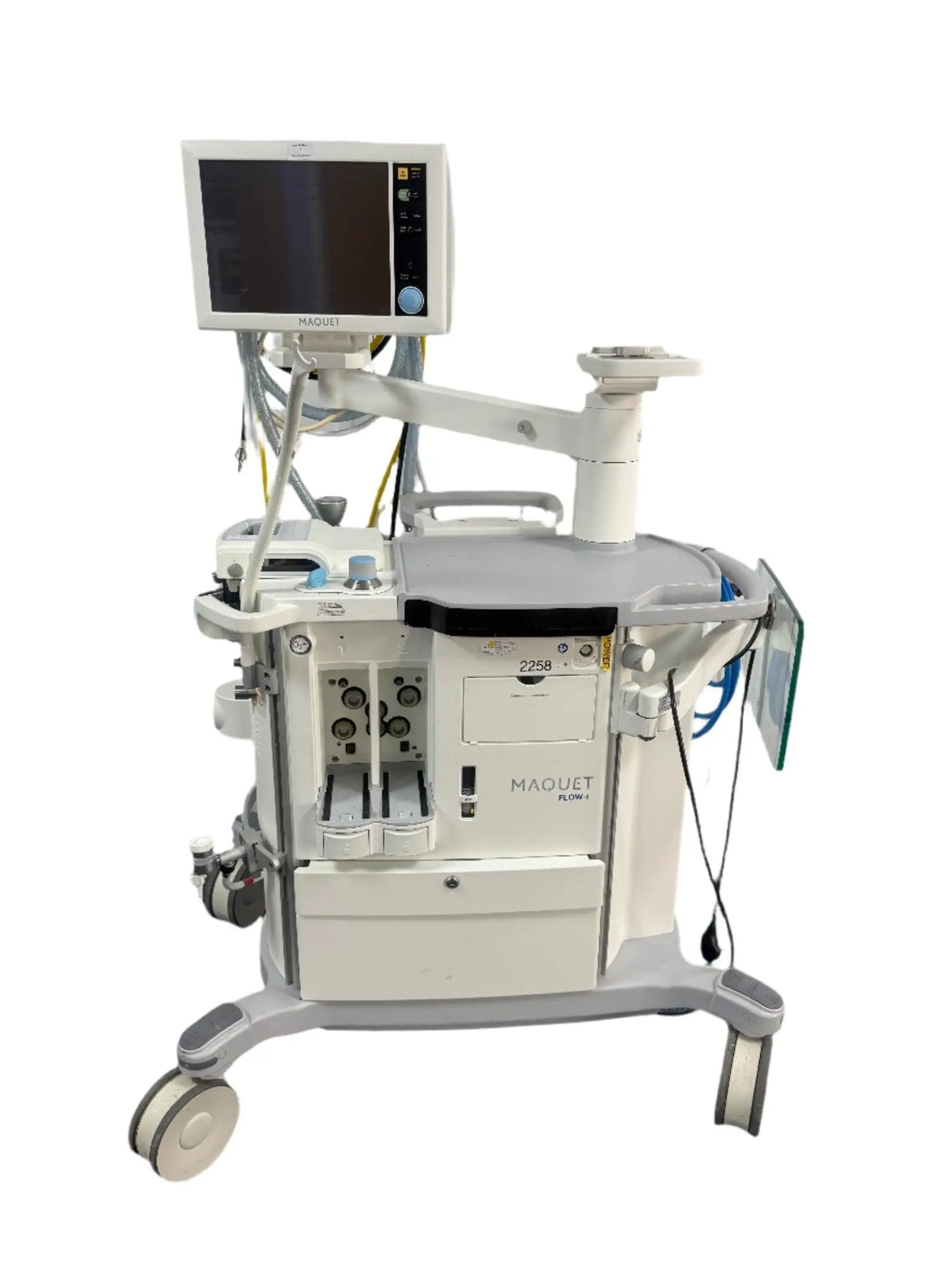

Maquet Flow-i Anaesthesia Machine with Hose - System Version 4.9- Software Version 04.09.00

Cutting-Edge Maquet Flow-i Anaesthesia Machine

Along with a choice of storage options, the FLOW-i C20 features the standard rotatable arm for flexible screen positioning, tiltable screens to allow for maximised screen visibility and vertical and horizontal rails for auxiliary equipment. The inclusion of storage options and combinations means the FLOW-i C20 is a mobile ventilation and anesthesia unit that can be used across the widest range of patient groups, including those with acute respiratory demands and pediatric patients. FLOW-i is an anaesthesia machine incorporating ventilation technology based on the highly regarded Maquet SERVO platform. It has a re-breathing device called the MAQUET VOLUME REFLECTOR which replaces traditional breathing circuits and provides additional security for the patient.

• Set tidal volume is accurately delivered in spite of high abdominal and thoracic pressure, helping to avoid hypoventilation.
• Fast rise time and high flow rates adapt to varying inspiratory demand in the presence of increasing airway pressure.
• Sensitive triggering improves synchrony in pediatric patients and those with decreased respiratory drive.
• Controlled pressure drop during expiration decreases expiratory resistance and work of breathing, in addition to minimizing auto-PEEP at higher respiratory rates.
• Maintains consistent and accurate PEEP levels

Vaporiser is not included. Machine only

General

• Base system weight (depending on configuration): Approx. 155 kg Approx.
• Dimensions of base plate: 692 x 985 mm
• Height (1 drawer): n/a
• Height (2 drawers): 860mm
• Height (3 drawers): 1030mm
• Drawers2-3 (1 lockable)
• Vertical shafts for optional horizontal rails: 4
• Wheels: Four wheels (diameter 150 mm) with separate brakes
• Working surface/writing table Approx.: 420 x 600 mm
• Additional writing table: 397 mm x 250 mm
• Reading lamp: Adjustable LED light integrated into the display arm

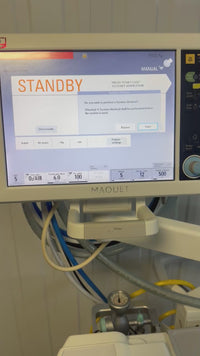

Display

• Type LCD touch screen, complete with 11 membrane switches and one rotary knob
• Size 432 mm x 295 mm
• Placement Attached to display arm
• Viewing area 15”, 1024×768 pixels with a palette of 512 colors
• Waveforms Up to 6 waveforms, user configurable
• Trends Graphic display, 1 to 24-hour resolution
• Numeric display, 1 to 60-minute resolution

Environment

• Ambient temperature (operating Conditions): +15°C to +35°C (+60°F to +95°F) Ambient temperature (Desflurane: +15°C to +30°C,+60°F to +85°F)
• Ambient temperature (Non-operating Conditions): -25°C to +60°C (-15°F to +140°F)
• Battery (operating Conditions): +15° C to +35°C (+60°F to +95°F)
• Battery (Non-operating Conditions): +5°C to 40°C (40°F to 104°F)
• Relative humidity (non-condensing) (operating Conditions): 15% to 95%
• Relative humidity (non-condensing) (Non-operating Conditions): < 95%
• Atmospheric pressure (operating Conditions): 700 hPa – 1060 hPa
• Atmospheric pressure (Non-operating Conditions): 470 hPa – 1060 hPa

Download Manual here

Advanced Anaesthesia Delivery

The Maquet Flow-i Anaesthesia Machine is designed for precision and safety in anaesthesia administration. This innovative device leverages advanced technology to deliver accurate dosages, thus ensuring optimal patient outcomes. The System Version 4.9 allows medical professionals to monitor and adjust anaesthesia levels in real-time, enhancing overall patient safety because it minimizes the risk of under or over-medication. With intuitive controls, it's easier for doctors to focus on the patient rather than complex machinery.

User-Friendly Interface

This anaesthesia machine features a user-friendly interface that simplifies operation for healthcare professionals. A sleek display shows real-time data and alerts, allowing for quick assessment of the patient's condition. Moreover, the software version 04.09.00 includes educational tools that guide users through different settings and functionalities. Therefore, even less experienced staff can operate it confidently, which improves workflow efficiency in high-pressure situations.

Durable and Reliable Design

The Maquet Flow-i's build quality assures durability and reliability, crucial for any medical environment. Made with high-quality materials, this anaesthesia machine withstands rigorous use, so it can be trusted during lengthy surgical procedures. Additionally, it is designed to integrate seamlessly with other hospital systems, promoting versatility in anaesthesia practices. This adaptability makes it a preferred choice in modern healthcare settings, as it supports a wide range of surgical procedures.

Information on this page is provided for guidance and does not replace advice from a qualified clinician. Always read the manufacturer's instructions before use, and check that a device is suitable for the patient and the prescribed therapy.
