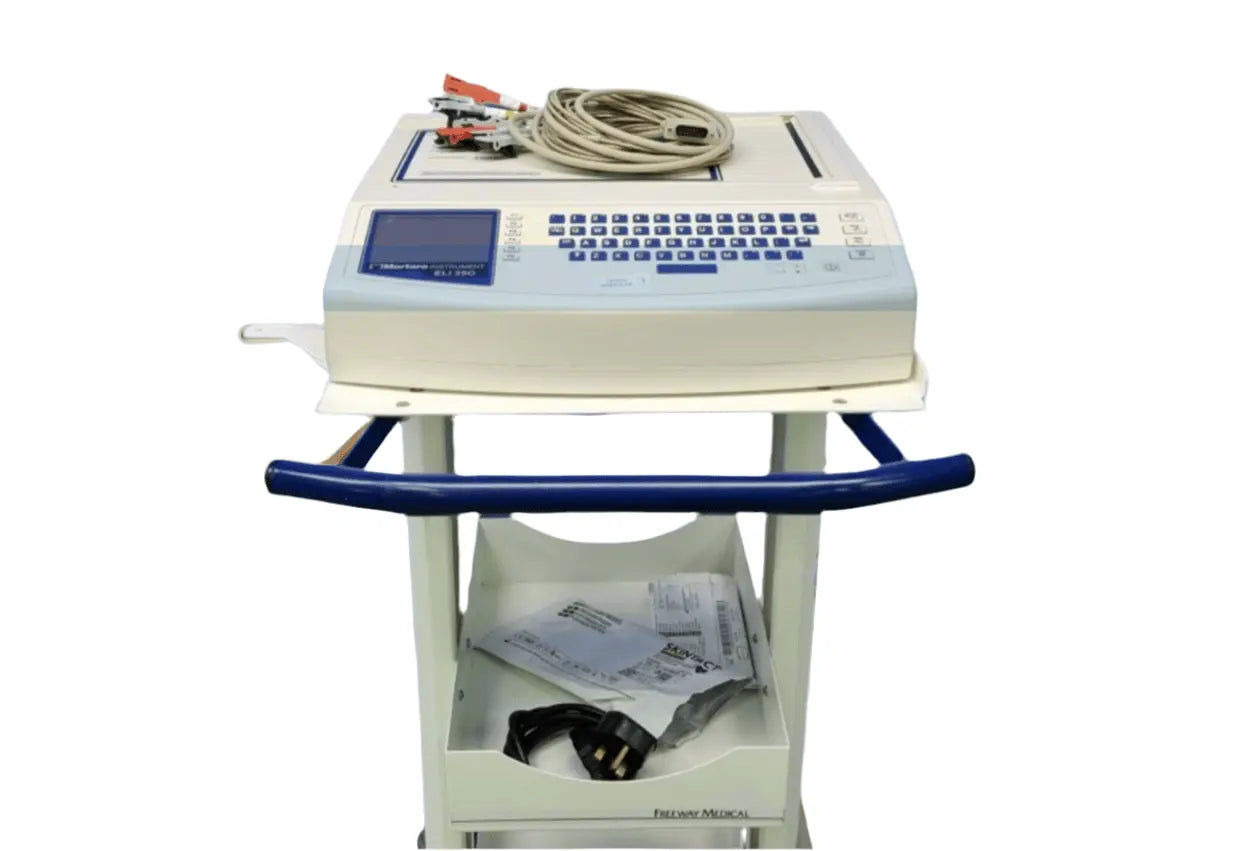

Mortara Instrument ELI 250 ECG Machine with ECG Leads

Mortara Instrument ELI 250 ECG Machine with ECG Leads

The ECG machine Mortara Instrument ELI 250 is a compact, high-performance 12-lead electrocardiograph designed for accurate and efficient cardiac diagnostics in hospitals, clinics, and primary care settings. Built with a lightweight yet robust design, this ECG machine is ideal for mobile use while still offering advanced clinical functionality expected in professional environments.

The Mortara ELI 250 features a high-resolution colour LCD that allows real-time preview and post-acquisition review of ECG waveforms in multiple lead formats. Its Best 10 function automatically selects the most diagnostically accurate 10 seconds of ECG data, reducing the need for repeat recordings and improving workflow efficiency. Wireless data acquisition further enhances flexibility by allowing 12-lead ECG capture without restrictive cabling around the patient.

Powered by the widely respected Mortara VERITAS™ ECG interpretation algorithm, this ECG machine provides age- and gender-specific analysis, offering clinicians a reliable second opinion for resting ECG interpretation. With comprehensive filtering, high sampling rates, and multiple print and rhythm formats, the ELI 250 supports both adult and paediatric ECG assessments. Internal storage allows archiving of ECGs directly on the device, making it suitable for busy clinical environments.

Features

• Portable 12-lead ECG machine with compact, lightweight design

• High-resolution colour LCD for live ECG preview and review

• Best 10 technology for optimal ECG data selection

• Wireless 12-lead data acquisition capability

• Mortara VERITAS™ resting ECG interpretation algorithm

• Multiple waveform, rhythm, and report print formats

• Internal ECG storage with optional expansion

• Suitable for hospital, clinic, and primary care use

Technical Specifications

• Instrument type: 12-lead electrocardiograph

• Input channels: Simultaneous 12-lead acquisition

• Leads acquired: I, II, III, aVR, aVL, aVF, V1–V6

• Display: Colour LCD, 320 × 240 resolution

• Sampling rate: 40,000 s/sec/channel (pacemaker detection)

• Frequency response: 0.05–300 Hz

• Gain settings: 5, 10, 20 mm/mV

• Paper format: A4 or 8.5 × 11 inch Z-fold thermal paper

• ECG storage: Up to 40 ECGs (expandable to 200)

• Weight: 5.1 kg (with battery, without paper)

• Dimensions: 39.4 × 43.2 × 10.2 cm

• Power: Universal AC with internal rechargeable battery

What’s Included

• 1 × Mortara Instrument ELI 250 ECG Machine

• 1 × ECG lead set

Note: Rollstand is not included. Free pickup or self-arranged collection/shipping is available.

Information on this page is provided for guidance and does not replace advice from a qualified clinician. Always read the manufacturer's instructions before use, and check that a device is suitable for the patient and the prescribed therapy.
