Evac+Chair 300H MK5 Evacuation Chair
Evac+Chair 300H MK5 Emergency Evacuation Chair
The Evac+Chair 300H MK5 is the UK's most popular single-operator emergency evacuation chair, enabling the safe, controlled descent of mobility-impaired individuals down a staircase during fire evacuations and other building emergencies. Manufactured in the UK with 35 years of design experience behind it, the MK5 builds on the success of the MK4 with upgraded kickstand geometry, repositioned and strengthened 50mm wheels for improved weight distribution, enhanced padding and an improved safety belt for greater passenger comfort. The unique friction belt system with self-braking track controls the smoothness and speed of stair descent automatically, eliminating the risk of acceleration on steep steps. Double-handed anti-slip grip provides the operator with secure, stable control throughout the descent. At just 9.5kg, the 300H MK5 is lightweight enough for any trained staff member to deploy and operate. Suitable for staircases inclined at 28 to 40 degrees, with a 182kg passenger capacity. CE marked, TUV certified and MHRA registered. Five-year warranty.
Key Features
- Unique friction belt system - self-braking track controls the speed and smoothness of stair descent automatically; prevents acceleration on steep or uneven steps
- Single-person operation - designed to be deployed and operated by one trained member of staff without assistance
- Double-handed anti-slip grip - dual handle configuration gives the operator secure, stable control throughout the descent
- Upgraded kickstand with repositioned wheels - improved weight distribution for smoother, more stable descent compared to MK4
- Strengthened 50mm wheels - redesigned for increased durability and stability on standard stair treads
- Hammock-style sling seat - ensures the passenger sits back correctly in the chair and cannot tip forward during descent
- Sewn-in safety belt - secures the passenger throughout the evacuation without requiring a separate restraint step
- Optional forehead restraint - additional head support for passengers with limited head control
- 9.5kg lightweight design - folds compactly for wall mounting or storage; easy to deploy quickly in an emergency
- Supplied with photoluminescent signage - wall mounting hooks and glow-in-the-dark signs included for prominent, visible storage location

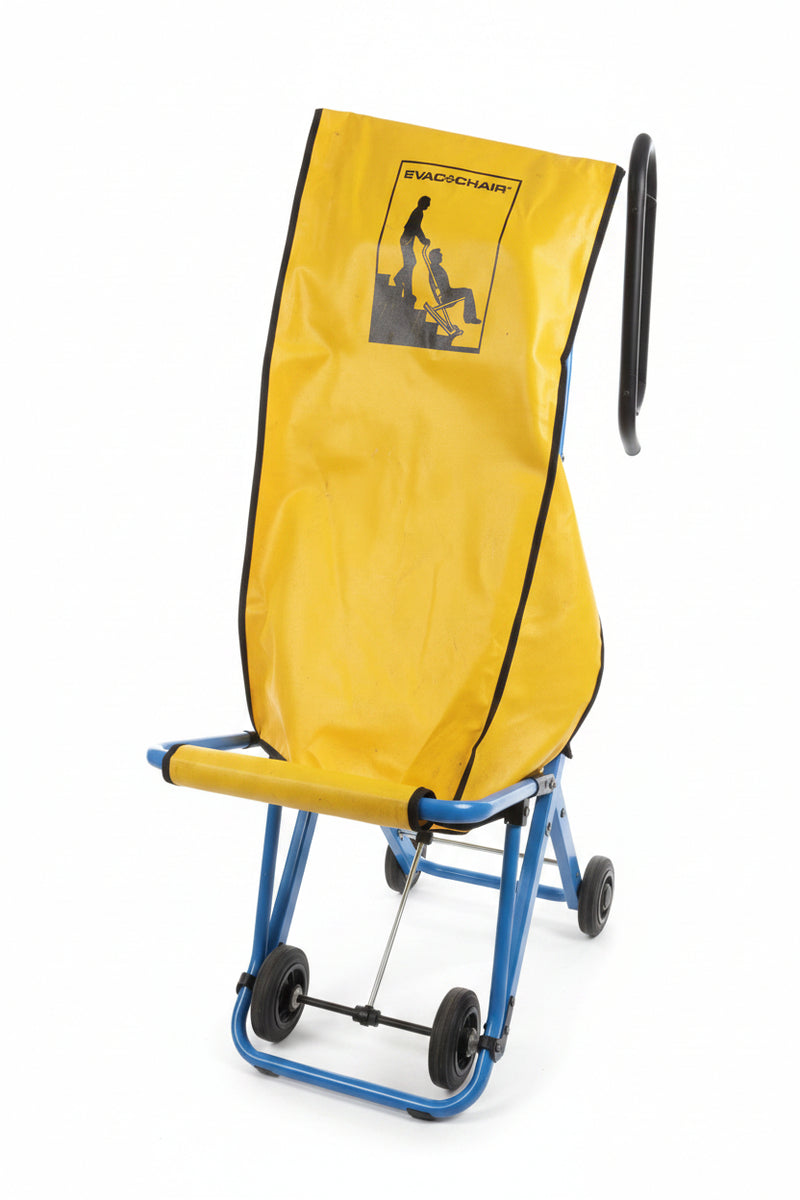

- Dust cover included - protects the chair during storage
- Simplified graphical instructions - step-by-step pictorial user guide for fast reference in an emergency
- CE marked and TUV certified - independently tested and certified to European safety standards
- MHRA registered - Class I medical device
- Manufactured in the UK - 35 years of evacuation chair design and manufacturing experience
- DDA compliant
- 5-year warranty - based on annual service and maintenance
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Evac+Chair International |
| Model | 300H MK5 |
| Passenger capacity | 182 kg (400 lbs) |
| Chair weight | 9.5 kg |
| Stair angle range | 28° to 40° |
| Height (folded) | 1100 mm |
| Width (folded) | 520 mm |
| Depth (folded) | 210 mm |
| Height (unfolded) | 1350 mm |
| Width (unfolded) | 520 mm |
| Depth (unfolded) | 810 mm |
| Wheel diameter | 50 mm |
| Certification | CE marked, TUV certified |
| Regulatory registration | MHRA (Class I medical device) |
| Compliance | DDA compliant |
| Country of manufacture | United Kingdom |
| Warranty | 3 Months |
| ISO accreditation | ISO 9001, ISO 13485 |
What's Included
- Evac+Chair 300H MK5 evacuation chair
- Wall mounting hooks
- Photoluminescent signage
- Vinyl dust cover
- Simplified graphical instruction card
- Full colour user guide
