Viamed VM-2500-S Sidestream Capnograph with ISA CO2 Analyser, Veterinary, Pre-owned

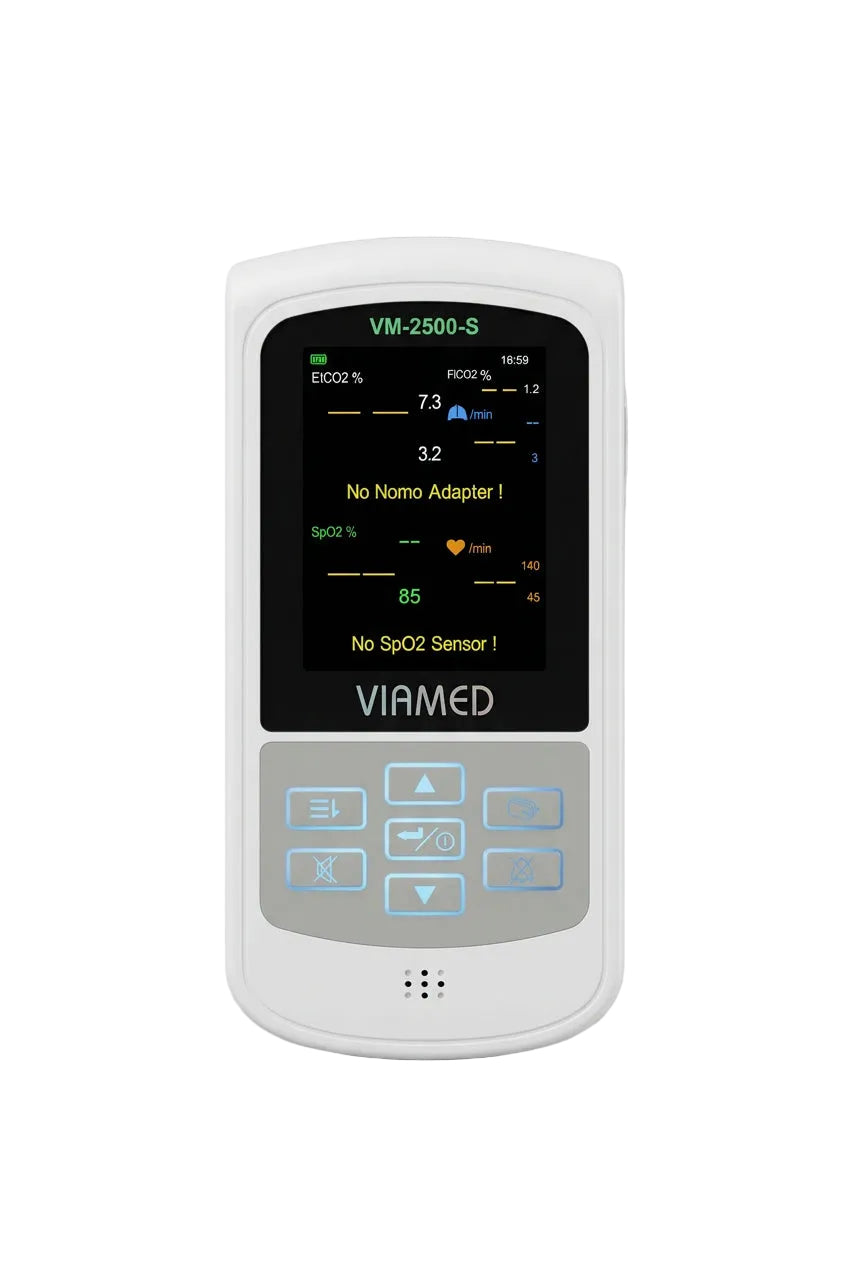

The VM-2500-S is Viamed's handheld sidestream capnograph, part number 4410540 in the veterinary configuration, drawing a gas sample through a NomoLine style sampling line to an ISA CO2 analyser inside the unit. It displays end tidal and inspired carbon dioxide, saturation, respiration rate and pulse rate, with a capnogram and a plethysmogram, and it works on intubated and non-intubated patients alike.

That last point is the whole reason to choose sidestream in a veterinary practice. A mainstream analyser sits in a breathing circuit, so it can only monitor a patient who is intubated and connected. A sidestream line samples from wherever it is placed: at the airway adapter on a circuit, through a Luer connector, or taped near the nares of an animal breathing on its own. That covers the periods when capnography is usually abandoned and when respiratory depression is most likely, namely mask induction, sedation, and the recovery kennel after the tube comes out.

Sidestream's old weakness was the sample line, and this design is built around removing it. The sampling lines use a gas selective water removal tubing rather than a conventional trap, so condensation and secretions are dealt with in the line itself and there is no water trap to empty and no pump drawing moisture into the analyser. The lines carry an integrated bacteria filter with low dead space, and come in a short term form rated to 24 hours and a long term form rated to 72 hours. Sample flow is 50 ml per minute across all applications, which is low enough not to steal meaningful volume from a small patient.

The ISA analyser measures 0 to 15 vol per cent carbon dioxide to an accuracy of plus or minus 0.2 vol per cent plus 2 per cent of the reading, across a respiration rate range of 0 to 150 breaths per minute, with a rise time of 200 ms or less and a warm up under ten seconds. Accuracy is specified to EN ISO 21647 and EN 864. The unit records a trend point every eight seconds and transfers data to a computer over USB. Supplied pre-owned, and the points below set out what comes with it.

References

Reference	4410540
Brand	Viamed
Model	VM-2500-S
Measurement principle	Sidestream, sample drawn to the analyser
Analyser	ISA CO2
Patient group	Veterinary, intubated and non-intubated
Mainstream version in this range	VM-2500-M, reference 4410530, a separate model
Multi-site Y sensor clip, small	0025010
Multi-site Y sensor clip, medium	0025011
Multi-site Y sensor clip, large	0025012
Condition	Pre-owned

Features

Monitors intubated and non-intubated patients, so capnography continues through mask induction, sedation and recovery.
Sampling lines with gas selective water removal tubing, so there is no water trap to empty.
Integrated bacteria filter with low dead space in the sampling line.
Sample flow of 50 ml per minute across all applications, low enough not to steal meaningful volume from a small patient.
Sampling lines in short term form rated to 24 hours and long term form rated to 72 hours.
Carbon dioxide measured across 0 to 15 vol per cent, to plus or minus 0.2 vol per cent plus 2 per cent of the reading.
Respiration rate from 0 to 150 breaths per minute.
Rise time of 200 ms or less.
Warm up in under ten seconds.
Accuracy specified to EN ISO 21647 and EN 864.
End tidal and inspired carbon dioxide, saturation, respiration rate and pulse rate, with capnogram and plethysmogram.
Trend point recorded every eight seconds, with USB transfer to a computer.
Menus in English, Dutch, French, German, Italian, Swedish and Russian.

Points to note before ordering

No power supply and no AA cells are supplied with this unit. The VM-2500-S runs from four AA cells or from its rechargeable pack, and the pack is charged through the mains supply. Without either, the unit will not switch on. Elarix Medical reads the required supply rating from the unit and states it in writing before dispatch, confirms whether the rechargeable pack is present and holding charge, and quotes a matching United Kingdom supply and a set of cells alongside.
Veterinary device. This is the veterinary configuration and is intended for animals. It is not supplied for use on people.
Sampling lines are the running cost. They are single patient consumables, rated to 24 hours in the short term form and 72 hours in the long term form, and they are ordered as ongoing stock rather than once with the monitor. Elarix Medical confirms in writing which lines, if any, come with this unit and quotes further stock.
Saturation sensor type. The unit takes either a lingual sensor or a multi-site Y sensor, and the Y clips come in three sizes, 0025010 small, 0025011 medium and 0025012 large. Elarix Medical confirms which sensor and which clip size are present.
Pre-owned condition and commissioning. Marks to the case consistent with practice use. To be electrically safety tested and function checked, with the carbon dioxide reading verified against a calibration test gas and the sampling line path checked for flow, before clinical use. Elarix Medical photographs the actual unit on request.

Tekniset erittelyt

Brand: Viamed
Model: VM-2500-S
Reference: 4410540
Condition: Pre-owned
Device type: Handheld sidestream capnograph with pulse oximetry
Patient group: Veterinary, intubated and non-intubated
Measurement principle: Sidestream, sample drawn through a line to the analyser
Analyser: ISA CO2
Carbon dioxide range: 0 to 15 vol per cent
Carbon dioxide accuracy: Plus or minus 0.2 vol per cent plus 2 per cent of the reading
Respiration rate range: 0 to 150 breaths per minute
Rise time, carbon dioxide: 200 ms or less
Sample flow: 50 ml per minute, all applications
Warm up: Under 10 seconds
Water handling: Gas selective water removal tubing in the sampling line, no water trap
Sampling line filter: Integrated bacteria filter, low dead space
Sampling line service life: 24 hours short term, 72 hours long term
Displayed values: End tidal and inspired carbon dioxide, saturation, respiration rate, pulse rate
Displayed waveforms: Capnogram and plethysmogram
Trend interval: One data point every 8 seconds
Data transfer: USB to a computer
Power, disposable: Four AA cells, not supplied
Power, rechargeable: Rechargeable pack, presence and condition confirmed before dispatch
Mains supply: Not supplied, required rating read from the unit and stated before dispatch
Measurement standards cited for the analyser: EN ISO 21647 and EN 864
Menu languages: English, Dutch, French, German, Italian, Swedish and Russian
Cleaning: Surface decontamination to local policy, no immersion
Commissioning: Electrical safety test, function check, carbon dioxide verified against test gas, sampling path flow checked
