Prunus Boaray 5000D Ventilator System (Mfd 2020)

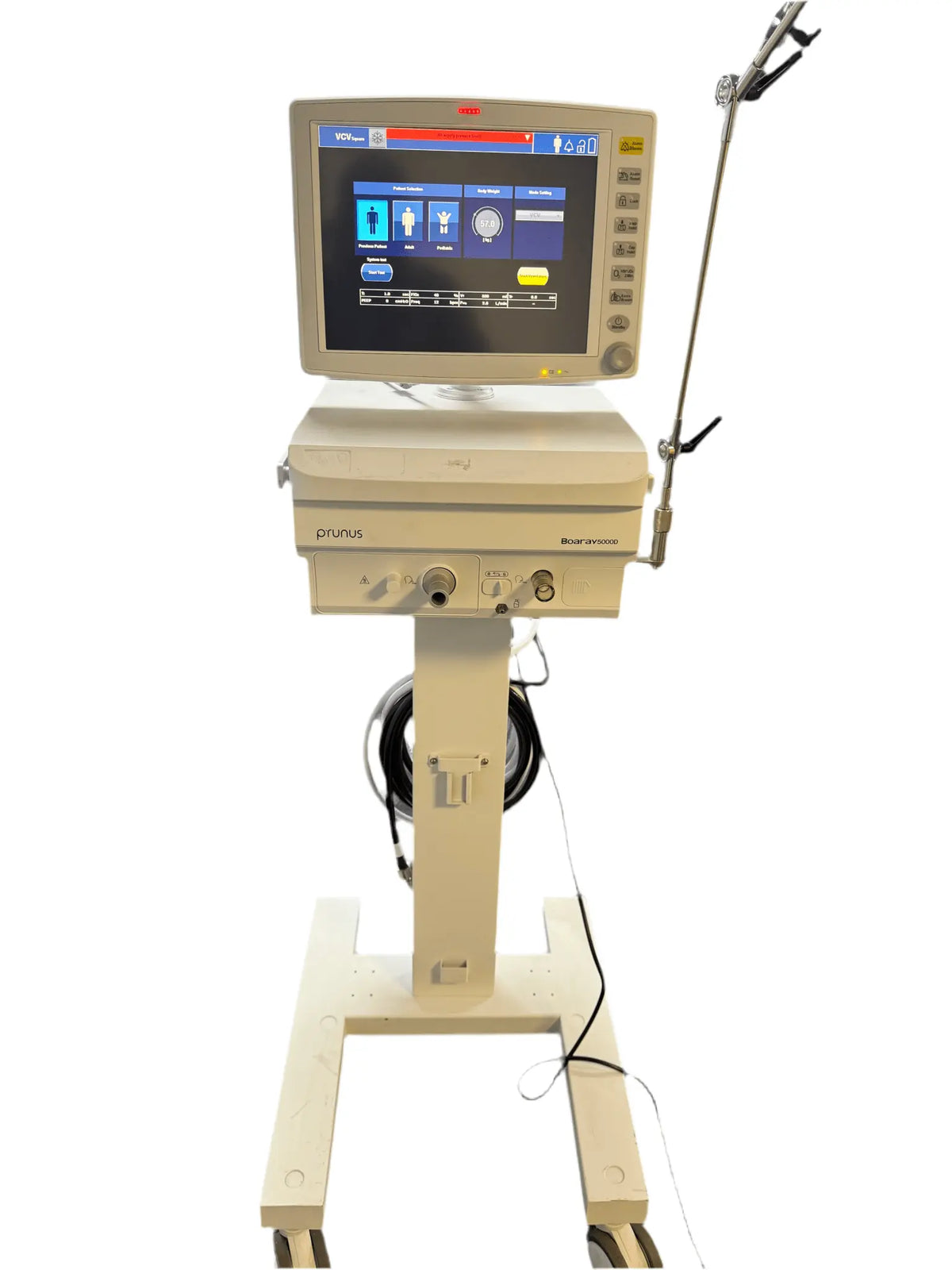

Prunus Boaray 5000D Intensive Care Ventilator

The Prunus Boaray 5000D Intensive Care Ventilator is a WHO-designated model designed to provide advanced respiratory support across a wide range of clinical scenarios. Suitable for infants to adults, it features invasive and non-invasive ventilation modes, as well as high-flow oxygen therapy, ensuring versatile and efficient patient care.

Engineered for optimal patient-ventilator synchronization, it incorporates a high-speed proportional solenoid valve, an active expiratory valve, and Flow Support technology to enhance breathing coordination. With a 15-inch color touchscreen, user-friendly interface, and compact design, the Boaray 5000D streamlines clinical workflow, making it an ideal solution for intensive care settings.

Key Features & Benefits

✔ Advanced ventilation modes – Includes VCV, PCV, SIMV (P) + PS, SIMV (V) + PS, SPONT/CPAP, PRVC, DualPAP, NPPV, Manual, and Standby modes.
✔ 15-inch color touchscreen – Adjustable viewing angle for intuitive operation.
✔ Human-machine interaction design – Simplified controls for enhanced usability.
✔ Comprehensive patient support – Suitable for infants, paediatric, and adult patients.
✔ High-performance air compressor – Ensures stable and reliable ventilation.
✔ Flow Support technology – Patented system for improved breathing coordination.
✔ Active expiratory valve – Allows natural breathing under any pressure.
✔ Autoclavable exhalation valve assembly – Prevents cross-infection and ensures a sterile environment.
✔ Multi-level safety system – Integrated visual and audible alarms for risk management.
✔ CO₂ and SpO₂ monitoring (optional) – Enhances patient tracking and safety.
✔ Nebulizer and synchronized air compressor (optional) – Expands clinical functionality.

Technical Specifications

🔹 Ventilation Modes: VCV, PCV, SIMV (P) + PS, SIMV (V) + PS, SPONT/CPAP, PRVC, DualPAP, NPPV, Manual, Standby
🔹 Display: 15-inch color touchscreen, adjustable angle
🔹 Patient Compatibility: Infants, paediatric, and adults
🔹 Alarm System: Multi-level visual and audible alerts
🔹 Cross-Infection Prevention: Autoclavable exhalation valve assembly
🔹 Power Supply: 100-240VAC, 50/60 Hz, 1A (Max)

Physical Dimensions & Weight

📏 Host Dimensions: 645 x 735 x 610 mm
📏 Trolley Dimensions: 225 x 805 x 555 mm
⚖ Host Weight: 45 kg
⚖ Trolley Weight: 22.5 kg

📞 Need assistance? Contact us for product availability and additional details.

Information on this page is provided for guidance and does not replace advice from a qualified clinician. Always read the manufacturer's instructions before use, and check that a device is suitable for the patient and the prescribed therapy.
