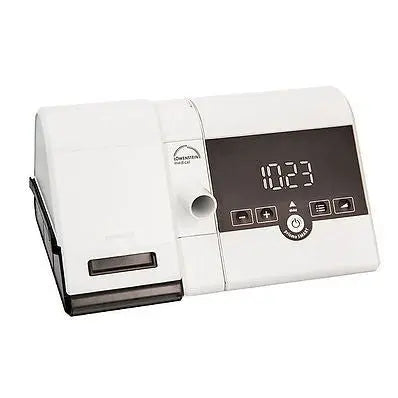

Lowenstein Medical Prisma Soft Max CPAP Machine WM090TD with Bag

Lowenstein Medical Prisma Soft Max CPAP Machine WM090TD with Bag

The CPAP machine Lowenstein Medical Prisma Soft Max WM090TD is designed to provide precise, comfortable and effective treatment for Obstructive Sleep Apnoea. Using advanced Forced Oscillation Technique, it distinguishes between obstructive and central events, allowing intelligent therapy adjustments. Its ultra-quiet performance of approximately 26 dB(A) ensures a calm sleep environment, while softPAP comfort settings improve tolerance by reducing pressure during exhalation.

This CPAP machine includes an intuitive segmented display, compact dimensions and customisable APAP modes ranging from 4 to 20 cm H₂O. It weighs only 1.34 kg, making it suitable for both home and travel use. The Prisma Soft Max is compatible with prismaLINE accessories, including humidifiers and CPAP masks, giving users a complete and flexible therapy solution.

Key Features

• Forced Oscillation Technique for accurate event detection

• Ultra-quiet operation at 26 dB(A)

• Adjustable APAP pressure range 4–20 cm H₂O

• SoftPAP comfort technology

• Lightweight 1.34 kg design

• Easy-to-use segmented display

• prismaLINE accessory compatibility

Technical Specifications

• Pressure Range: 4–20 cm H₂O

• Noise Level: ~26 dB(A)

• Dimensions: 170 × 135 × 180 mm

• Weight: 1.34 kg

• Electrical Rating: Max 40 VA

• Power Interface: 24V DC

• Power Consumption:

  • Operation: 0.16 A (240V) / 0.36 A (100V)

  • Standby: 0.035 A (240V) / 0.061 A (100V)

What’s Included

• Prisma Soft Max CPAP unit

• Carry bag

• Power supply

• Optional humidifier: solde separately

prismaAQUA Humidifier (Optional)

The prismaAQUA humidifier improves comfort by warming and moistening airflow, reducing dryness and irritation. It offers pre-warming, optional heated tubing and high-efficiency humidification. Available in black or white depending on device model.

 Prisma SmartMax User Manual

Certificates Löwenstein Medical

Information on this page is provided for guidance and does not replace advice from a qualified clinician. Always read the manufacturer's instructions before use, and check that a device is suitable for the patient and the prescribed therapy.
