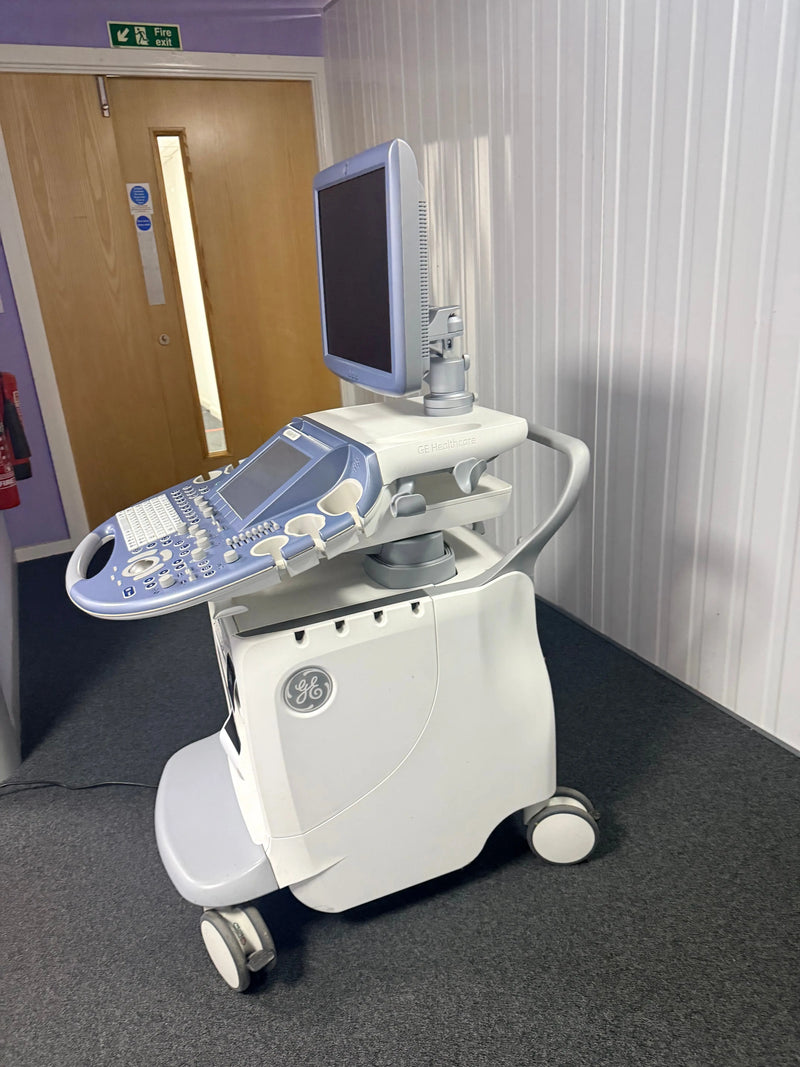

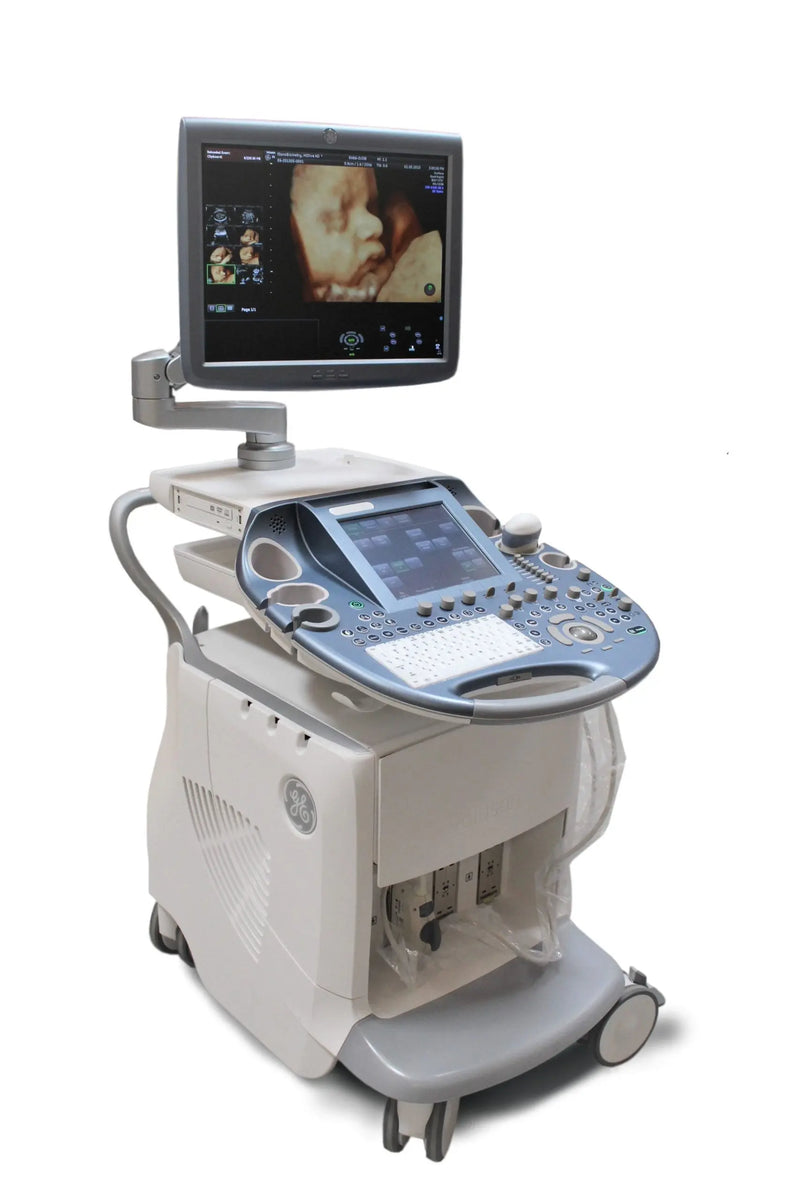

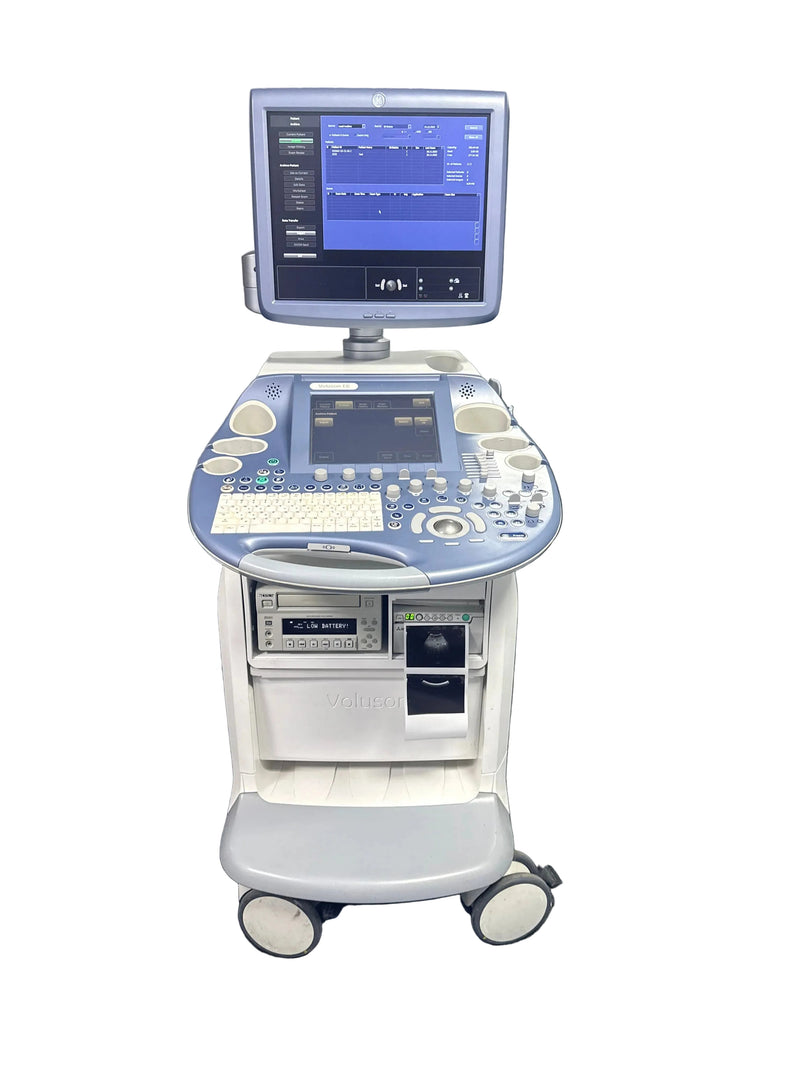

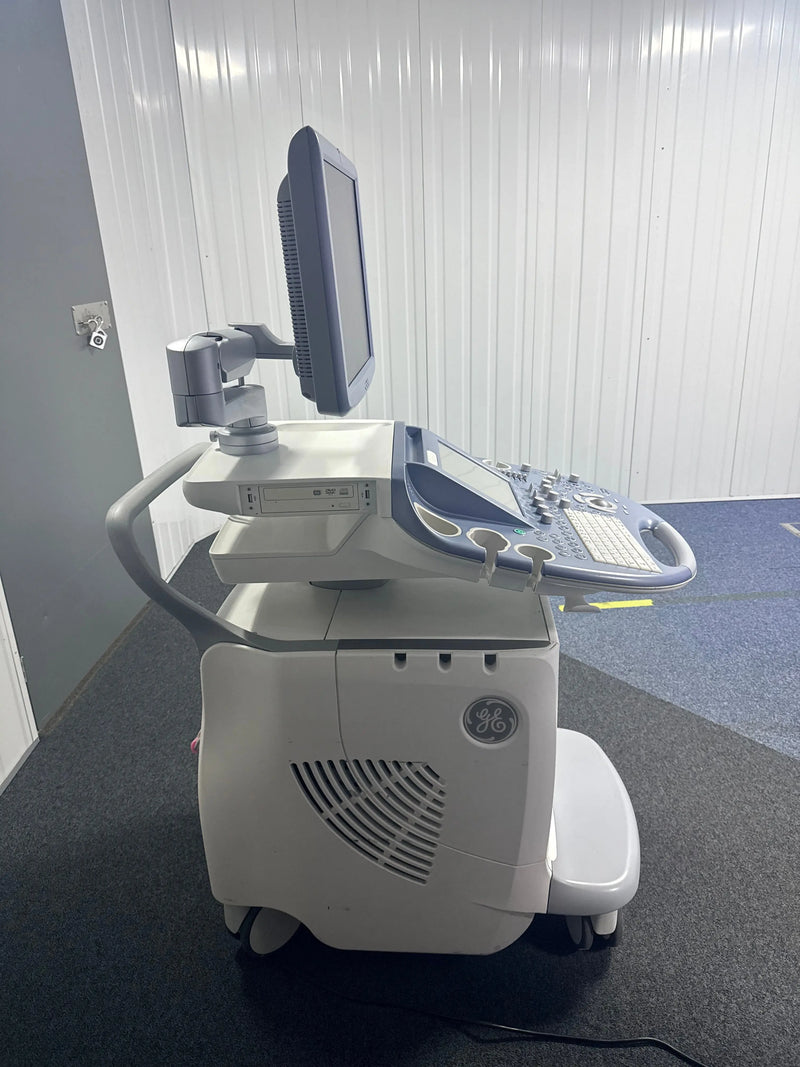

GE Voluson E6 Ultrasound Machine (2011) with Printer and DVD Recorder
GE Voluson E6 Ultrasound Machine (2011) with Printer and DVD Recorder
The GE Voluson E6 ultrasound machine is a high-end diagnostic imaging system designed primarily for obstetrics, gynaecology, and women’s health applications. Manufactured in 2011, it belongs to GE’s Voluson Expert series and delivers reliable 2D, 3D, and real-time 4D imaging for routine and advanced clinical examinations.

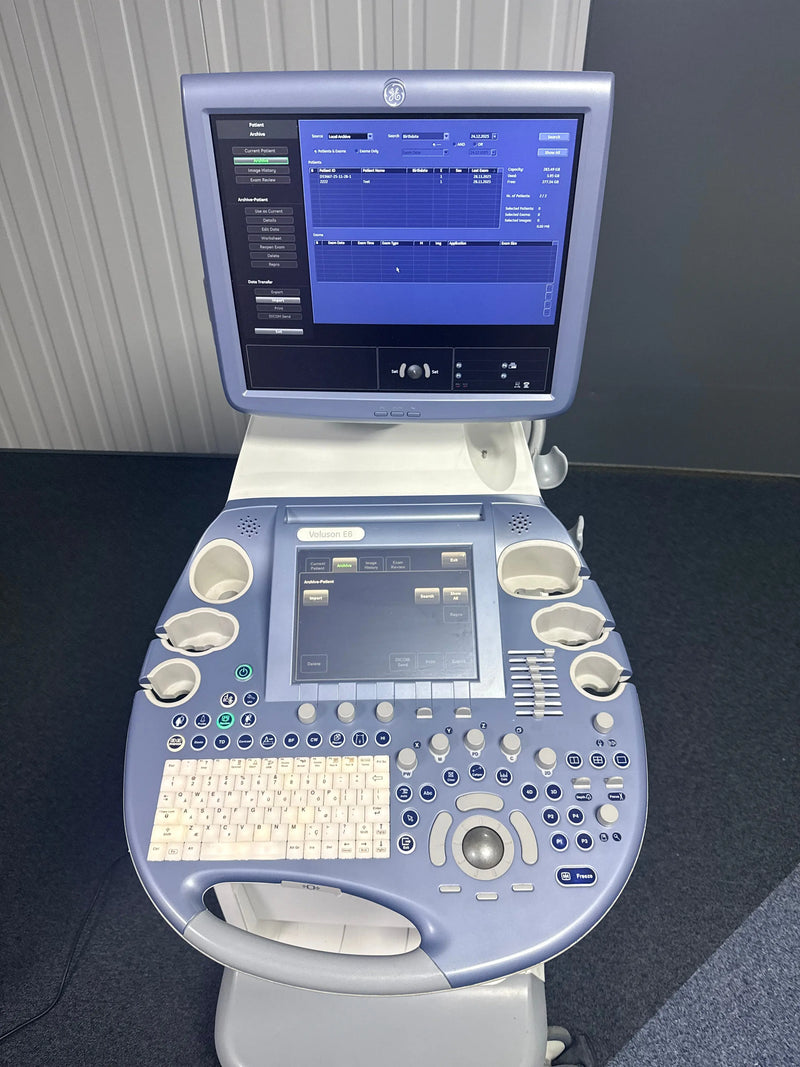

The system operates on the BT10 software platform and supports advanced workflow tools including SonoNT, VCI, and SRI imaging. A mobile console with floating keyboard, 19-inch swivelling monitor, and touchscreen interface ensures efficient workflow, while four active probe ports allow rapid transducer switching.
Features
- High-end ultrasound system for OB/GYN and women’s health
- 2D, 3D, and real-time 4D imaging capability
- BT10 software platform
- 19-inch swivelling LCD monitor
- Touchscreen user interface
- Floating ergonomic keyboard
- Four active probe ports
- Includes medical printer and DVD recorder
Technical Specifications
| Manufacturer | GE Healthcare |
|---|---|
| Model | Voluson E6 |
| Year of manufacture | 2011 |
| Software version | Voluson E6 BT10 |
| Imaging modes | 2D, Colour Doppler, Power Doppler, PW, M-mode |
| Probe ports | 4 active |
| Monitor | 19-inch swivelling LCD |
| Touchscreen | 10.1-inch |
| Console | Mobile with motorised adjustment |
Engineer’s Report Summary

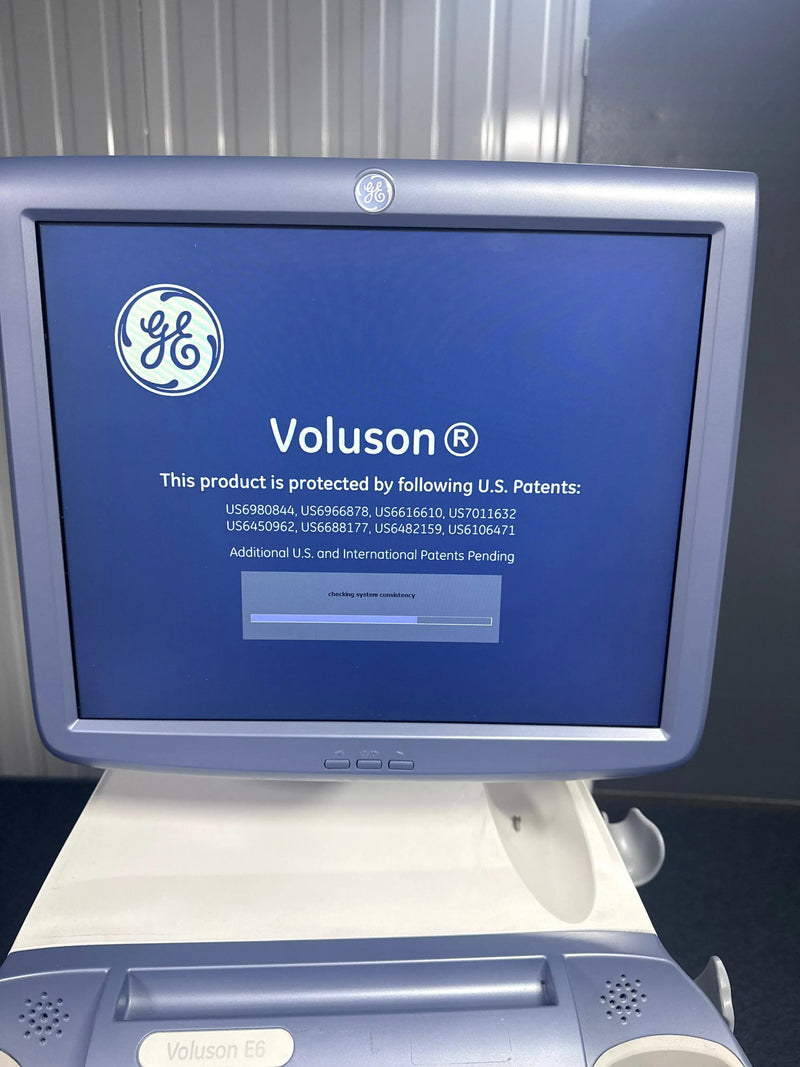

The system powers up correctly and completes initialisation. Controls, touchscreen, keyboard, trackball, gain controls, and motorised console adjustment are functional. Imaging modes including 2D, C, PD, PW, and M-mode were tested successfully. Printer is fully operational; DVD recorder powers on but was not fully tested. The system shows minor cosmetic wear consistent with age.

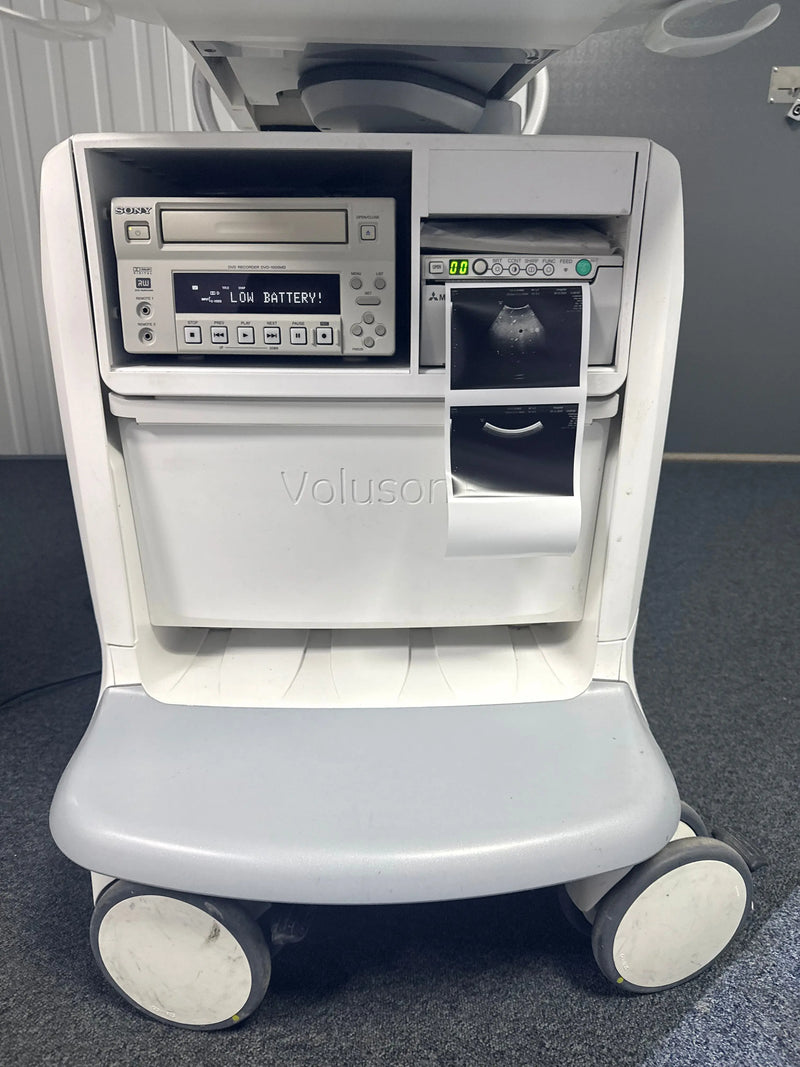

What’s Included
- GE Voluson E6 Ultrasound Machine
- Mitsubishi P90 Medical Printer
- Sony DVO-1000MD DVD Recorder
What’s Not Included
- Ultrasound probes / transducers
Compatible Probes
The GE Voluson E6 supports a wide range of GE transducers used across obstetrics, gynaecology, abdominal, vascular, cardiac, and small parts imaging. Probe compatibility depends on your exact Voluson E6 configuration and connector type.
Commonly used compatible GE probes (examples):
- RAB6-RS (4D convex volume probe)
- RIC5-9-RS (4D endocavitary volume probe)
- IC5-9-D / IC5-9-RS (endocavitary probe)
- C1-5-D / C1-6-D (curved array, abdominal/OB)
- ML6-15-D (linear array, small parts/vascular)
- 9L-D (linear array, vascular/small parts)
- 3SC-RS / 4C-RS (cardiac sector, if enabled)
Important: Probe models vary by region and software options. If you want, paste the probe model number(s) you plan to use, and I will format a final confirmed list for the listing.
