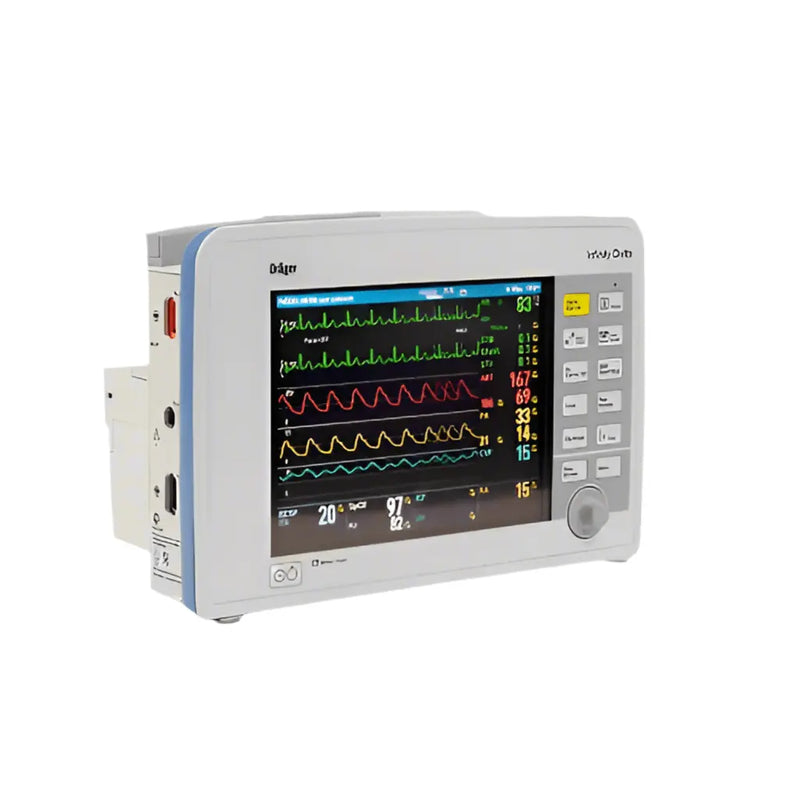

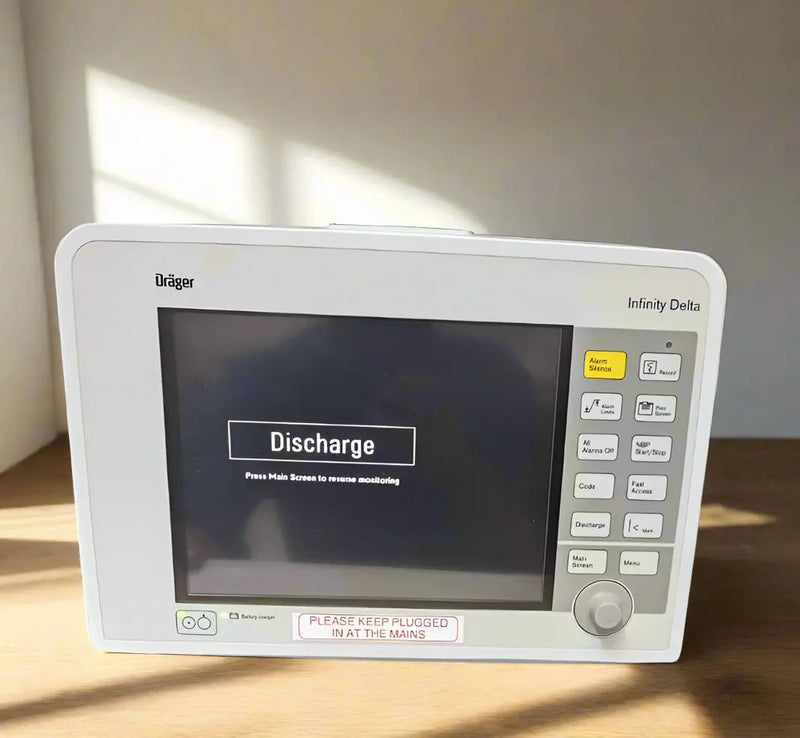

Draeger Infinity Delta Patient Monitor
The Draeger Infinity Delta Patient Monitor is a state-of-the-art monitoring solution designed to deliver accurate and real-time vital signs monitoring for patients in critical care environments. With its advanced technology, this monitor offers reliable performance, featuring multi-parameter capabilities, easy-to-read displays, and seamless integration with hospital systems. Ideal for use in ICUs, emergency rooms, and other high-stakes medical settings, the Draeger Infinity Delta is an essential tool for continuous patient monitoring.
Key Features
- Multi-Parameter Monitoring: Tracks vital signs such as ECG, SpO2, blood pressure, temperature, and more.
- High-Resolution Display: Provides clear, easily readable data for quick decision-making.
- Wireless Connectivity: Seamless integration with hospital networks and other monitoring devices.
- Compact and Portable: Designed for easy transport and flexible use across various clinical settings.
- Advanced Alarm System: Alerts medical staff to any significant changes in patient condition.
Benefits
- Improves patient outcomes with precise, real-time monitoring.
- Reduces response times with instant alerts and clear data.
- Enhances clinical workflow with smooth integration into existing systems.
- 10.4 inch TFT color LCD Display
- 5 standard channels, 6 and 8 optimal channels
- 24 hours of trending data storage
- Can be a standalone monitor or it can be connected to the Infinity Network
- Can be either wired or wireless
- Customizable to the hospital or to the individual patient’s needs
- Pick-and-go technology allows the monitor to stay with the patient from the bedside to transport
- Can be used on all patients from Neonatal, pediatric, and adult
Dimensions
- Height: 10.0 in (25.3 cm)
- Width: 14.4 in (36.5 cm)
- Depth: 7.5 in (19 cm)
- Weight: 12.7 lbs (5.8 kg) (Without external battery)
Display
- Type: Thin Film Transistor-Liquid Crystal Display Active Matrix (TFT-LCD)
- Size (Diagonal): 10.4 in (26.4 cm)
- Resolution: 640 x 480 Pixels
- Channels: 5 Standard, 6, and 8 Optional
- Viewing Area: 8.3” x 6.2” (21.1 x 15.8 cm)
Battery
- Type: Rechargeable Lithium-ion
- Capacity: 180 minutes
- Charging Time: 6.5 h
ECG
- Displays up to 12 leads
- Heart Rate Range: 15 to 300 bpm
- Accuracy: ±2 bpm or ±1% (whichever is greater)
Respiration
- Measuring Method: Impedance pneumography
- Measuring Range: 0 to 155 breaths per min
- Accuracy: ±1 breath/min or 2% of rate (whichever is greater)
- Apnea Detection: For neonatal and pediatric patients
SpO2
- Masimo SET, Nellcor OxiMax, Drager OxiSure
- Method: Transmission spectrophotometry
- SpO2 Measuring Range: 1 to 100%
- Pulse Measuring Range: 30 to 250 bpm
NBP (Noninvasive Blood Pressure)
- Displayed Parameters: Systolic, Mean and Diastolic pressures
- Measuring Method: Oscillometric utilizing step deflation
- Modes of Operation: Manual (single measurement); Continuous (5 minutes) and Interval
- Interval Times: 1, 2, 2.5, 3, 5, 10, 15, 20, 25, 30, 45, 60, 120 and 240 minutes
- Heart Rate Measuring Range: 30 to 240 bpm
IBP (Invasive Blood Pressure)
- Displays up to 8 pressures
- Measuring Method: Resistive strain gauge transducer
- Display Resolution: 1 mmHg
- Measuring Range: -50 to 400 mmHg (after zeroing)
- Frequency Ranges: DC to 8 Hz, DC to 16 Hz, or DC to 32 Hz (user-selectable)
- Zero Balance Range: ± 200 mmHg
Electrical
- Input Voltage: 11 to 15 V DC
- Power Consumption: =70 Watts (fully loaded)
- Patient Leakage Current: =10 mA
- Protection Class: Internally powered (per IEC 60601-1) and used with specified Class 1 power supplies.
- Power Requirements: 100 to 240 V AC, 3 A
- Frequency: 50 to 60 Hz
Operating Specifications
- Temperature: 50° F to 104° F (10° C to 40° C)
- Humidity: 20% to 90%, non-condensing
- Atmospheric Pressure: 525 to 795 mmHg (70 to 106 kPa)
Storage Specifications
- Temperature: -4° F to 104° F (-20° C to 40° C)
- Humidity: 10% to 95%, non-condensing (With packaging)
- Atmospheric Pressure: 375 to 795 mmHg (50 to 106 kPa)
