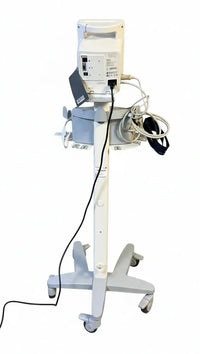

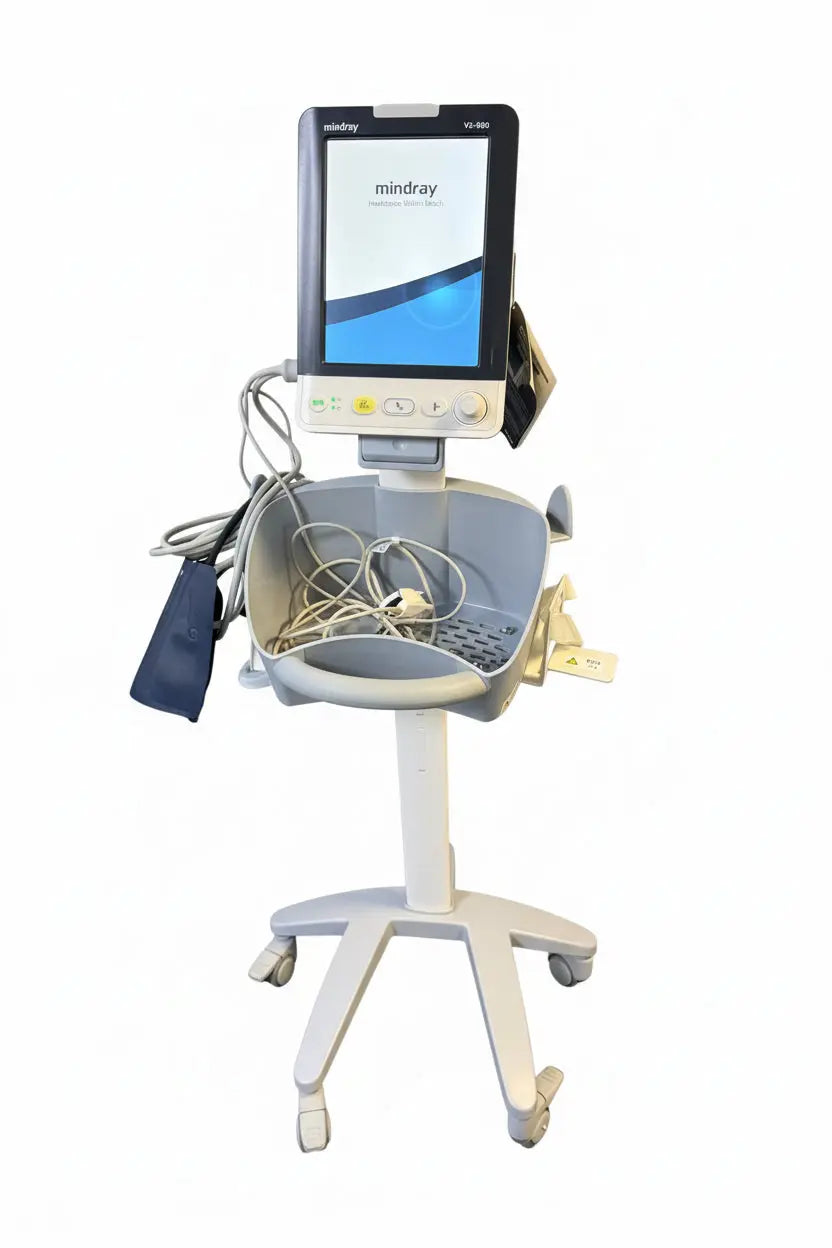

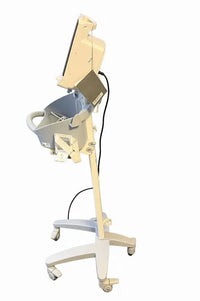

Mindray VS-900 Vital Signs Patient Monitor with accessories on Rollstand

Name: Mindray VS-900 Vital Signs Patient Monitor with accessories on Rollstand
Brand: Mindray
SKU: MIP214301
Price: 249.99 GBP
Availability: OutOfStock

MindrayArtikelnummer MIP214301

Lieber ein Angebot?

Preis

£249⁹⁹

Price shown excludes VAT.

Menge

Stückpreis£249.99

Gesamt£249.99

Angebot anfordern

Wichtige Merkmale

Marke: Mindray
Kategorie: Patient Monitor
Artikelnummer: MIP214301

Mindray VS-900 Vital Signs Patient Monitor on Rollstand with Accessories, Pre-owned

The Mindray VS-900 is a vital signs monitor built for the places where patients come and go rather than stay: triage, outpatients, day surgery recovery, pre-assessment and the ward round. Non invasive blood pressure, pulse oximetry, temperature and pulse rate on an 8.4 inch colour screen, on a rollstand so the whole thing follows the clinician down the bay instead of being carried.

Blood pressure is where this monitor earns its place. Alongside manual and automatic cycling it offers STAT and a programmable mode, so a nurse can set an interval pattern for the patient in front of them rather than accept a fixed cycle. The adult range runs from 25 to 290 mmHg systolic, paediatric and neonatal modes narrow the range and shorten the maximum measurement time to 90 seconds on a neonate, and the cuff is driven by an oscillometric pump with a mean error held inside 5 mmHg.

Where the VS-900 differs from a simple spot check device is the record and the route out of it. It holds 5000 groups of trend data, outputs in HL7, and connects by wireless or wired network through Mindray eGateway and VitalsLinks into an electronic record. A barcode scanner option reads patient wristbands including 2D and RFID, and an integral thermal recorder prints at the bedside. Taken together that is what turns a set of numbers into an observation chart entry without a clipboard in between.

The monitor is built to order rather than in one fixed form. Pulse oximetry comes as Mindray, Masimo or Nellcor. Temperature comes as the Mindray SmarTemp predictive probe, the Genius 2 tympanic thermometer or an infrared unit. Carbon dioxide is an option, as are the touchscreen, the printer and the barcode scanner. The configuration of this particular unit is confirmed in writing before dispatch rather than assumed from the model name, because two VS-900 monitors side by side can be specified very differently.

References

Brand	Mindray
Model	VS-900
Device type	Vital signs monitor
Core parameters	NIBP, SpO2, temperature and pulse rate
Mounting	Rollstand, supplied
Patient categories	Adult, paediatric and neonatal
Condition	Pre-owned

Features

8.4 inch colour TFT screen at 800 by 600 pixels, with touchscreen offered as an option on the platform.
Four blood pressure modes: manual, automatic, STAT and programmable interval.
Adult, paediatric and neonatal modes, with the range and the maximum measurement time set to suit each.
Three level audible alarms with red flashing, yellow flashing and yellow steady visual indication.
5000 groups of trend data held on the monitor.
HL7 output, with wireless and wired networking into an electronic record through Mindray eGateway and VitalsLinks.
Barcode scanner option reading 1D, 2D and RFID, for patient registration from a wristband.
Integral thermal recorder option, printing at 25 mm per second.
Rechargeable lithium ion battery, at least 3 hours on the 2600 mAh pack or 8 hours on the 4500 mAh pack.
Defibrillation protected Type CF applied parts on NIBP, SpO2 and temperature.

Points to note before ordering

Configuration is built to order. The pulse oximetry brand, the temperature method, and whether carbon dioxide, touchscreen, printer or barcode scanner are fitted all vary between units. Elarix Medical confirms the configuration of this monitor in writing, with the model and serial number, before dispatch.
Spot check and interval monitoring. The VS-900 has no ECG and no invasive pressure. It is a vital signs monitor, not a continuous bedside monitor.
Accessories. The accessories supplied with this unit are confirmed in writing before dispatch. Probe covers, carbon dioxide sampling lines and printer paper are consumables and are not included.
Battery. The lithium ion pack is pre-owned and holds less than new. Elarix Medical states the charge it holds before dispatch.
Pre-owned condition. To be electrically safety tested, function checked and the blood pressure channel verified against a calibrated reference before clinical use. Elarix Medical will photograph the actual unit on request.

Technische Daten

Brand: Mindray
Model: VS-900
Condition: Pre-owned
Configuration of this unit: Confirmed in writing before dispatch
Display: 8.4 inch, about 213 mm, colour TFT LCD at 800 by 600 pixels, touchscreen optional
Waveforms: Up to two, SpO2 and carbon dioxide
Patient categories: Adult, paediatric and neonatal
NIBP method: Oscillometric
NIBP modes: Manual, automatic, STAT and programmable
NIBP range, adult: 25 to 290 mmHg systolic, 10 to 250 mmHg diastolic
NIBP range, paediatric: 25 to 240 mmHg systolic, 10 to 200 mmHg diastolic
NIBP range, neonatal: 25 to 140 mmHg systolic, 10 to 115 mmHg diastolic
NIBP accuracy: Mean error within 5 mmHg, standard deviation within 8 mmHg
NIBP maximum measurement time: 180 seconds adult and paediatric, 90 seconds neonatal
SpO2 options on the platform: Mindray, Masimo or Nellcor
SpO2 range: 0 to 100 per cent on Mindray and Nellcor, 1 to 100 per cent on Masimo, resolution 1 per cent
SpO2 accuracy, 70 to 100 per cent: Within 2 per cent adult and paediatric, within 3 per cent neonatal
Temperature options on the platform: Mindray SmarTemp 25 to 44 degrees Celsius, Genius 2 tympanic 33 to 42 degrees Celsius, infrared units from 16 to 43 degrees Celsius depending on model
Pulse rate: 20 to 300 bpm, accuracy within 3 bpm, from SpO2 or NIBP
Carbon dioxide option: 0 to 150 mmHg, response time within 5 seconds at 50 ml per minute, to ISO 80601-2-55
Alarms: Three level audible, with red flashing, yellow flashing and yellow steady visual indication
Trend storage: 5000 groups
Data output: HL7, through Mindray eGateway and VitalsLinks
Network: Wireless to IEEE 802.11a, b, g and n, and wired Ethernet by RJ45
Barcode scanner option: 1D, 2D and RFID
Printer option: Integral thermal recorder at 25 mm per second
Battery: Rechargeable lithium ion, at least 3 hours on 2600 mAh or 8 hours on 4500 mAh
Mains supply: 100 to 240 V, 50 or 60 Hz
Dimensions: 178 mm by 150 mm by 260 mm
Weight: Within 2.5 kg with SpO2, NIBP, recorder and battery
Ingress protection: IPX1
Applied part classification: Type CF defibrillation protected on NIBP, SpO2 and temperature, Type BF on carbon dioxide and thermometers
ECG and invasive pressure: Not available on this platform
