Philips Heartstart XL+ Defibrillator with Brand New Battery
PhilipsSKU PHD0686W02
Price
£74999£810.69Save 7%
Price shown excludes VAT.
VAT relief available on this product
Eligible customers can claim VAT relief on this product at checkout.
Price
£69999£810.69Save 13%
Price shown excludes VAT.
VAT relief available on this product
Eligible customers can claim VAT relief on this product at checkout.
Pacing With Pacing
Unit price£749.99
Total£749.99
You save£0.00
Prefer a quote?
Frequently bought together
Add the whole set in one go.
Philips Heartstart XL+ Defibrillator with Brand New Battery
£749.99
This item
Philips M3713A Adult AED Pads
£59.99
Total for the set
£0.00
Build Your Bundle
Key attributes
- Brand
- Philips
- Category
- Defibrillator
- SKU
- PHD0686W02
- Options
- 2 to choose from

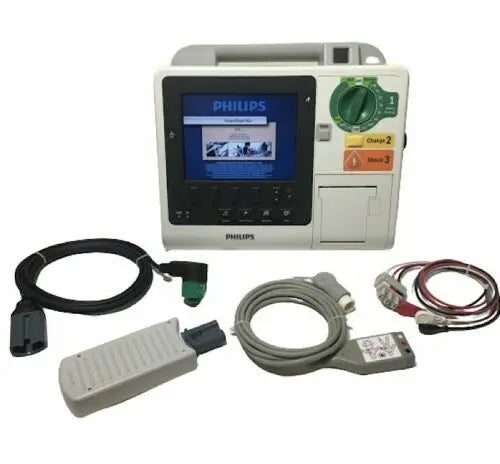

Philips HeartStart XL+ Defibrillator and Monitor, Model 861290, Pre-Owned with a Brand New Battery
The Philips HeartStart XL+ is a defibrillator and monitor built to carry a resuscitation from first responder through to advanced life support on one device. It offers four clinical modes: Monitor, Manual Defibrillation, AED and Pacer. A basic life support responder can work in AED mode under voice and text prompts, and the same unit switches to manual defibrillation and pacing when the ALS team arrives, which removes the handover to a second machine at the worst possible moment. Defibrillation uses Philips SMART Biphasic, a low energy biphasic truncated exponential waveform with impedance compensation. Supplied here with a brand new battery.
What is included
| Item | Detail | Condition |
|---|---|---|
| HeartStart XL+ unit | Philips defibrillator and monitor, model 861290 | USED |
| Battery | Rechargeable lithium-ion battery, brand new | NEW |
| ECG cable | Patient ECG lead set | USED |
| Power cable | AC mains lead for the device | USED |
| Test load | Test plug for shock delivery and operational testing | USED |
What is not included
| Item | Detail | Status |
|---|---|---|
| Multifunction electrode pads | Defibrillation, pacing and monitoring pads, in-date pads mandatory before use | SOLD SEPARATELY |
| Paddles | External paddle set | SOLD SEPARATELY |
| ECG electrodes | Single-use monitoring electrodes | SOLD SEPARATELY |
| Printer paper | Recorder paper rolls | SOLD SEPARATELY |
| SpO2, EtCO2 and NBP accessories | Sensors, cuffs and consumables where those options are fitted | SOLD SEPARATELY |
| Carry case or bag | Transport case | SOLD SEPARATELY |
| Spare battery | Second battery for rotation | SOLD SEPARATELY |
| Service and calibration | Engineer service, output verification and certification | SOLD SEPARATELY |
Mandatory before any use on a person
- Fresh, in-date multifunction electrode pads are mandatory. No pads are supplied with this unit, and pads are the delivery path for defibrillation, pacing and pads ECG.
- Check the Ready For Use indicator and run the device's operational test with the supplied test load before the unit is placed on a resuscitation trolley or in a vehicle.
- The device must be used only by clinicians trained on this model. Manual defibrillation, synchronised cardioversion and pacing are advanced interventions.
- Confirm the software version and configuration meet the receiving organisation's resuscitation policy, and record the unit on the medical device inventory before it enters service.
Checked before dispatch
- Cleaned and inspected.
- Powered up and function tested, including display, controls, audible prompts and charge cycle.
- New battery fitted and charging confirmed on AC power.
- ECG cable, power cable and test load checked for damage and secure connection.
These are in-house workshop checks. Damaged or non-working items are not dispatched. This item may require service and calibration. A full engineer service, output energy verification and certification are not included unless this listing states that the unit has been serviced. Ongoing planned maintenance and periodic electrical safety testing remain with the operating organisation.
Key features
Four clinical modes, Monitor, Manual Defibrillation, AED and Pacer, so one device covers basic and advanced life support without a mid-resuscitation change of machine.
SMART Biphasic waveform, a low energy biphasic truncated exponential with waveform parameters adjusted to patient impedance.
AED mode with voice and text prompts, guiding a basic life support responder through analysis and shock delivery.
Manual defibrillation in three steps, with energy selected by the clinician and synchronised cardioversion available.
Non-invasive transcutaneous pacing through multifunction electrode pads, in Demand or Fixed modes, where the pacing option is fitted.
Monitoring of up to three ECG waveforms at a time, acquired through a 3 or 5 lead ECG set or through the pads.
Ready For Use indicator giving a constant status update, which is what makes a defibrillator trustworthy sitting unattended on a trolley.
Automated self tests run on a schedule, with critical event and trend data stored in internal memory.
USB data export for review in Philips HeartStart Event Review Pro, supporting resuscitation audit and debrief.
Rechargeable lithium-ion battery with AC as a secondary source, charging continuously while plugged in, so the unit is ready whether docked or carried.
Brand new battery fitted, which on a used defibrillator is the single component that most often makes the difference between a working unit and a shelf ornament.
Specification
| Manufacturer | Philips |
| Model | HeartStart XL+ |
| Model number | 861290 |
| Device type | Defibrillator and monitor |
| Clinical modes | Monitor, Manual Defibrillation, AED, Pacer |
| Waveform | SMART Biphasic, biphasic truncated exponential, impedance compensated |
| Shock delivery | Multifunction electrode pads or paddles |
| Pacing | Non-invasive transcutaneous, Demand and Fixed modes, optional feature |
| ECG monitoring | Up to three waveforms, 3 or 5 lead set or pads |
| Additional monitoring | SpO2, EtCO2 and NBP available as options, configuration dependent |
| Power | Rechargeable lithium-ion battery, AC as secondary source with continuous charging |
| Readiness | Ready For Use indicator with scheduled automated tests |
| Data | Internal event and trend memory, USB export to Event Review Pro |
| Battery condition | New |
| Unit condition | Pre-owned, good |
Fitted options
Pacing, SpO2, EtCO2 and non-invasive blood pressure were optional on the HeartStart XL+ and were not fitted to every unit. Where a particular capability is essential, ask before ordering and the configuration will be confirmed from the device information screen. The unit is offered on the basis of the specification and photographs shown.
Condition and history. A pre-owned unit in good condition, cleaned and inspected, supplied with a new battery. Cosmetic marking consistent with previous clinical use should be expected. Ongoing maintenance should follow the operating organisation's medical device management policy and the duties under PUWER 1998. The photographs form part of the description and show the actual condition of the items offered.
Routine care guidance
| Component | Action | Interval |
|---|---|---|
| Ready For Use indicator | Check the indicator and investigate any change in status | Daily |
| Pads | Confirm sealed pads are in date and a spare set is held | Weekly |
| Operational test | Run the shock delivery test with the test load per local policy | Per local schedule |
| Battery | Keep on AC between uses, note any fall in run time | After each use |
| Cables and connectors | Inspect the ECG cable, mains lead and pads connector for damage | Weekly |
| Printer | Check paper stock and print quality where the recorder is used | Weekly |
| Housing and display | Wipe down per local policy, inspect for cracks and fluid ingress | Weekly |
| Service and output verification | Engineer service and delivered energy check | Per local schedule |
The above is general guidance. The manufacturer instructions for use and the operating organisation's resuscitation and medical device policies take precedence. Any unit that fails a self test or an operational check should be taken out of service immediately and replaced on the trolley by a working device.
Shipping and returns
UK Mainland
- Light items (0–30 kg): Orders placed before 1 pm, Monday to Friday, are dispatched the same working day from our Leeds warehouse.Deliveries are made Monday to Saturday.No Sunday deliveries.
- Heavy & bulky items: Delivery usually takes 2–4 working days.
UK Islands & Remote Areas
- Light items (0–30 kg): Standard delivery usually takes 1–3 working days.
- Heavy & bulky items: Delivery usually takes 5–10 working days.
Europe, USA & Canada
- Light items (0–30 kg):Delivery typically takes 3-5 working days.
- Heavy & bulky items: Delivery usually takes 10–21 working days.
Other International Destinations
- Light items (0–30 kg): Delivery usually takes 5–7 working days.
- Heavy & bulky items: Delivery usually takes 10–21 working days.
Customs and duties
Orders shipped outside the United Kingdom may attract import duty and local tax, which are charged by the destination country and are the buyer's responsibility.
Delivery estimate
Returns
SelfiMed offers a 30-day change-of-mind return policy on eligible items. To request a return, please contact us within 30 days of delivery. Items returned under this policy must be in the same condition as received and suitable for resale.
Please note that brand new items must remain unopened, unused and in their original packaging to be eligible for return. Once a new item has been opened or used, it may no longer qualify for return as new, and any accepted return may be subject to restocking fees.
For hygiene reasons, opened CPAP masks, CPAP parts and CPAP accessories, including tubing, filters and humidifier chambers, cannot be returned.
Return shipping costs are the responsibility of the customer.
This does not affect your statutory rights.
Refund
Refunds are issued to the original payment method once the returned item reaches us and has been checked, normally within five working days.
Faulty items are refunded in full, including the delivery you paid.
Information on this page is provided for guidance and does not replace advice from a qualified clinician. Always read the manufacturer's instructions before use, and check that a device is suitable for the patient and the prescribed therapy.
Specifications and compatibility are given in good faith and can change without notice.
