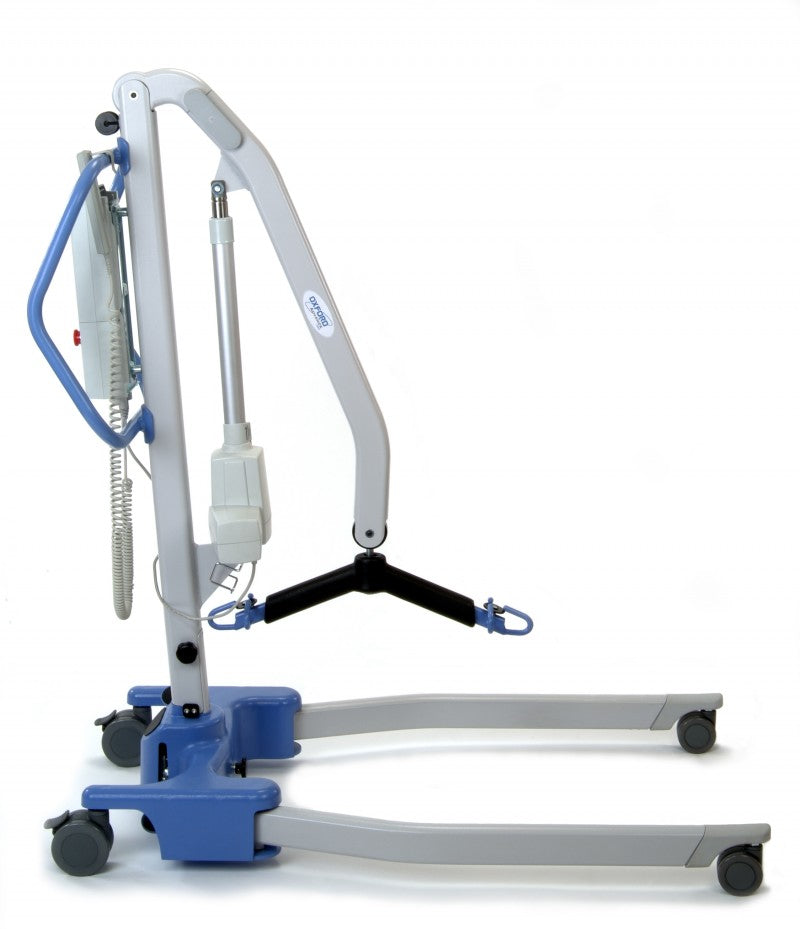

The Oxford Presence Patient Hoist is a powered mobile hoist designed for full patient transfers in clinical and home care settings. Like all load-bearing equipment, it has a finite service life. Knowing when to replace it, and what signs indicate it is no longer fit for service, is a practical safety obligation for any organisation or carer operating one.

Regulatory Framework for Hoist Inspection and Replacement

LOLER 1998 and Thorough Examination

Under the Lifting Operations and Lifting Equipment Regulations 1998 (LOLER), any hoist used to lift people must be thoroughly examined by a competent person at least every six months. This thorough examination is distinct from routine in-house checks. It must be carried out by a qualified engineer or inspector, and a written report must be issued.

If the thorough examination report identifies a defect that poses an imminent risk, the equipment must be taken out of service immediately. The report may also set a future date by which remedial work must be completed or the equipment withdrawn.

PUWER and Ongoing Maintenance

The Provision and Use of Work Equipment Regulations 1998 (PUWER) require that work equipment is maintained in a safe condition. For the Oxford Presence Patient Hoist, this means following the manufacturer's recommended service intervals and acting on any faults identified during routine checks or formal inspection.

Neither LOLER nor PUWER specifies a fixed replacement age. The decision to replace is based on the condition of the equipment as assessed by a competent person, not on a calendar date alone.

Safe Working Load and Structural Integrity

The Oxford Presence Patient Hoist carries a defined safe working load (SWL). Any structural damage, deformation or corrosion that could compromise the rated SWL must be treated as a withdrawal trigger. The lowest SWL across the complete system, including the sling, governs what the system may safely lift.

Oxford Presence Patient Hoist £599.99 Buy nowView product

Physical Signs That Indicate Replacement Is Needed

Structural and Frame Defects

Inspect the frame, boom and base legs at every use and formally at each maintenance interval. The following findings require the hoist to be removed from service pending a competent person assessment:

• Visible cracks or fractures, particularly at weld points and pivot joints
• Permanent deformation of the boom or base, which indicates the structure has been overloaded
• Severe corrosion or pitting, especially on structural tubes or the mast
• Loose or missing fasteners, including bolts, pins and locking clips
• Damaged or worn castors, which affect stability and manoeuvrability on clinical floors

Actuator and Drive System Faults

The powered lift actuator on the Oxford Presence Patient Hoist is central to safe operation. Signs of actuator or drive failure include the hoist failing to reach its maximum height, unexplained descent under load, unusual noise during operation or the actuator stopping mid-cycle. These faults require engineer assessment before the hoist is returned to use.

Battery performance is a related concern on battery-powered variants. A battery that no longer holds sufficient charge to complete a full lifting cycle must be replaced. Operating with a low-capacity battery increases the risk of a stall under load.

Sling Attachment and Hook Condition

The spreader bar, hooks and sling attachment points are high-wear components. Inspect for hook deformation, wear to the latch mechanism, and any cracking or elongation of attachment slots. A hook that does not latch securely must not be used. Slings are consumables and are always assessed and replaced separately from the hoist itself.

Operational Signs That Prompt Review

After a Significant Incident

Any dropping incident, collision, tip or near-miss involving the Oxford Presence Patient Hoist requires the equipment to be withdrawn from service immediately. A competent person must inspect it before it is returned. Internal damage may not be visible externally after an impact.

This obligation applies regardless of whether the hoist appears undamaged after the incident. Do not return the hoist to service on visual inspection alone following a significant event.

Repeated or Unresolved Faults

A pattern of recurring faults, including intermittent actuator stops, erratic hand-control response or repeated battery failures within a short period, suggests underlying wear or component degradation that routine repair is not resolving. In these cases, a full engineer assessment is warranted. Where the cost of repair approaches or exceeds the value of a replacement unit, replacement is usually the more practical outcome.

End of Manufacturer Support

When the manufacturer can no longer supply spare parts or technical documentation for a particular model of the Oxford Presence Patient Hoist, maintaining it in a safe and compliant condition becomes progressively more difficult. Operating an unsupported hoist increases the risk that the next thorough examination will result in a withdrawal notice.

Planned Replacement and Record Keeping

Maintenance Records and Examination Reports

A complete maintenance record strengthens the case for continued use and makes the decision to replace easier to justify and document. Records should include the dates and outcomes of every LOLER thorough examination, every engineer service visit, every reported fault and the remedial action taken, and any incident involving the hoist.

Gaps in the examination record are themselves a compliance concern. A hoist without a current LOLER thorough examination certificate must not be used to lift people.

Pre-Owned Hoists and Unknown History

When acquiring a pre-owned Oxford Presence Patient Hoist, a LOLER thorough examination by a competent person is required before the equipment is put into service in a new operating environment. Do not assume that a pre-owned hoist with an existing examination report from a previous operator is ready for immediate use. The examination must be commissioned by the new operating organisation.

Photographs and any available service history form part of the description when purchasing pre-owned lifting equipment. Ask before ordering if the examination history is unclear or undocumented.

Budgeting for Replacement

Planned replacement, based on condition assessment and examination reports rather than emergency withdrawal, allows procurement lead times to be managed. Many clinical services operate a rolling replacement schedule aligned to the LOLER inspection cycle. Where a thorough examination is due within three months and the hoist shows multiple signs of wear, initiating procurement in parallel with the next inspection is a practical approach.

Summary: Key Points for Replacement Decisions

Replacing the Oxford Presence Patient Hoist is a decision driven by condition, compliance and the outcomes of formal inspection, not by age alone. The following points summarise the practical obligations:

• LOLER thorough examination, required at least every six months for a hoist used to lift people
• Immediate withdrawal, required after any incident, structural damage finding or safety-critical actuator fault
• Competent person assessment, must be carried out before returning the hoist to service after any withdrawal
• Slings assessed separately, slings are consumables with their own inspection and replacement criteria
• Pre-owned hoists, require a new LOLER thorough examination by the receiving organisation before use
• Manufacturer support, check parts availability before committing to repair on an older unit

Where the examination report indicates a defect, or where repair costs are disproportionate, replacement is the straightforward and compliant outcome. Consult the manufacturer's technical documentation and your LOLER-competent examiner for guidance specific to your unit and operating environment.
