Edan Blood Gas and Chemistry Analyser Model i15

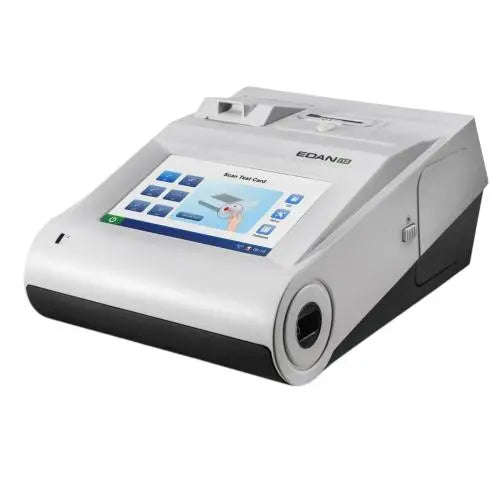

Edan i15 Blood Gas and Chemistry Analyser

The Edan i15 is a portable point-of-care blood gas and chemistry analyser delivering results within one minute of sample aspiration from a 140 µl whole blood sample. Combining blood gases, electrolytes, metabolites and haematocrit in a single multi-parameter single-use cartridge, the i15 eliminates the need for multiple separate analysers at the bedside. A 7-inch colour touchscreen, auto-sampling mechanism and built-in multimedia tutorials minimise training requirements and handling time. A 5000 mAh lithium-ion battery supports 50 continuous tests per charge, enabling use in emergency departments, intensive care units, wards, outpatient clinics and field settings without a mains connection. Up to 10,000 patient records are stored onboard, with 4 USB ports, LAN and Wi-Fi for flexible data management and optional EMR integration. A triple quality control guarantee system incorporates calibration, liquid controls and an external electronic simulator for verified result accuracy.

Key Features

• Results in 1 minute - from sample aspiration to reported result in under 60 seconds
• 140 µl sample volume - small whole blood sample from arterial line, capillary or syringe
• Multi-parameter single-use cartridge - blood gases, electrolytes, metabolites and haematocrit in one cartridge; no cross-contamination risk; room temperature storage with long shelf life
• Available cartridge configurations - BG3, BG4, BG8, BG9, BG10 and BC4 to match clinical need
• Zero maintenance - single-use cartridge system eliminates sensor cleaning, calibration fluid handling and maintenance procedures
• 7-inch colour LCD touchscreen - 800 x 480 resolution; intuitive interface with built-in multimedia tutorial videos
• Barcode and QR code scanner - acquire patient information without manual data entry
• 50 tests per charge - 5000 mAh rechargeable lithium-ion battery; portable use across clinical areas without mains power
• Triple QC guarantee - internal liquid calibration, 3 or 5 level liquid quality controls, and external electronic simulator for comprehensive result verification
• Up to 10,000 patient record storage - onboard memory with patient data management
• 4 x USB 2.0, RS232, LAN and Wi-Fi - flexible data export, EMR integration and optional data management software
• Built-in printer - onboard result printing without external hardware
• 3.65 kg portable design - lightweight and compact for bedside, ward and point-of-care use

Measured Parameters

Calculated Parameters

cH+, HCO3-act, HCO3-std, BE(ecf), BE(B), BB(B), ctCO2, sO2(est), Ca++(7.4), AnGap, tHb(est), pO2(A-a), pO2(a/A), RI, pO2/FIO2, and temperature-corrected values: cH+(T), pH(T), pCO2(T), pO2(T), pO2(A-a)(T), pO2(a/A)(T), RI(T), pO2(T)/FIO2, mOsm

Technical Specifications

Please note: Cartridge type must be selected according to the parameters required for each clinical application. Cartridges are single-use only and must be stored at room temperature within shelf-life dates. Not all cartridge configurations are available in all countries — confirm UK availability before ordering.

Download Technical Sheet in PDF
